3-way Ball Valve DN100 PN16
Details

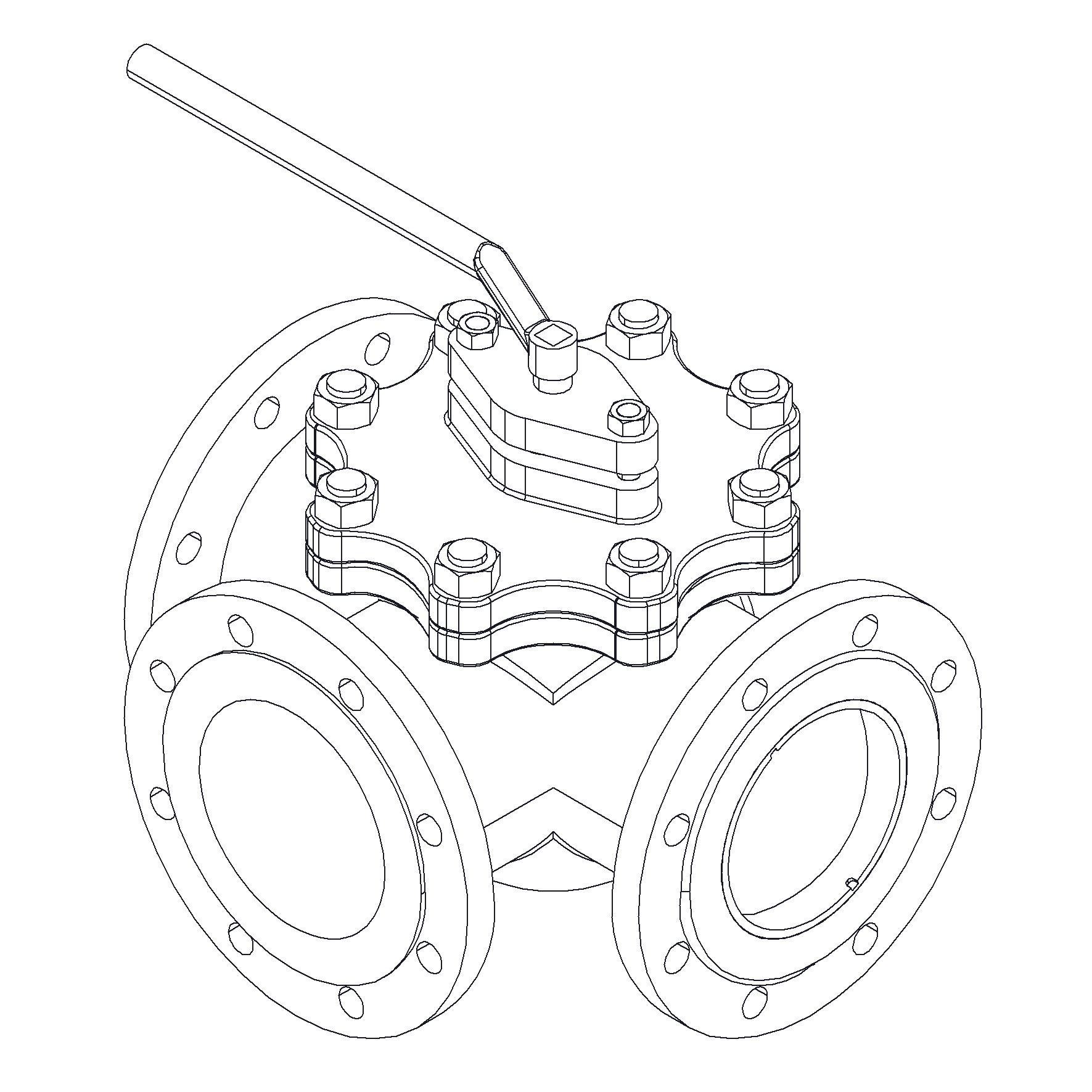

3-way, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 448162 |
| Material Body | Cast Steel |
| Remark | Connection: PN16 |
| Throughput Direction | 3-way |
| End Standard | EN 1092-1 |
| Design Code | ISO 17292 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 100 |
| Material Seat | R-PTFE |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000810 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | L-port |
| Execution | Full Bore |
Partslist and details

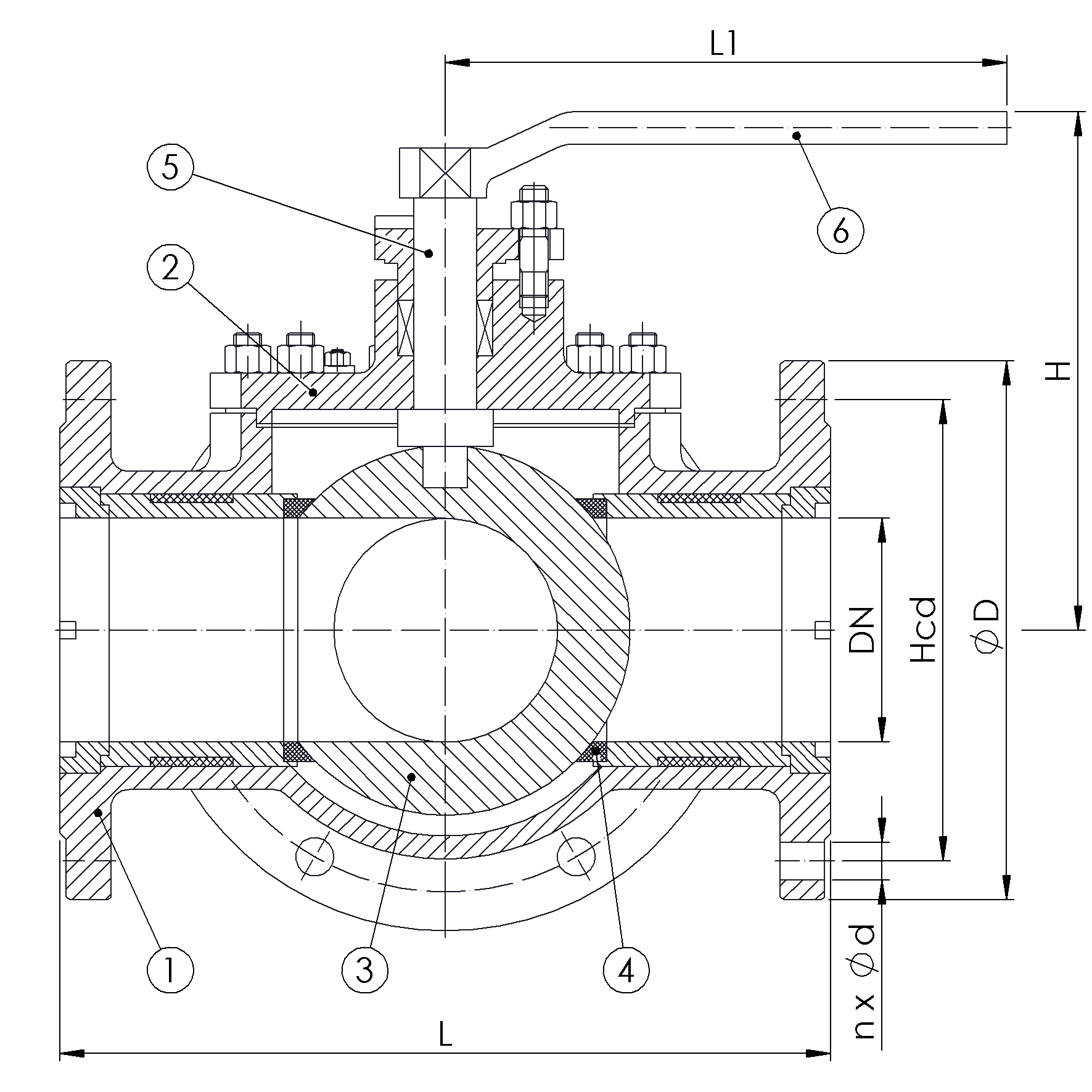

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A182-F316 |
| 4 | Seat | RPTFE | |
| 5 | Stem | Stainless Steel | ASTM A276-420 |
| 6 | Handle | Carbon Steel |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H |
|---|---|---|---|---|---|---|---|---|
| 100 | 16 | 8x18 | 180 | 220 | 320 | 51 | 500 | 225 |
