Ball Valve 1" 1200WOG
Details
Three piece, full bore, Cast Steel body ball valve with Stainless Steel ball and PTFE seat. Long butt welded ends. With non-direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 440665 |
| Material Body | Cast Steel |
| Throughput Direction | Straight |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 25 |
| Material Seat | PTFE |
| Pressure Rating | 1200WOG |
| End Type | Butt welded, long |
| Sub Category | BALL |
| Item Number | 20-00000912 |
| Category | Valve |
| Top Flange Standard | ISO 5211 - F04 non-direct |
| Execution | Full Bore |

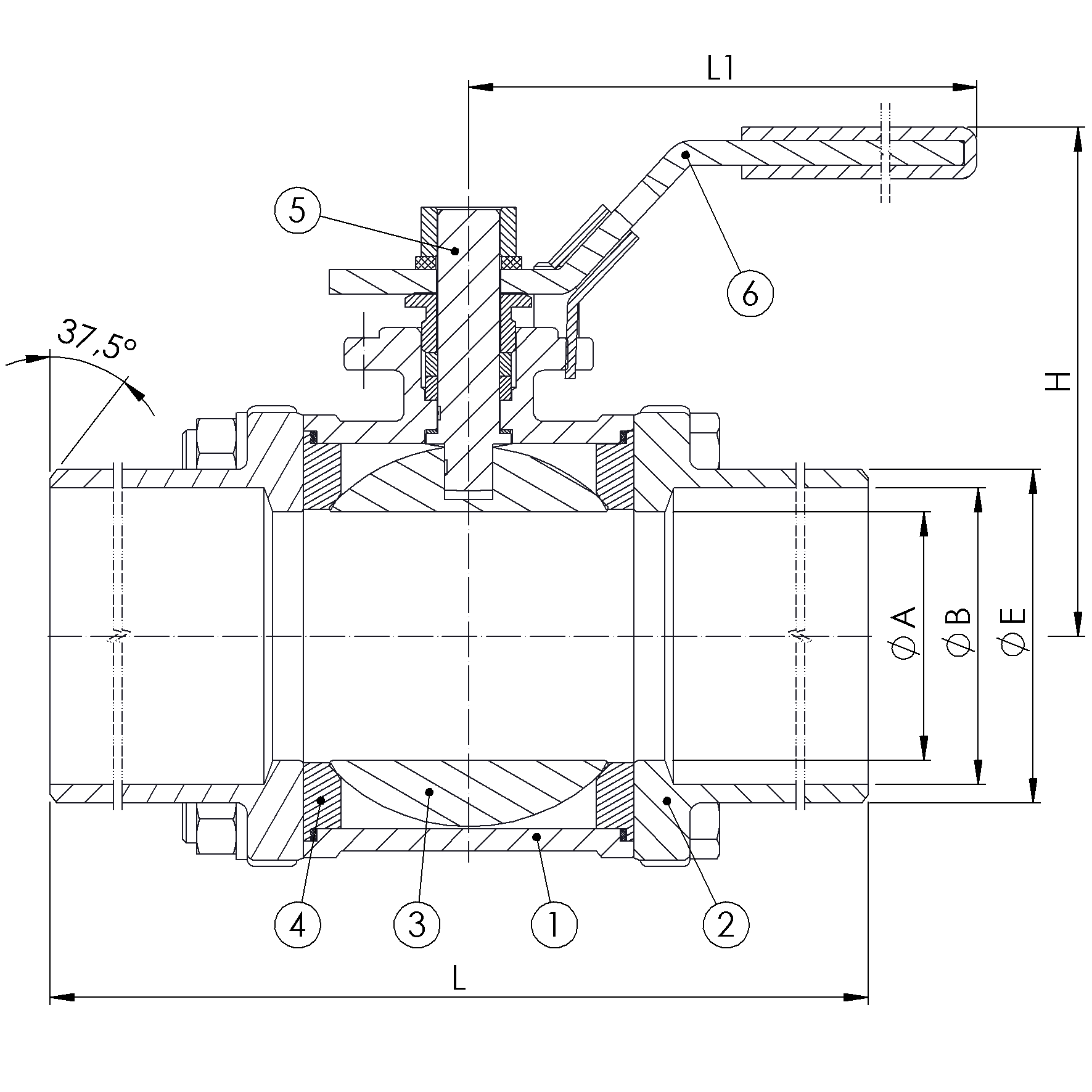

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 304 |
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Cap | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A351-CF8 |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | H | Ø A | Ø E | Ø B |
|---|---|---|---|---|---|---|---|---|
| 25 | 1200 | 245 | 1.4 | 135 | 79 | 25 | 33.5 | 28 |
