Ball Valve 1 ½" 1200WOG
Details

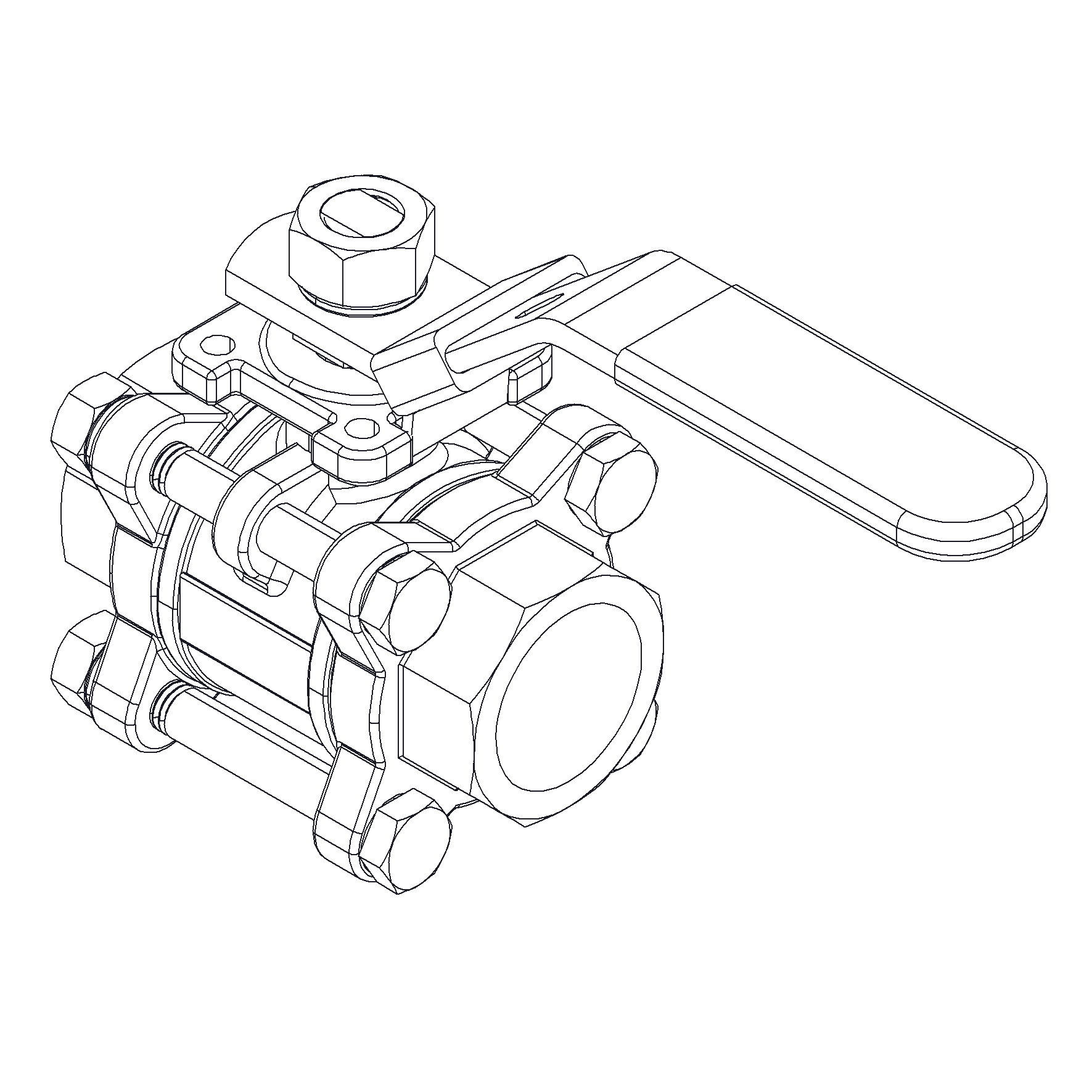

Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. BSPP female threaded ends. With non-direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 440095 |
| Material Body | Stainless Steel, 316 |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 40 |
| Material Seat | PTFE |
| Pressure Rating | 1200WOG |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000920 |
| Category | Valve |
| Top Flange Standard | ISO 5211 - F05 non-direct |
| Execution | Full Bore |
Partslist and details

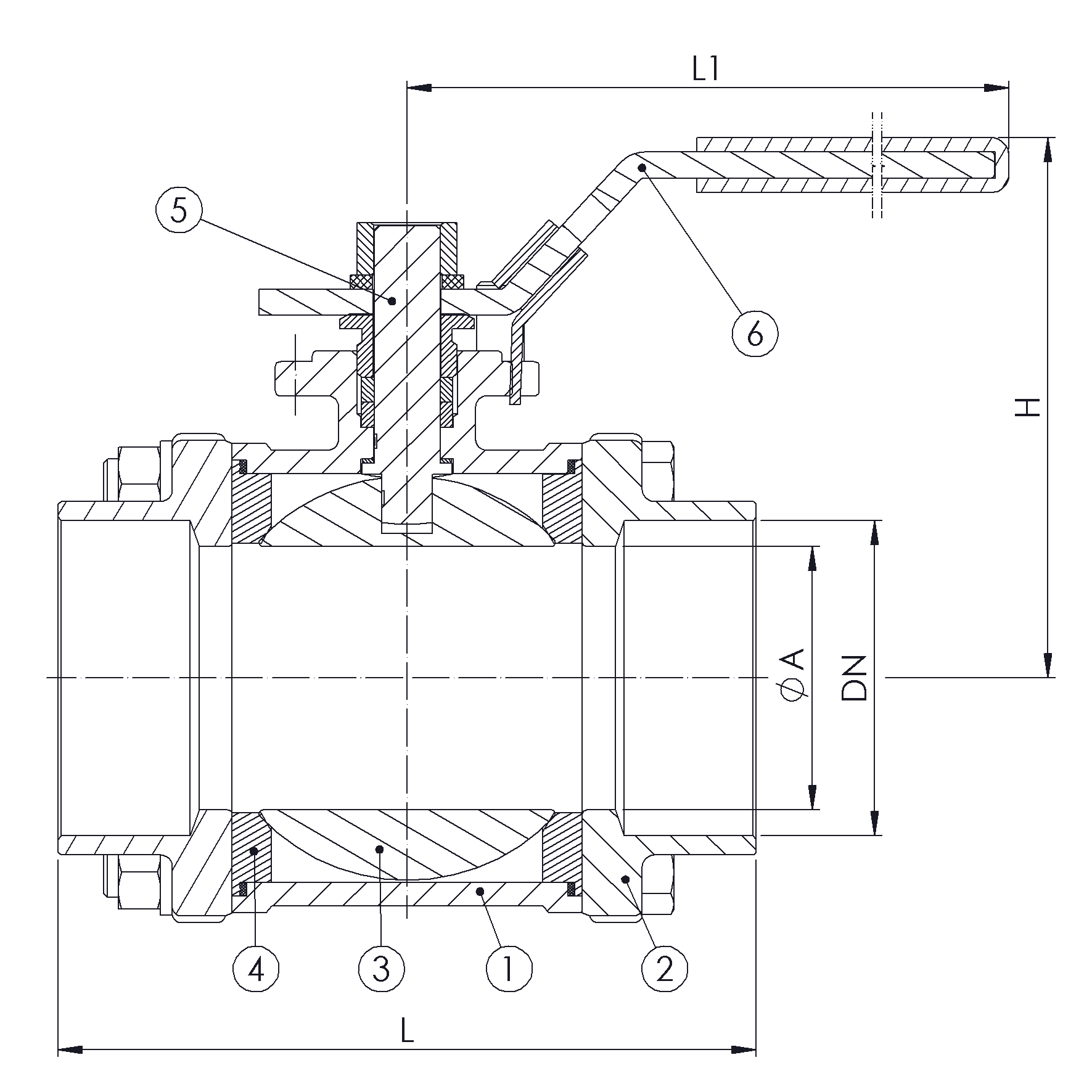

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
|---|---|---|---|---|---|---|---|
| 40 | 1200 | 115 | 2.4 | 165 | 1 1/2" | 94 | 38 |
