Ball Valve 1 ½" PN210
Details

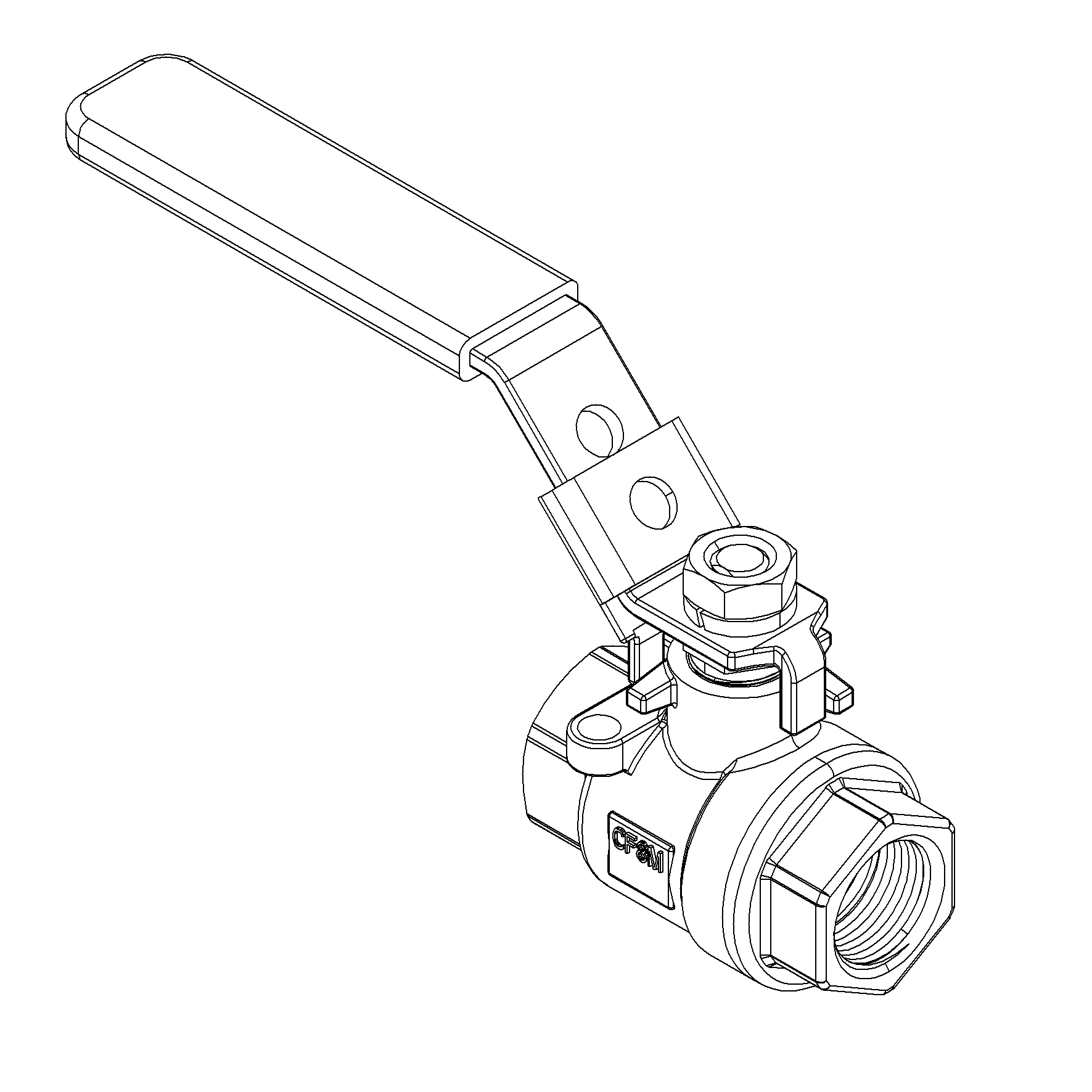

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and POM seat. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 442096 |
| Material Body | Stainless Steel, 316 |
| Throughput Direction | Straight |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 40 |
| Material Seat | POM |
| Pressure Rating | PN210 |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000205 |
| Category | Valve |
| Execution | Full Bore |

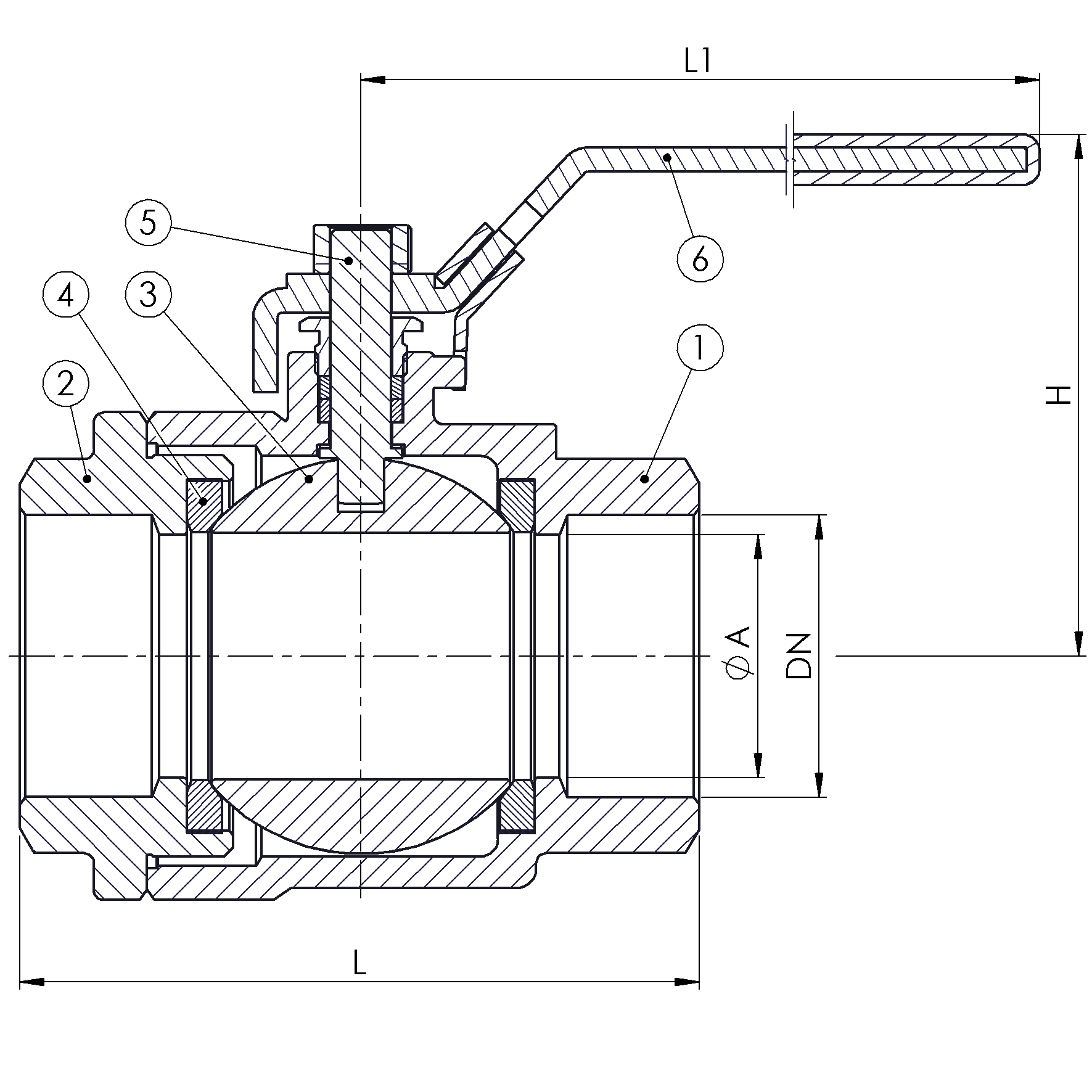

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | POM | |
| 5 | Stem | Stainless Steel | AISI 316 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
|---|---|---|---|---|---|---|---|
| 40 | 210 | 120 | 2.5 | 253 | 1 1/2" | 98,5 | 38 |
