Ball Valve ½" 1000WOG
Details

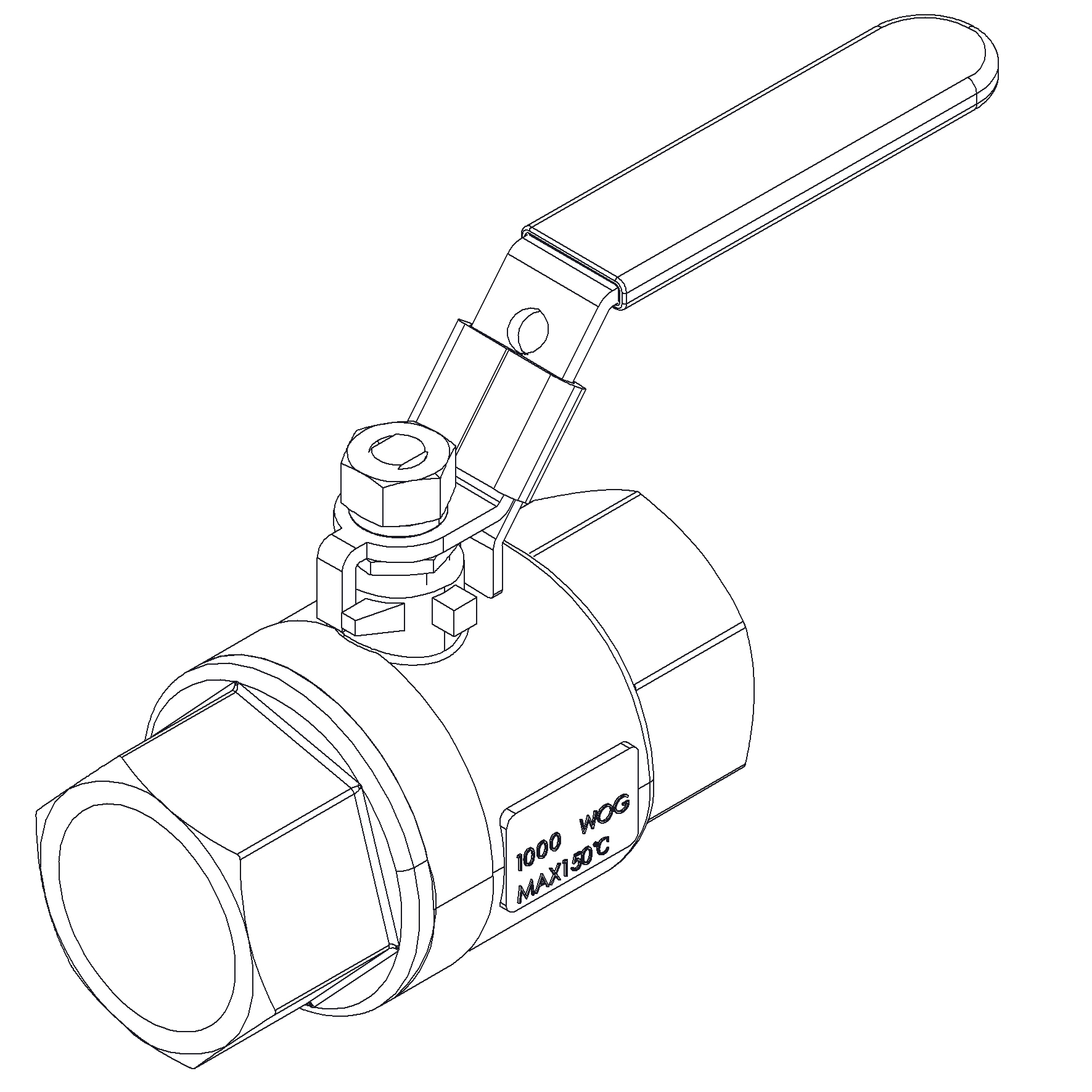

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. NPT female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 442095 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -10°C |
| Throughput Direction | Straight |
| End Standard | ASME B1.20.1 |
| Design Code | EN 12516-2 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 15 |
| Material Seat | PTFE |
| Pressure Rating | 1000WOG |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000164 |
| Category | Valve |
| Inspection Standard | API 598 |
| Execution | Full Bore |
| Max temperature | +150°C |
Partslist and details

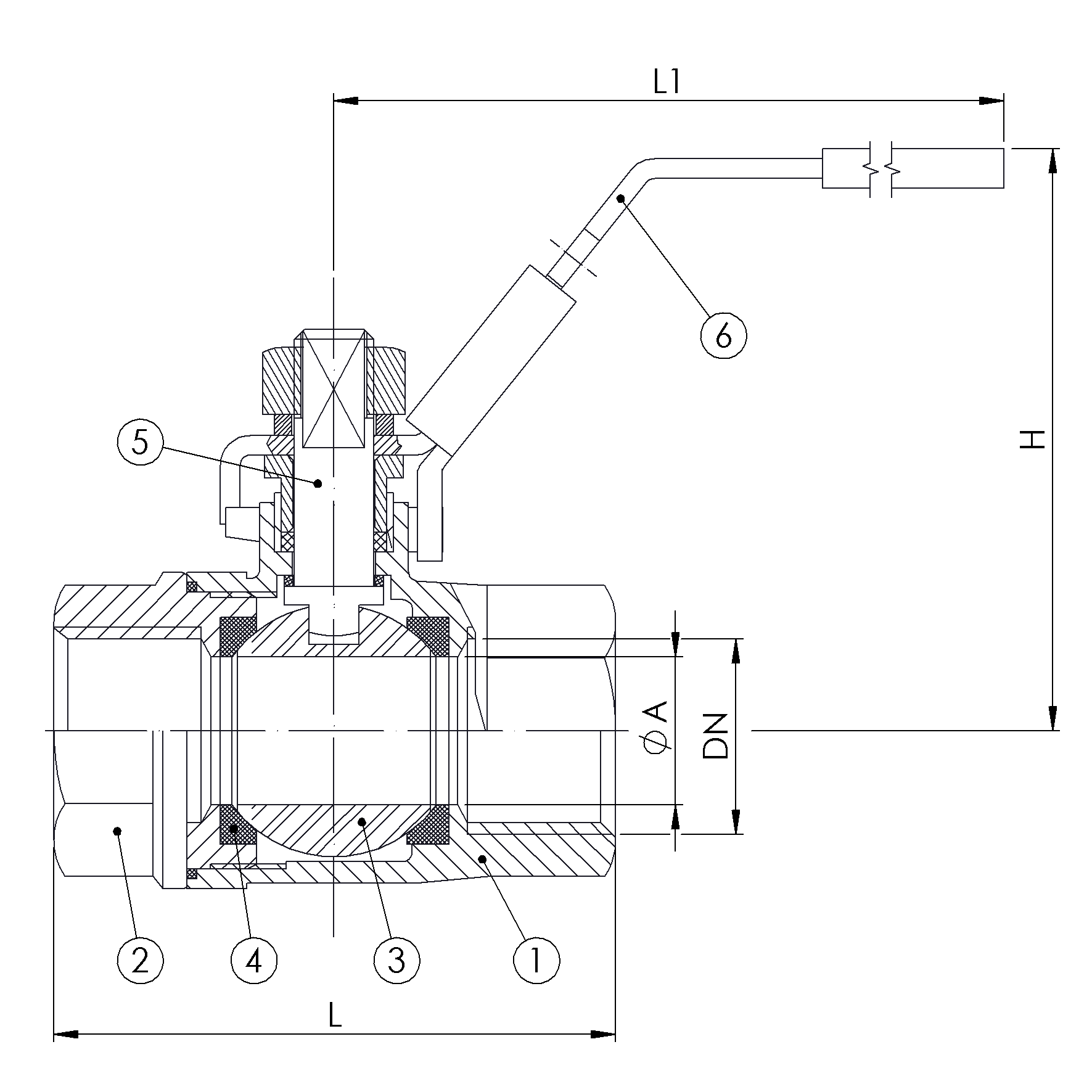

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | CF8M |
| 2 | Cap | Stainless Steel | CF8M |
| 3 | Ball | Stainless Steel | CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | 304 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | Ø A |
|---|---|---|---|---|---|---|---|
| 15 | 1000 | 57 | 0.3 | 115 | 1/2" | 58 | 15 |
