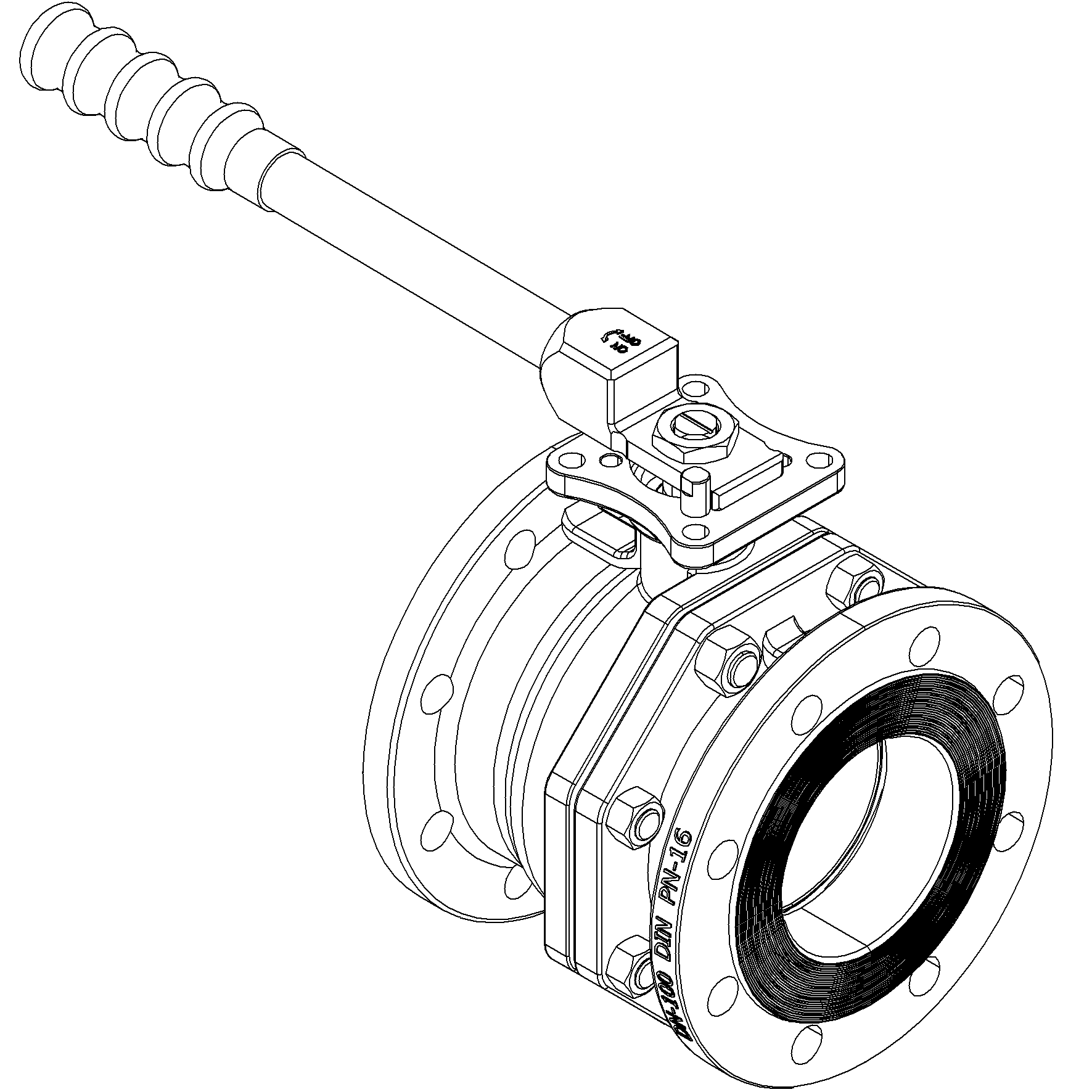

Ball Valve DN100 ANSI 150
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 445197 |
| Material Body | Stainless Steel, 316 |
| Remark | Connection: ANSI 150 |
| Throughput Direction | Straight |
| Face To Face Standard | ASME B16.10 |
| End Standard | ASME B16.5 |
| Design Code | ASME B16.34 |
| Standard | ANSI |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 100 |
| Material Seat | R-PTFE |
| Pressure Rating | ANSI 150 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000960 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F07/F10 |
| Execution | Full Bore |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | R-PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | H1 | H2 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 150 | 8x19 | 190.5 | 229 | 229 | 30 | 377.5 | 182 | 145 | 163.5 | 17 |
