Ball Valve DN15 PN40
Details

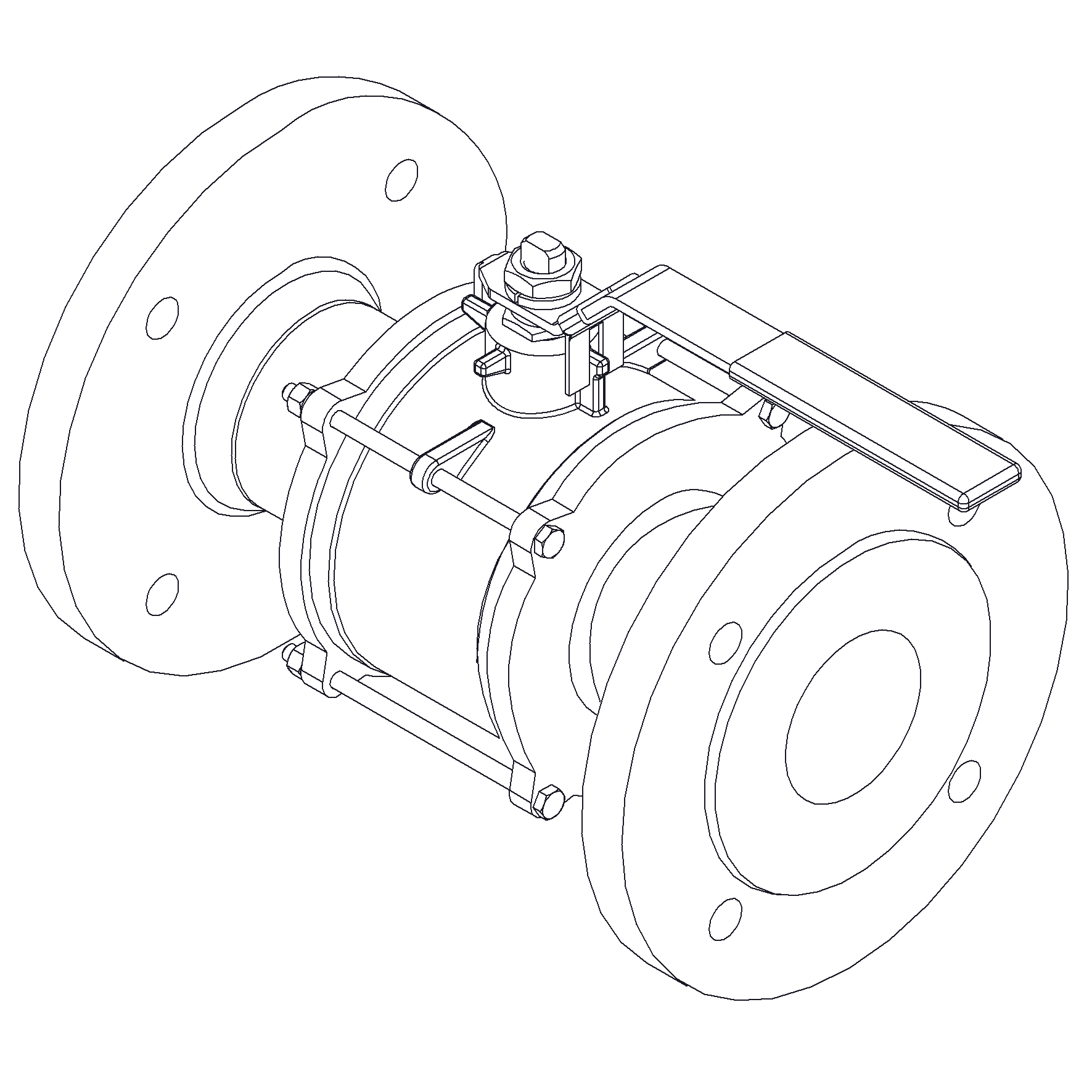

Three piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 440194 |
| Material Body | Stainless Steel, 316 |
| Remark | Connection: PN40 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 15 |
| Material Seat | PTFE |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000065 |
| Category | Valve |
| Execution | Full Bore |

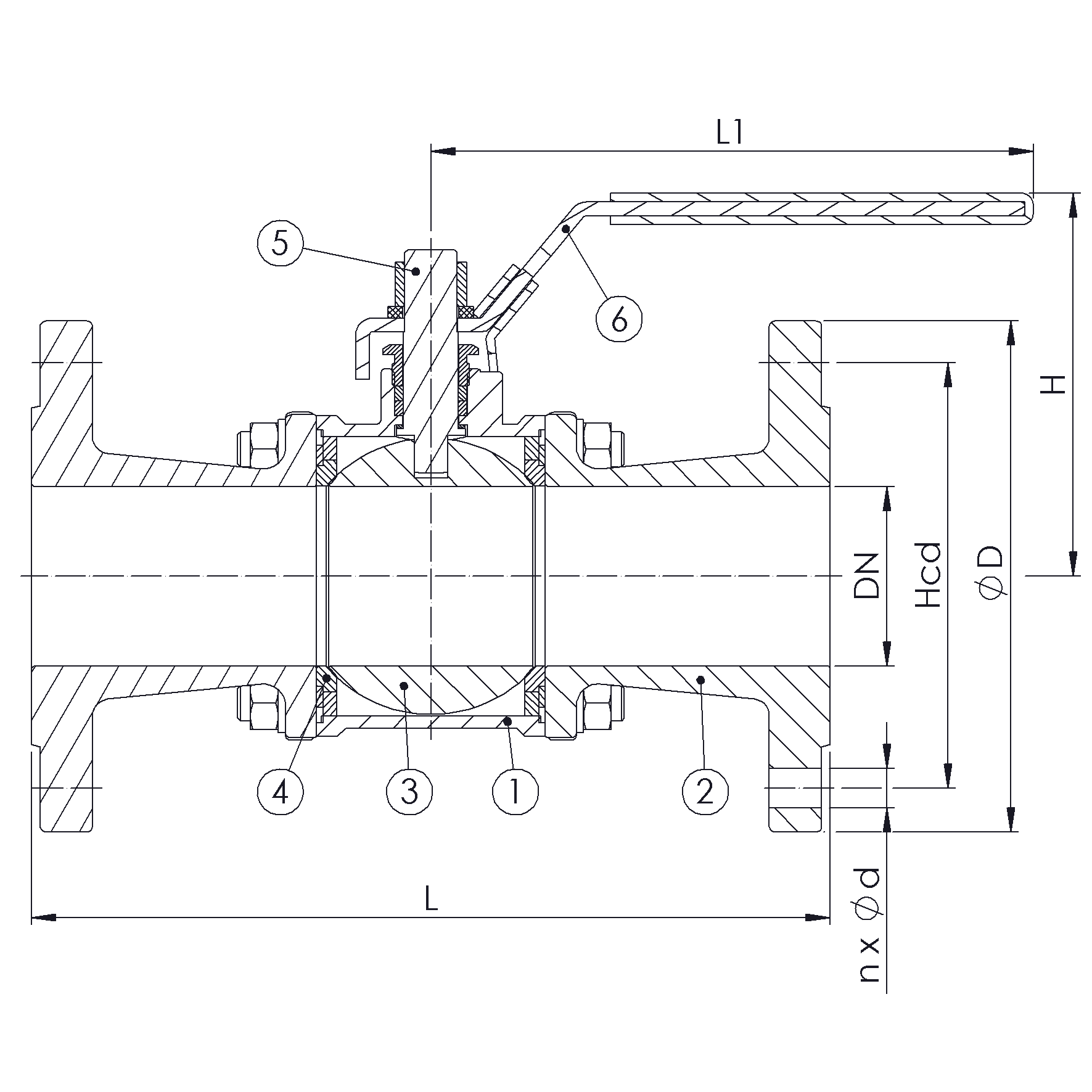

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H |
|---|---|---|---|---|---|---|---|---|
| 15 | 40 | 4x14 | 65 | 95 | 130 | 2.5 | 130 | 73,5 |
