Ball Valve DN25 PN40
Details

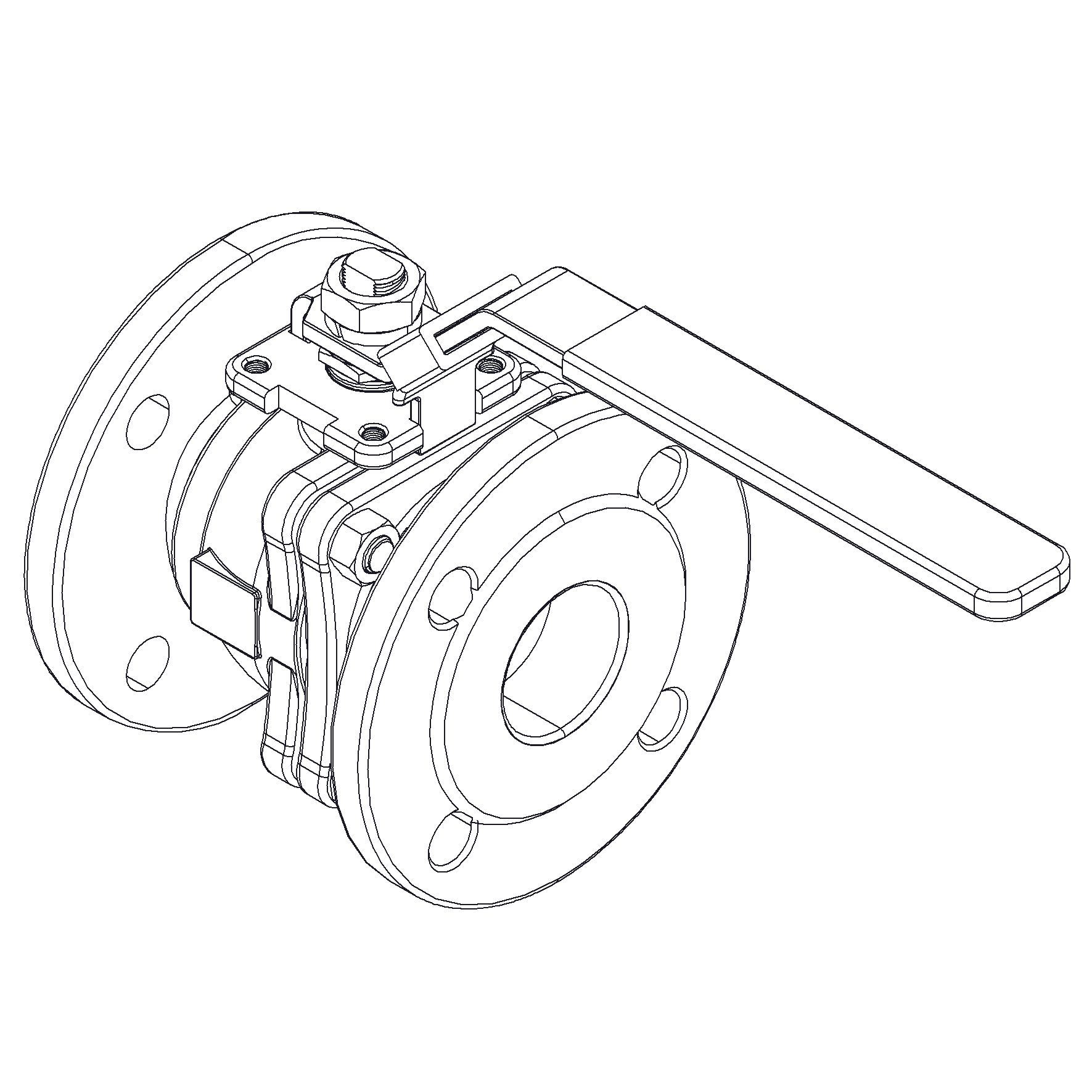

Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 445194 |
| Material Body | Stainless Steel, 316 |
| Remark | Connection: PN40 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 588, series 14 |
| End Standard | DIN 2635 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fliud, Sea water, Water |
| Size | 25 |
| Material Seat | PTFE |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000417 |
| Category | Valve |
| Inspection Standard | EN 12266 |

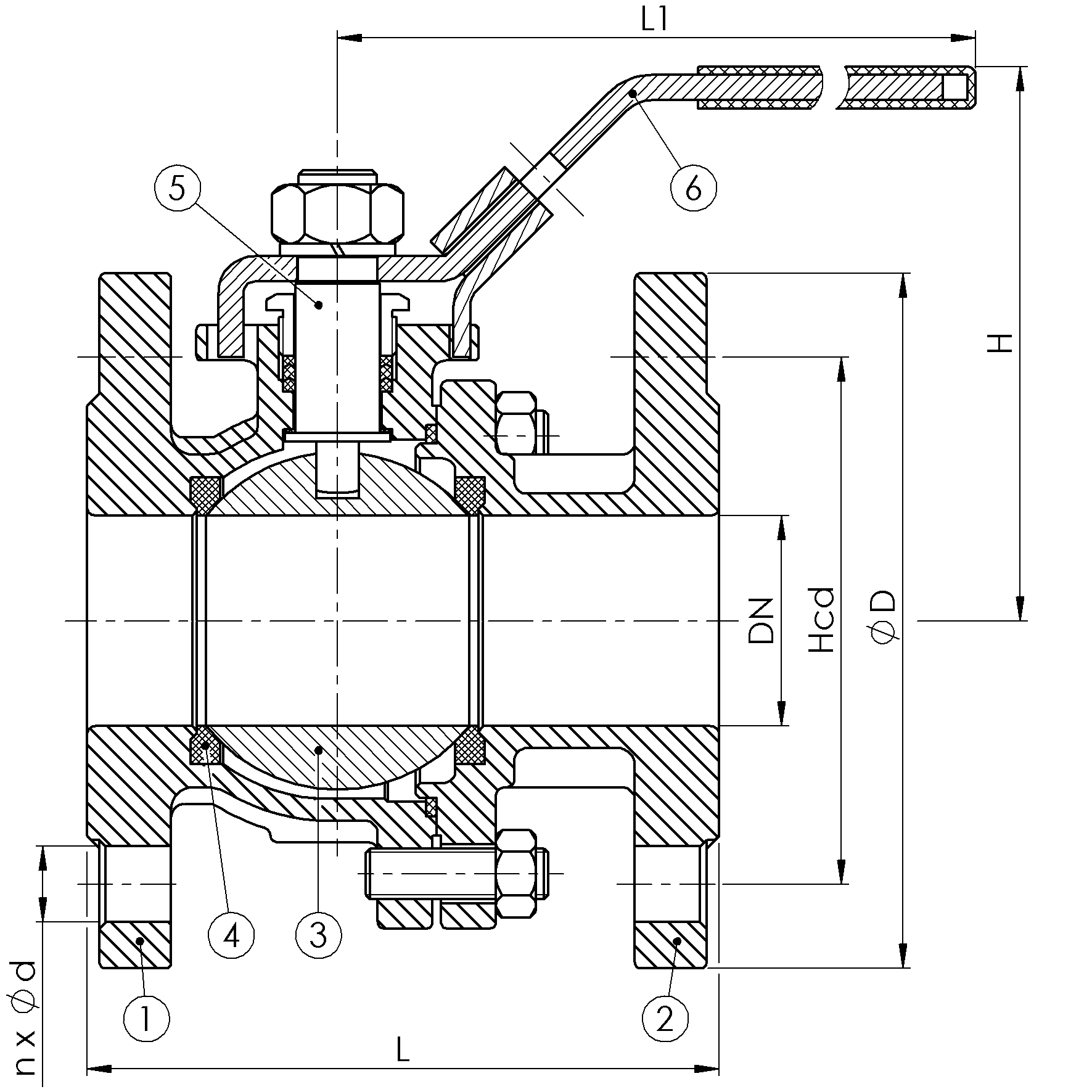

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Cap | Stainless Steel | 1.4408 |
| 3 | Ball | Stainless Steel | 1.4408 |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | SUS316 |
| 6 | Handle | Stainless Steel, Plastic Cover | SUS304 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H |
|---|---|---|---|---|---|---|---|---|
| 25 | 40 | 4x14 | 85 | 115 | 125 | 4.6 | 188 | 92 |
