Ball Valve DN50 PN16
Details

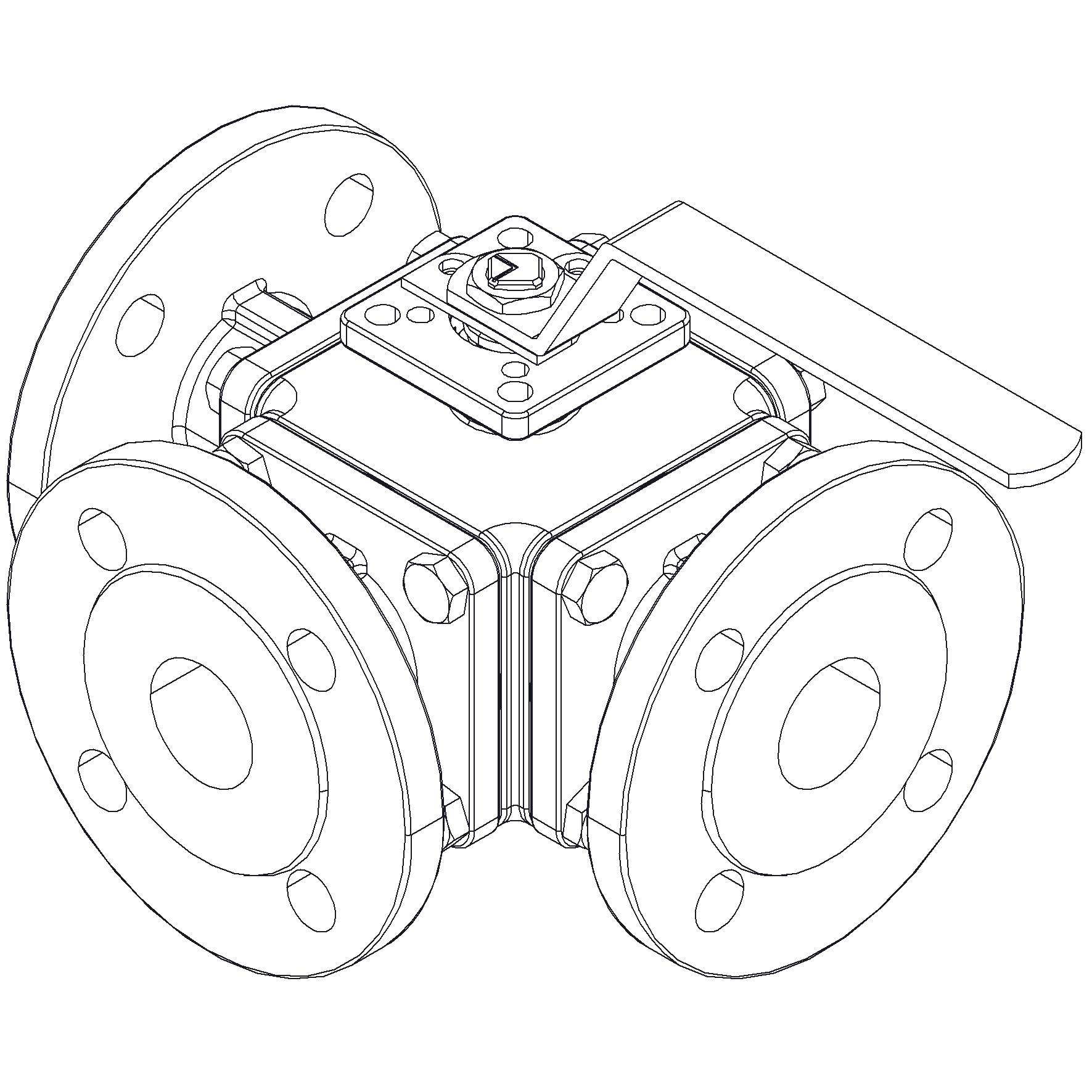

3-way, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mouting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 448192 |
| Material Body | Stainless Steel, 316 |
| Min temperature | -25°C |
| Remark | Connection: PN16 |
| Throughput Direction | 3-way |
| End Standard | DIN 2633 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 50 |
| Material Seat | PTFE |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000830 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F07/F10 |
| Variant | T-port |
| Execution | Full Bore |
| Max temperature | +230°C |
Partslist and details

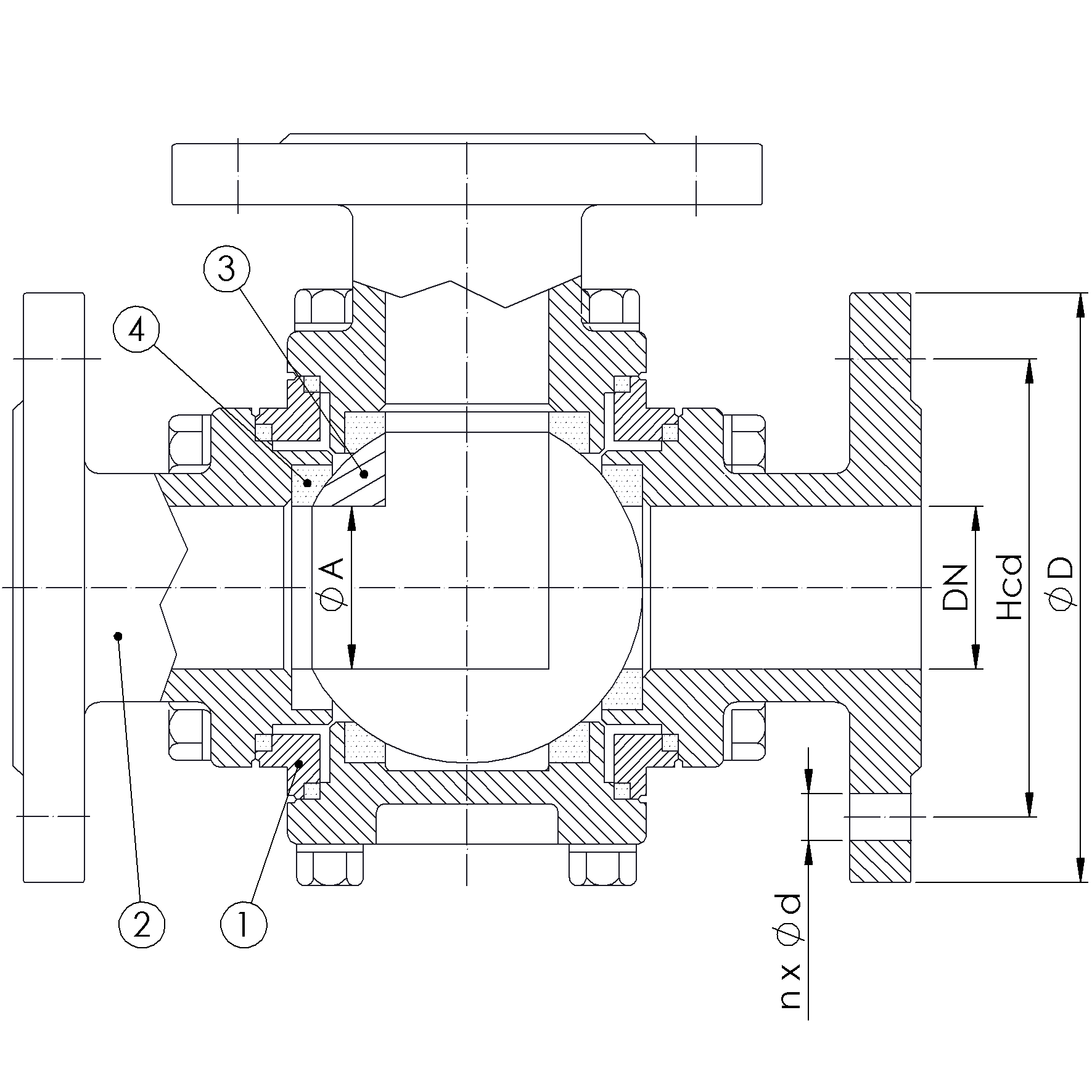

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | A351 Gr. CF8M |
| 2 | Cap | Stainless Steel | A351 Gr. CF8M |
| 3 | Ball | Stainless Steel | SS 316 |
| 4 | Seat | PTFE | |
| 5 | Stem | Stainless Steel | SS 316 |
| 6 | Handle | Stainless Steel, Vinyl Cover | SS 304 |

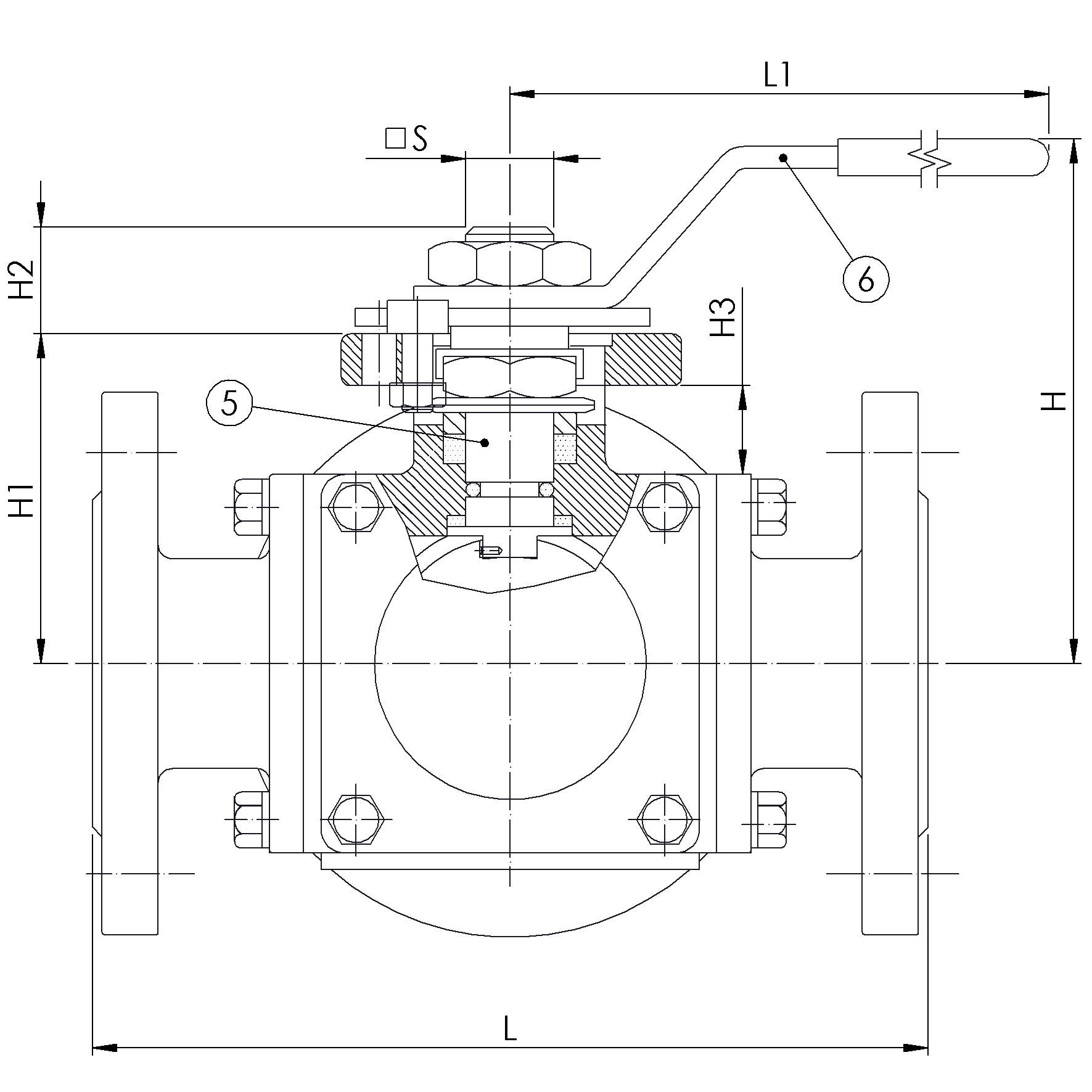

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | H1 | Ø A | H2 | S | H3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 16 | 4x18 | 125 | 165 | 273 | 23.5 | 325 | 140 | 93 | 50 | 23 | 17 | 26 |
