Ball Valve DN80 ANSI-150
Details
Two piece, full bore, Stainless Steel body ball valve with Stainless Steel ball and PTFE seat. Raised face flanges. With direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 445197 |
| Remark | Connection: ANSI 150 |
| Throughput Direction | Straight |
| Face To Face Standard | ASME B16.10 |
| End Standard | ASME B16.5 |
| Design Code | ASME B16.34 |
| Standard | ANSI |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 80 |
| Material Seat | R-PTFE |
| Pressure Rating | ANSI 150 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000959 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F07/F10 |
| Execution | Full Bore |

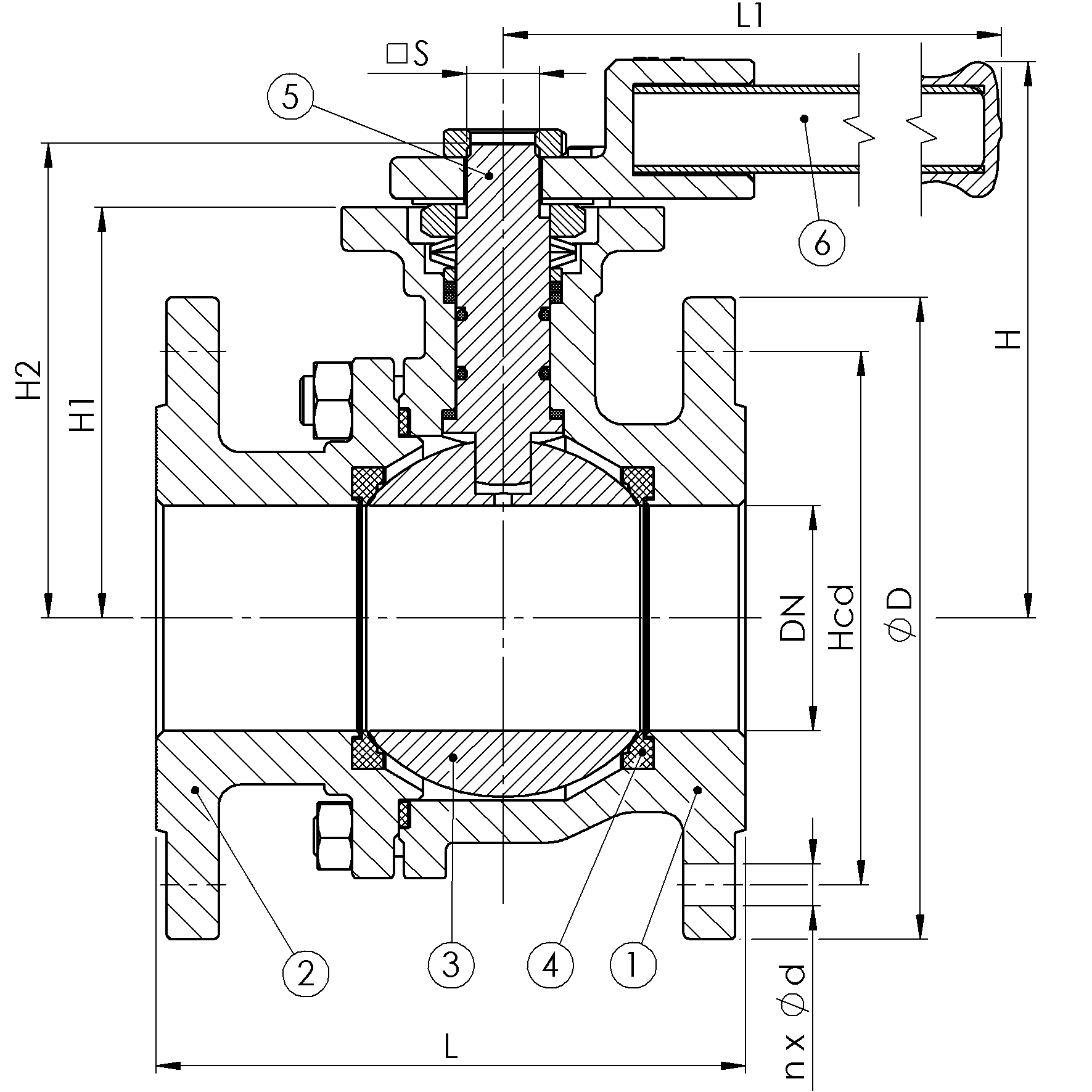

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | ASTM A351-CF8M |
| 2 | Cap | Stainless Steel | ASTM A351-CF8M |
| 3 | Ball | Stainless Steel | ASTM A351-CF8M |
| 4 | Seat | R-PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | H1 | H2 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 150 | 4x19 | 152.5 | 190.5 | 203 | 20.3 | 277.5 | 166,5 | 129.5 | 148 | 17 |
