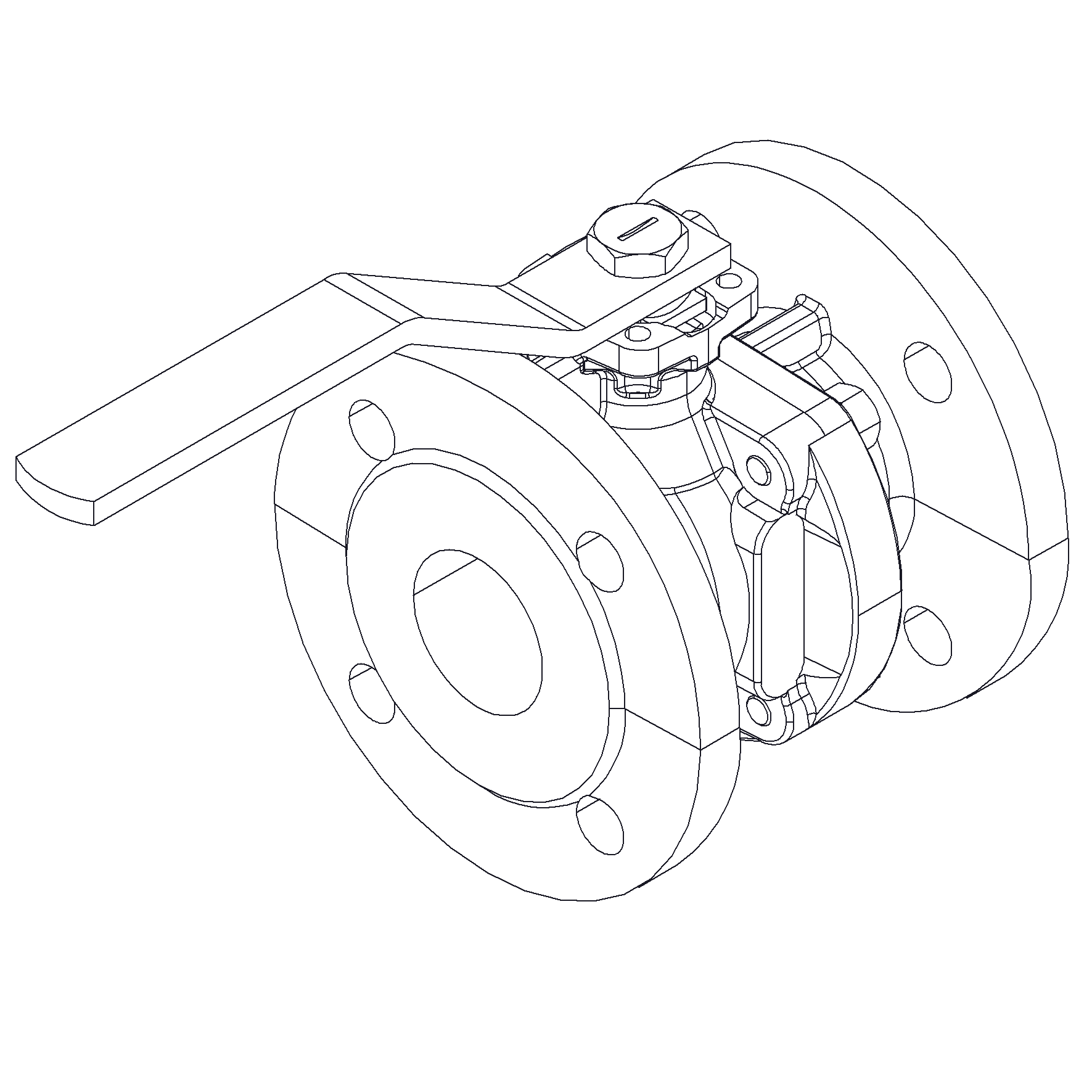

Ball Valve DN80 PN16
Details
Two piece, full bore, RG5 body ball valve with Hard Chromed Brass ball and CPTFE seat. Raised face flanges. With direct mounting pad.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 445122 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | EN 1092-3 |
| Design Code | EN 1983 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 80 |
| Material Seat | CPTFE |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000301 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Top Flange Standard | ISO 5211 - F07 |
| Execution | Full Bore |
| Max temperature | +150°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Cap | Bronze | CC 491K |
| 3 | Ball | Brass, Chrome-Plated | CW 617N |
| 4 | Seat | CPTFE | |
| 5 | Stem | Brass, Chrome-Plated | CW 617N |
| 6 | Handle | Carbon Steel, Epoxy Coated |

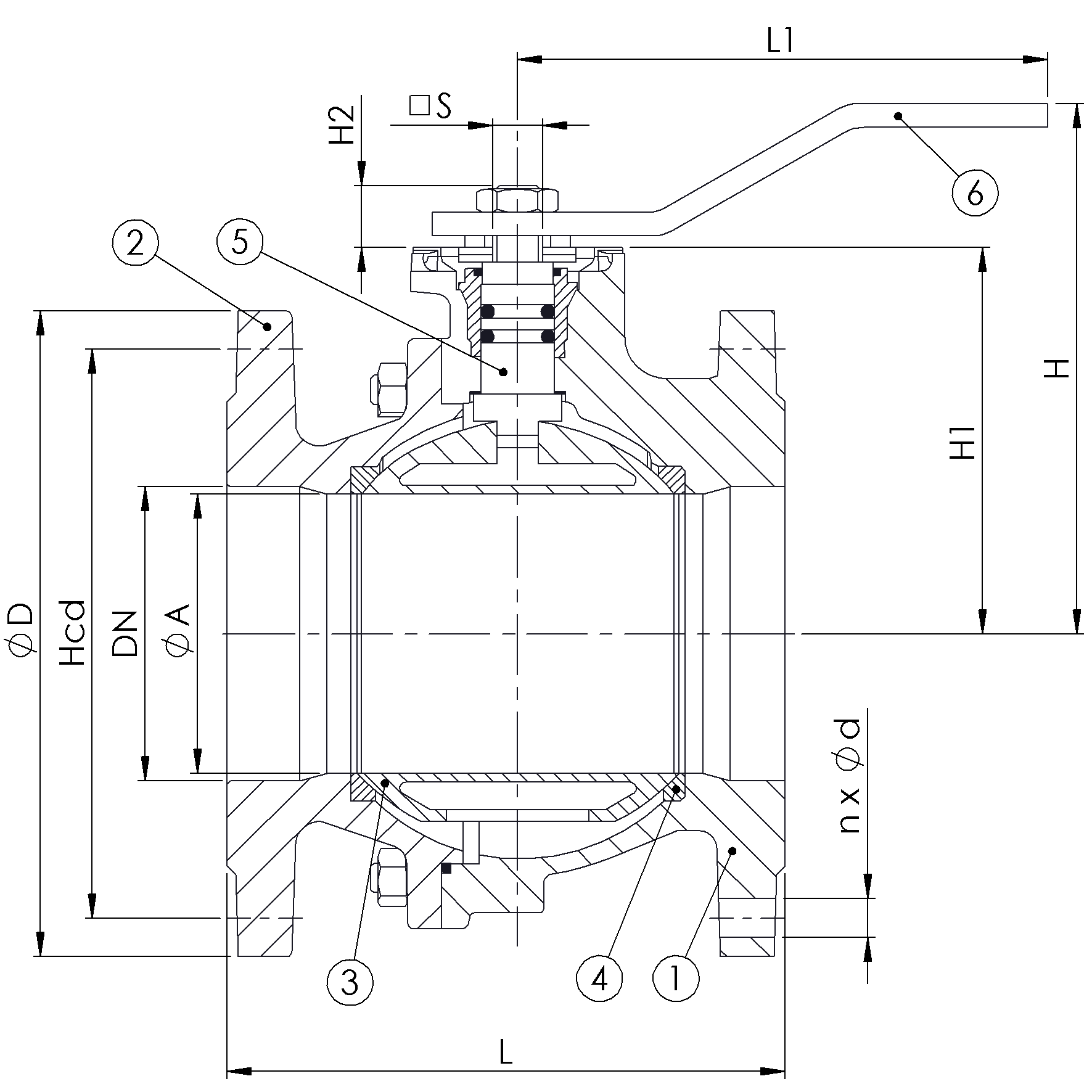

DETAILS
| DN | nxdd | Hcd | Ø D | L | Kg | L1 | H | H1 | Ø A | H2 | S |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 8x18 | 160 | 200 | 180 | 19.1 | 280 | 165 | 118 | 76 | 15 | 17 |
