Ball Valve DN80 PN16
Details

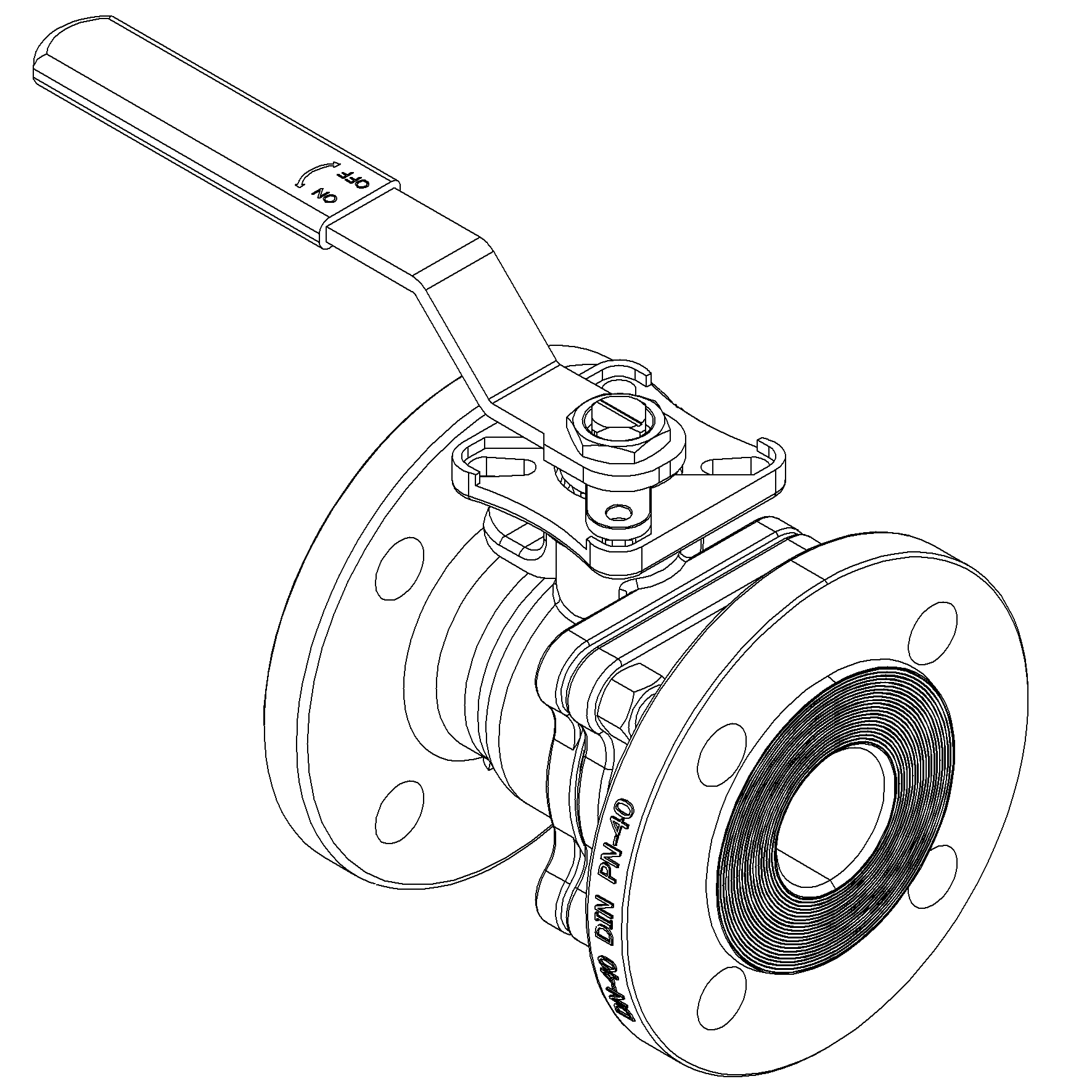

Two piece, full bore, Cast Steel body ball valve with Stainless Steel ball and SS+PTFE seat. Raised face flanges. With direct mounting pad. Fire safe version.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 445162 |
| Material Body | Cast Steel |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | DIN 2635 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 80 |
| Material Seat | SS+PTFE |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | BALL |
| Item Number | 20-00000976 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Top Flange Standard | ISO 5211 - F07/F10 |
| Variant | Fire Safe |
| Execution | Full Bore |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Cap | Cast Steel | ASTM A216-WCB |
| 3 | Ball | Stainless Steel | ASTM A351-CF8 |
| 4 | Seat | SS+PTFE | |
| 5 | Stem | Stainless Steel | AISI 316 |
| 6 | Handle | Stainless Steel, Plastic Cover | AISI 430 |

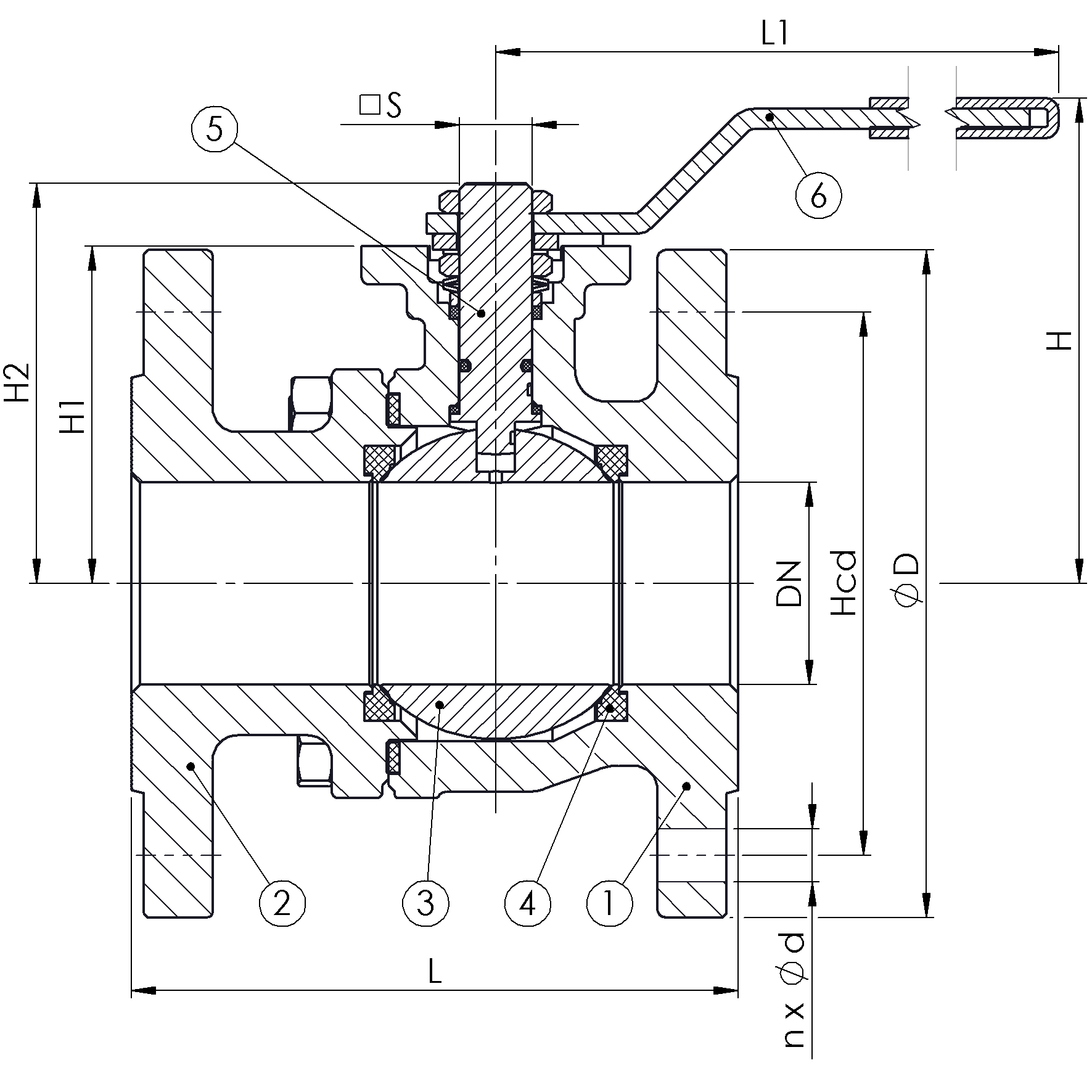

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | H1 | H2 |
|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 16 | 8x18 | 160 | 200 | 180 | 19 | 277.5 | 166,5 | 129.5 | 148 |
