Ball Valve ½" PN25
Details
Two piece, full bore, Brass body ball valve with Hard Chromed Brass ball and PTFE seat. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 442013 |
| Material Body | Brass |
| Min temperature | -20°C |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
| Size | 15 |
| Material Seat | PTFE |
| Pressure Rating | PN25 |
| End Type | Threaded |
| Sub Category | BALL |
| Item Number | 20-00000142 |
| Category | Valve |
| Execution | Full Bore |
| Max temperature | +100°C |

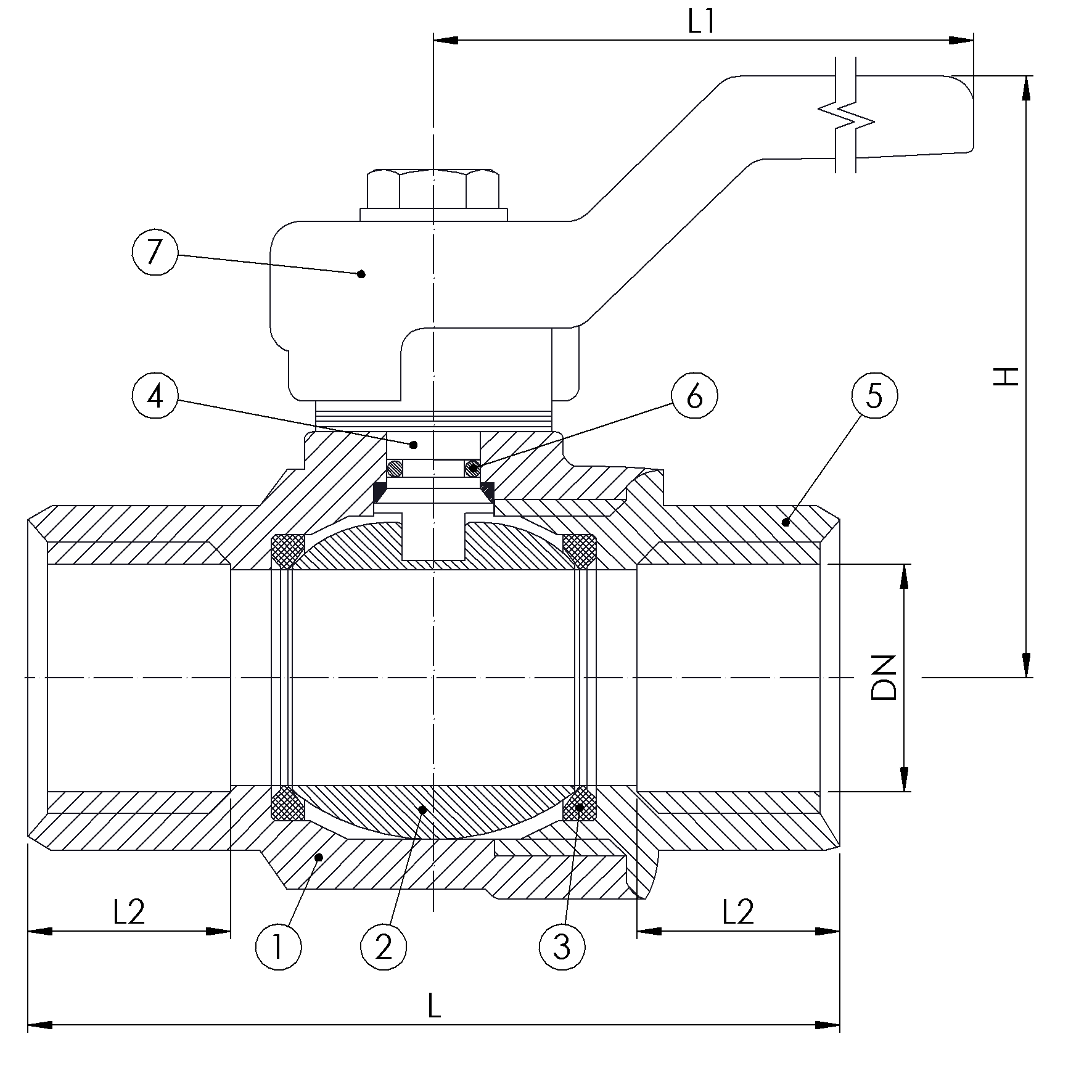

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Brass | CW617N |
| 2 | Ball | Chromed Brass | - |
| 3 | Seat | PTFE | |
| 4 | Stem | Brass | CW614N |
| 5 | Body End | Brass | CW617N |
| 6 | O-ring | NBR | |
| 7 | Handle | Iron, plastic coated | - |
DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | L1 | Inch | H | L2 |
|---|---|---|---|---|---|---|---|---|
| 15 | 25 | 14 | 48.5 | 0.2 | 85 | 1/2" | 43 | 11.5 |
