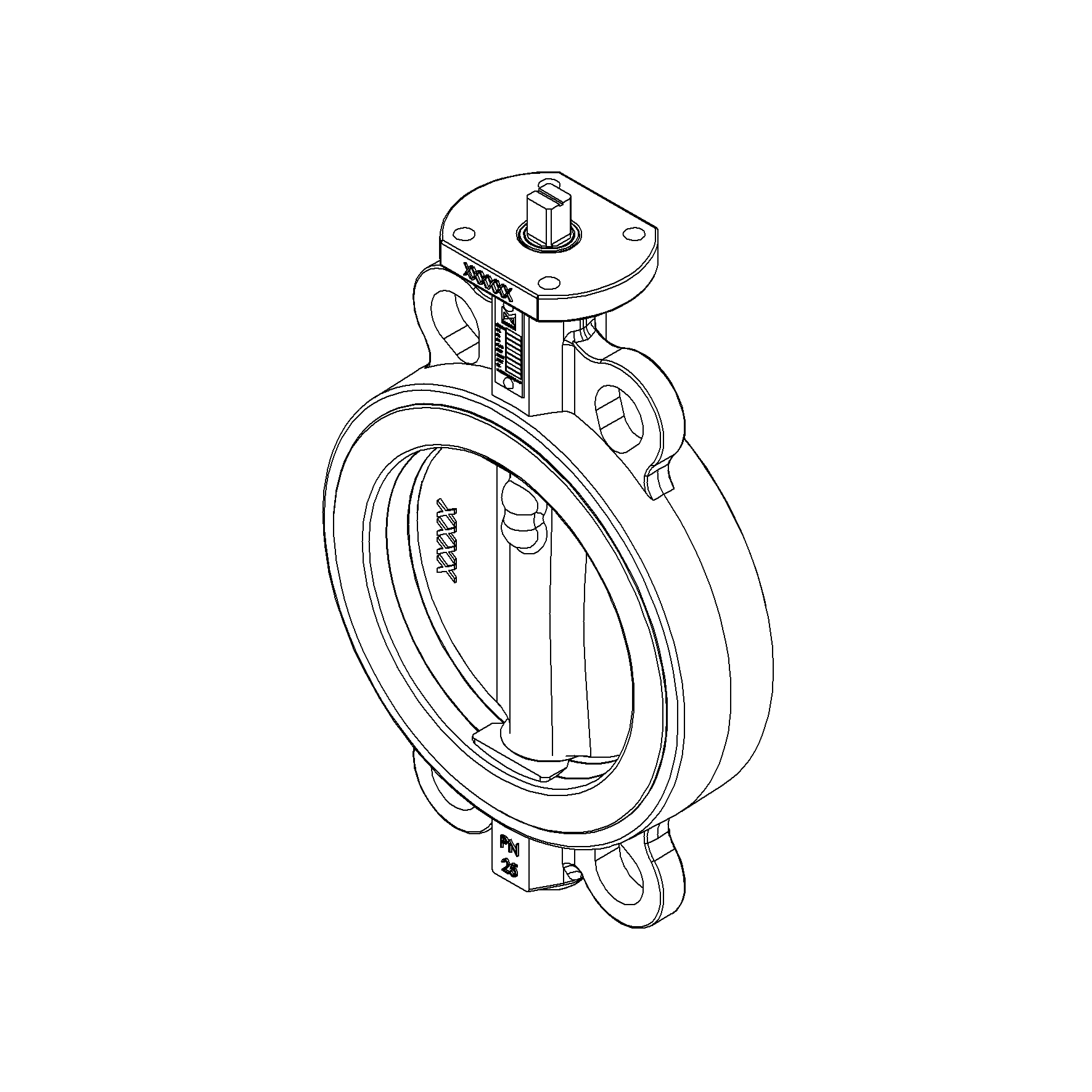

Butterfly Valve W DN200 PN16
Details
Nodular Cast Iron body, vulcanized liner wafer type butterfly valve with Super Duplex disc. Centric free stem with standardized pattern for actuator mounting. Can handle negative pressure (vacuum), due to the meticulous vulcanization process.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 701802 |
| Material Body | Nodular Cast Iron, GGG40 |
| Min temperature | -20°C |
| Remark | Multiflange: PN6/10/16/25, ANSI150, JIS5K/10K |
| Face To Face Standard | EN 558, series 20 |
| End Standard | EN 1092-2 |
| Design Code | EN 593 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 200 |
| Material Seat | EPDM |
| Material Disc | Stainless Steel, Super Duplex |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | BUTTERFLY |
| Item Number | 40-00002350 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Top Flange Standard | ISO 5211 - F07 |
| Variant | Bare stem |
| Max temperature | +100°C |
Partslist and details

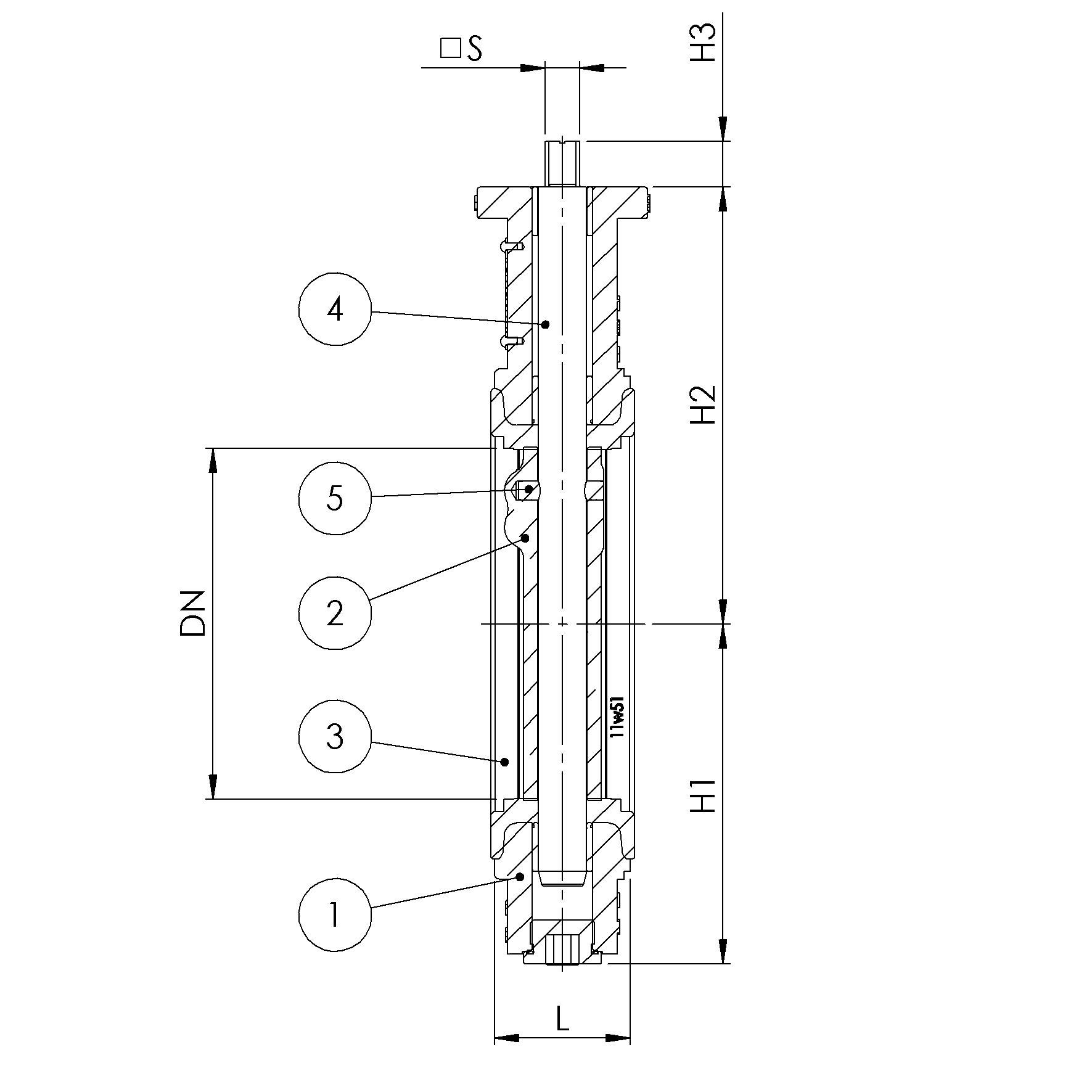

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Super Duplex Stainless Steel | 1.4469 |
| 3 | Seat | EPDM max working temp. 100°C | |
| 4 | Stem | Stainless Steel | 1.4401 |
| 5 | Pin | Duplex Stainless Steel | 1.4462 |
DETAILS

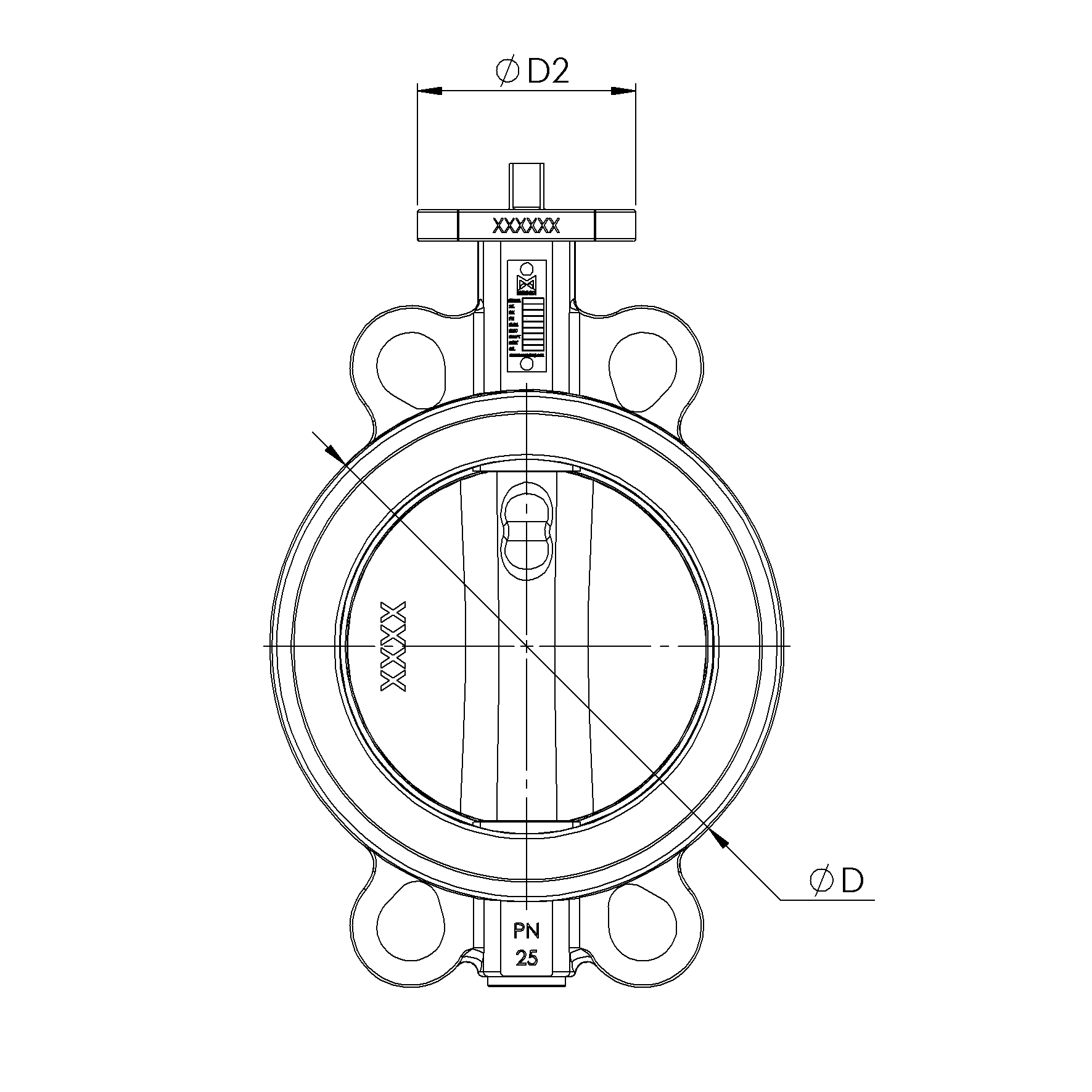

| DN | Pressure Rating Id | Ø D | L | Kg | H1 | Ø D2 | H2 | S | H3 |
|---|---|---|---|---|---|---|---|---|---|
| 200 | 16 | 266 | 60 | 14 | 167 | 90 | 204 | 17 | 28 |
