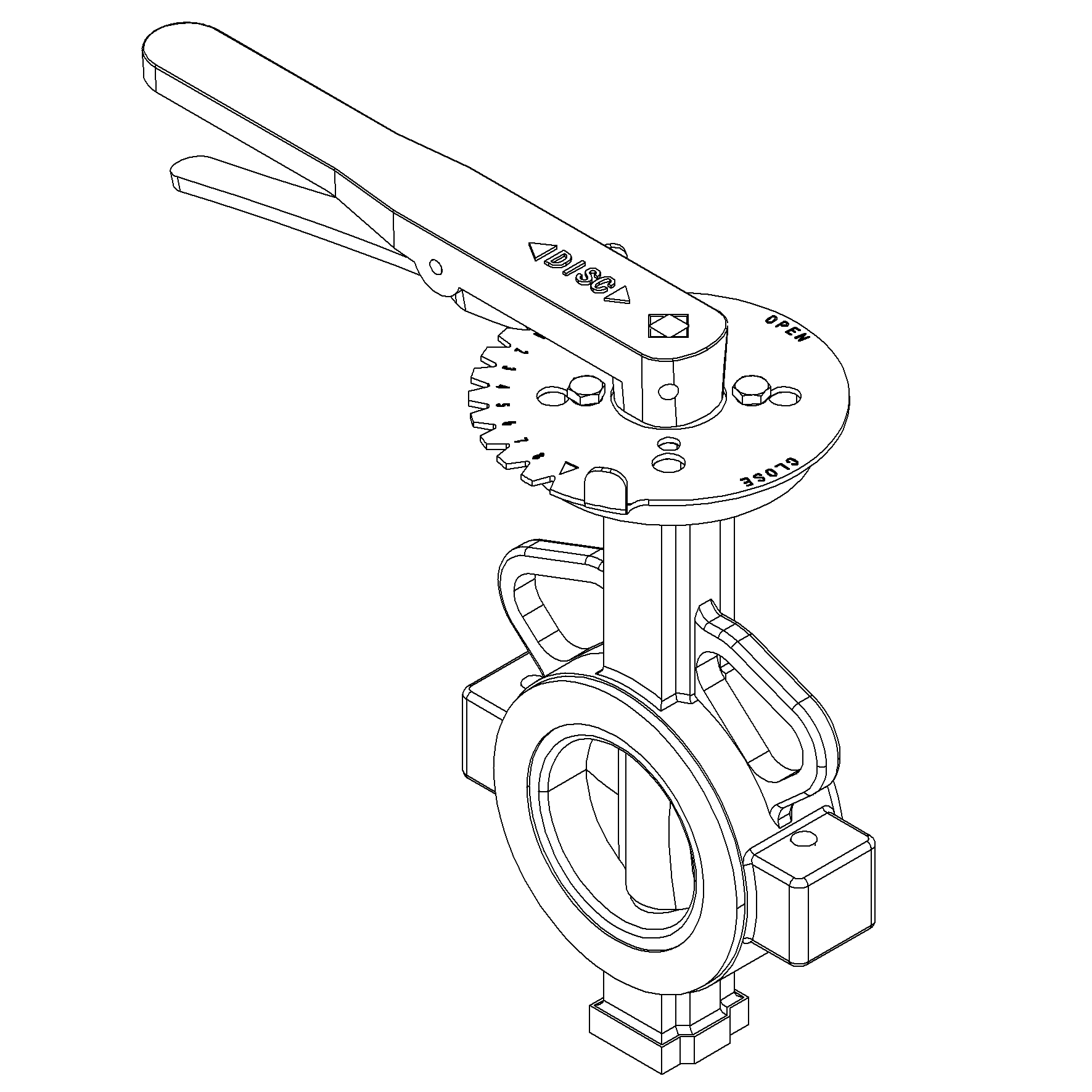

Butterfly valve W DN80 PN10
Details
Nodular Cast Iron two piece body and stainless steel two piece stem. Superior corrosion resistance with PTFE seat and disc coating. Standardized pattern for actuator mounting.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 705501 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Min temperature | -40°C |
| Remark | Multiflange: PN6/10/16, ANSI150, JIS10K |
| Face To Face Standard | EN 558, series 20 |
| End Standard | EN 1092-2 |
| Design Code | API 609 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 80 |
| Material Seat | PTFE |
| Material Disc | PTFE |
| Pressure Rating | PN10 |
| End Type | Wafer |
| Sub Category | BUTTERFLY |
| Item Number | 40-00001905 |
| Category | Valve |
| Inspection Standard | API 598 |
| Top Flange Standard | ISO 5211 - F07 |
| Variant | Lever |
| Max temperature | +120°C |
Partslist and details

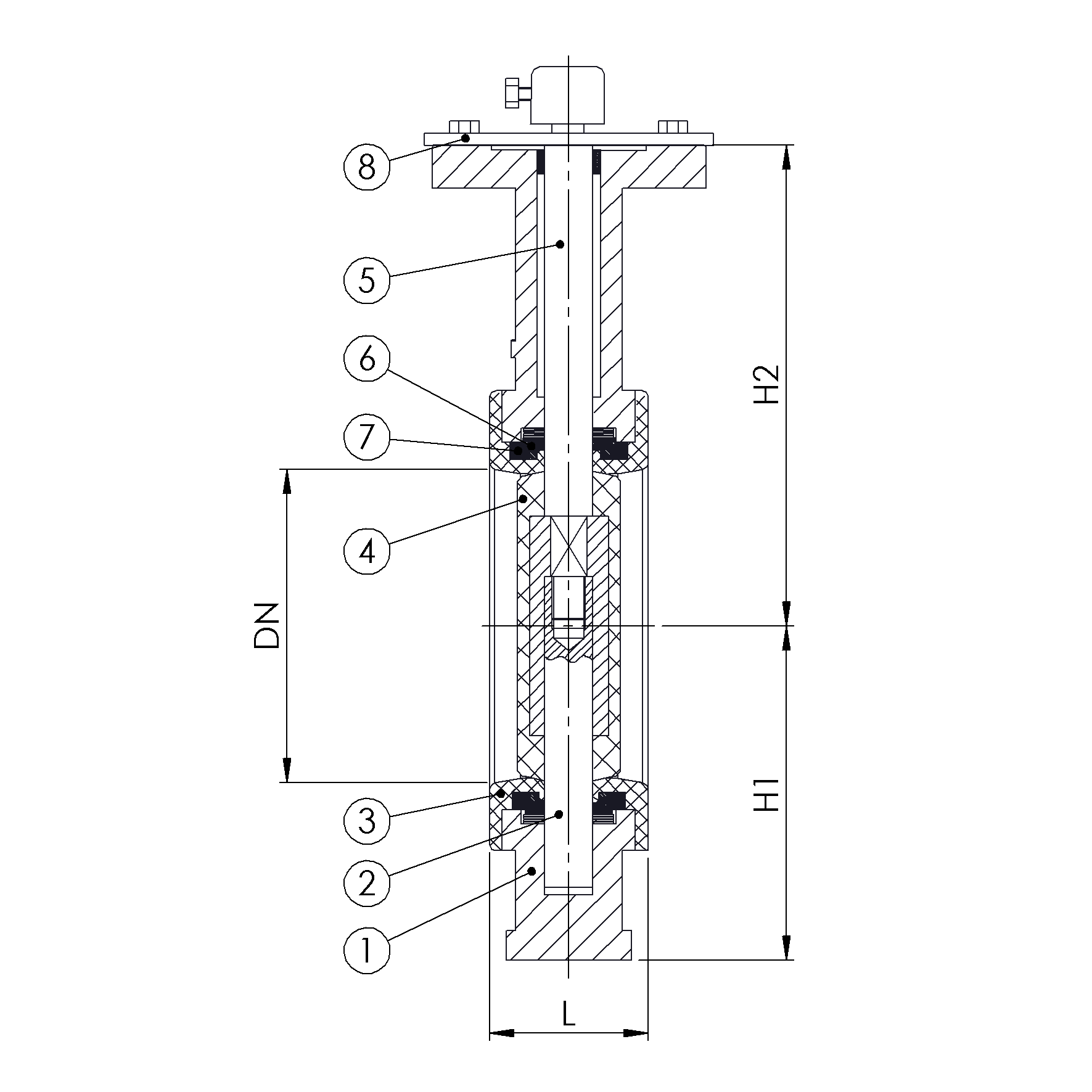

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Shaft | Stainless Steel | SS431 |
| 3 | Seat | PTFE | |
| 4 | Disc | PTFE coated WCB | |
| 5 | Stem | Stainless Steel | SS431 |
| 6 | Seat energizer | Silicone | |
| 7 | Pressing sleeve | Stainless steel | |
| 8 | Position plate | Carbon steel | |

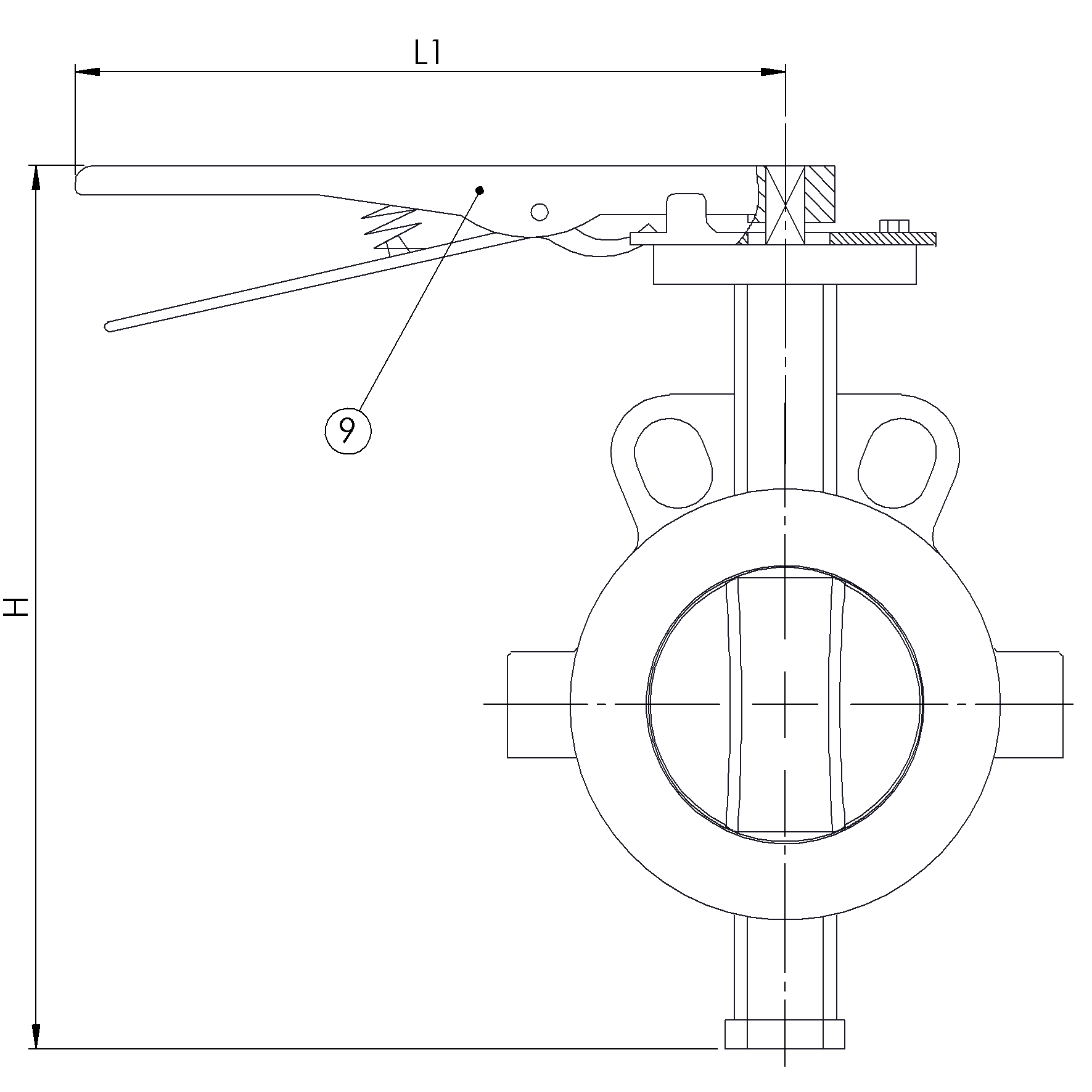

| 9 | Lever | Malleable Iron |
DETAILS
| DN | Pressure Rating Id | L | L1 | H | H1 | H2 |
|---|---|---|---|---|---|---|
| 80 | 10 | 46 | 285 | 276 | 90 | 160 |
