Dual Check Valve DN50 PN16
Details
Nodular Cast Iron body, vulcanized injection molded EPDM liner dual plate check valve with Super Duplex disc. Opening pressure less than 0,2 bar.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 301802 |
| Material Body | Nodular Cast Iron, GGG40 |
| Min temperature | -20°C |
| Remark | Multiflange: PN6/10/16, ANSI150, JIS5K/10K |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 16 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 50 |
| Material Seat | EPDM |
| Material Disc | Stainless Steel, Super Duplex |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | 60-00000939 |
| Category | Valve |
| Max temperature | +100°C |
Partslist and details

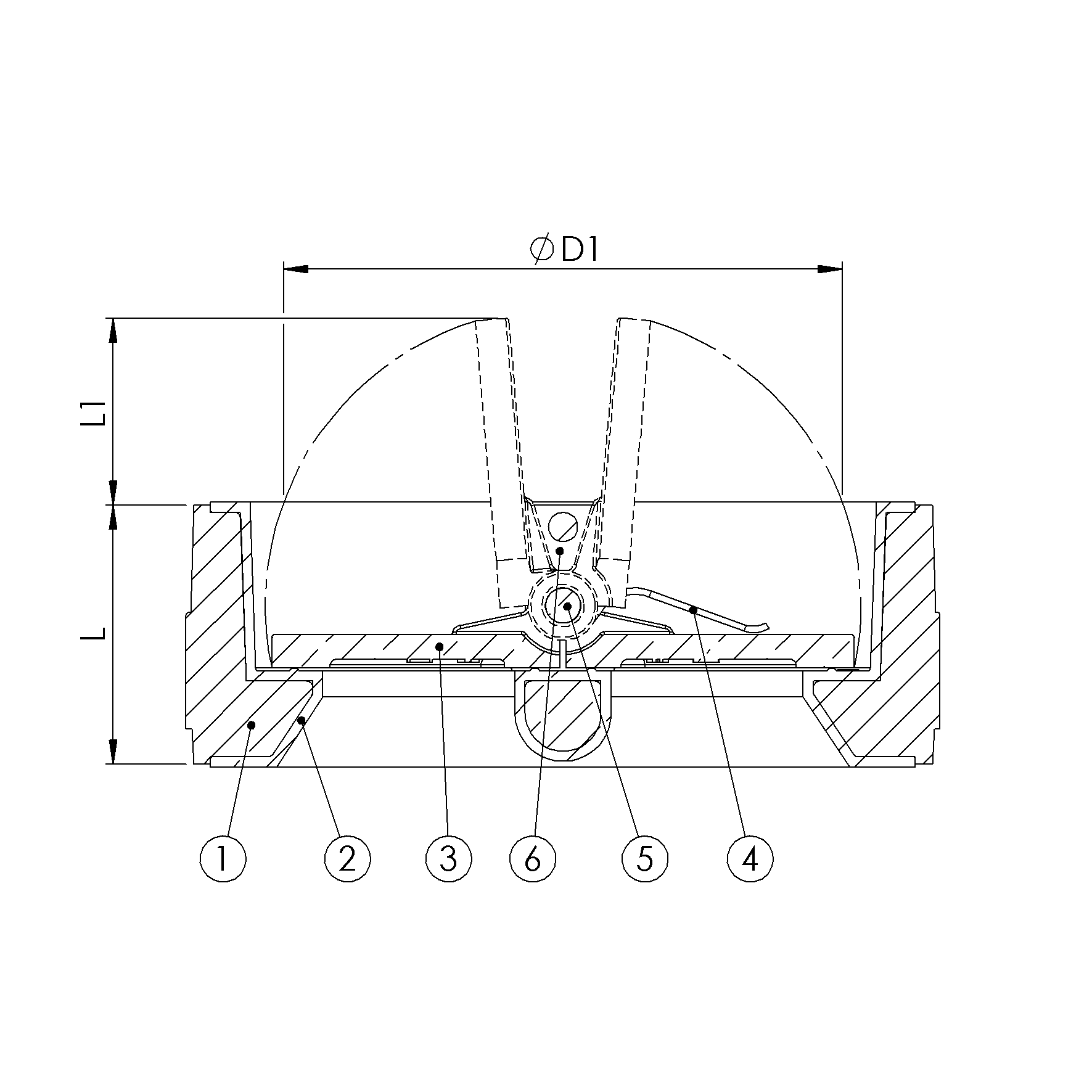

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Seat | EPDM | |
| 3 | Disc | Super Duplex Stainless Steel | 1.4469 |
| 4 | Spring | Inconel | |
| 5 | Shaft | Monel | |
| 6 | Clips | Super Duplex Stainless Steel | 1.4469 |

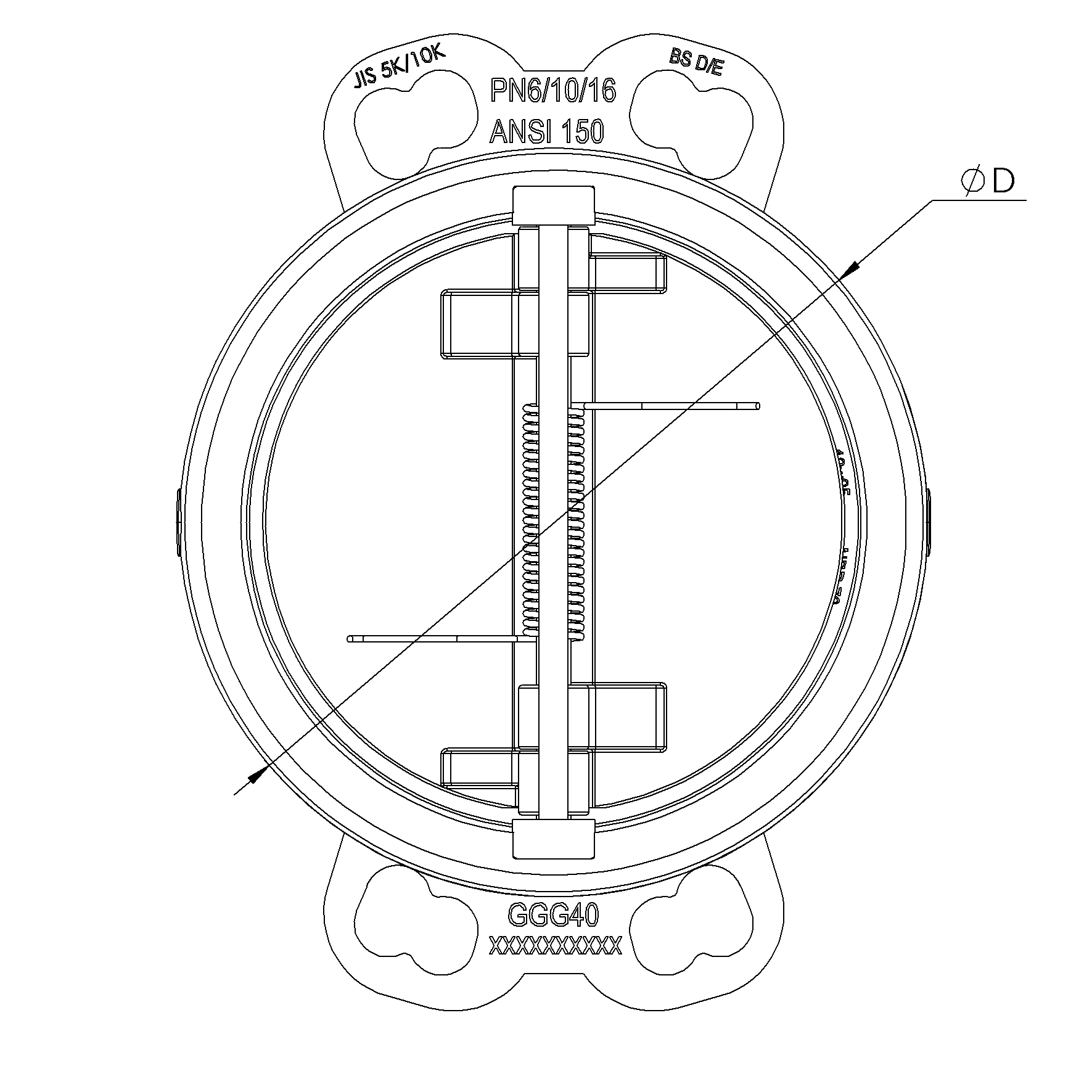

DETAILS
| DN | Pressure Rating Id | Ø D | L | Kg | L1 | Ø D1 |
|---|---|---|---|---|---|---|
| 50 | 16 | 99 | 43 | 1.7 | 10 | 47 |
