Dual Plate Check Valve DN250 PN16
Details
Nodular Cast Iron body, vulcanized injection molded NBR liner dual plate check valve with Aluminium Bronze disc. Opening pressure less than 0,2 bar.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 300702 |
| Material Body | Nodular Cast Iron, GGG40 |
| Min temperature | -15°C |
| Remark | Multiflange: PN6/10/16, ANSI150, JIS5K/10K |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 16 |
| Standard | DIN |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 250 |
| Material Seat | NBR |
| Material Disc | Aluminium Bronze |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | M33508 |
| Category | Valve |
| Max temperature | +80°C |
Partslist and details

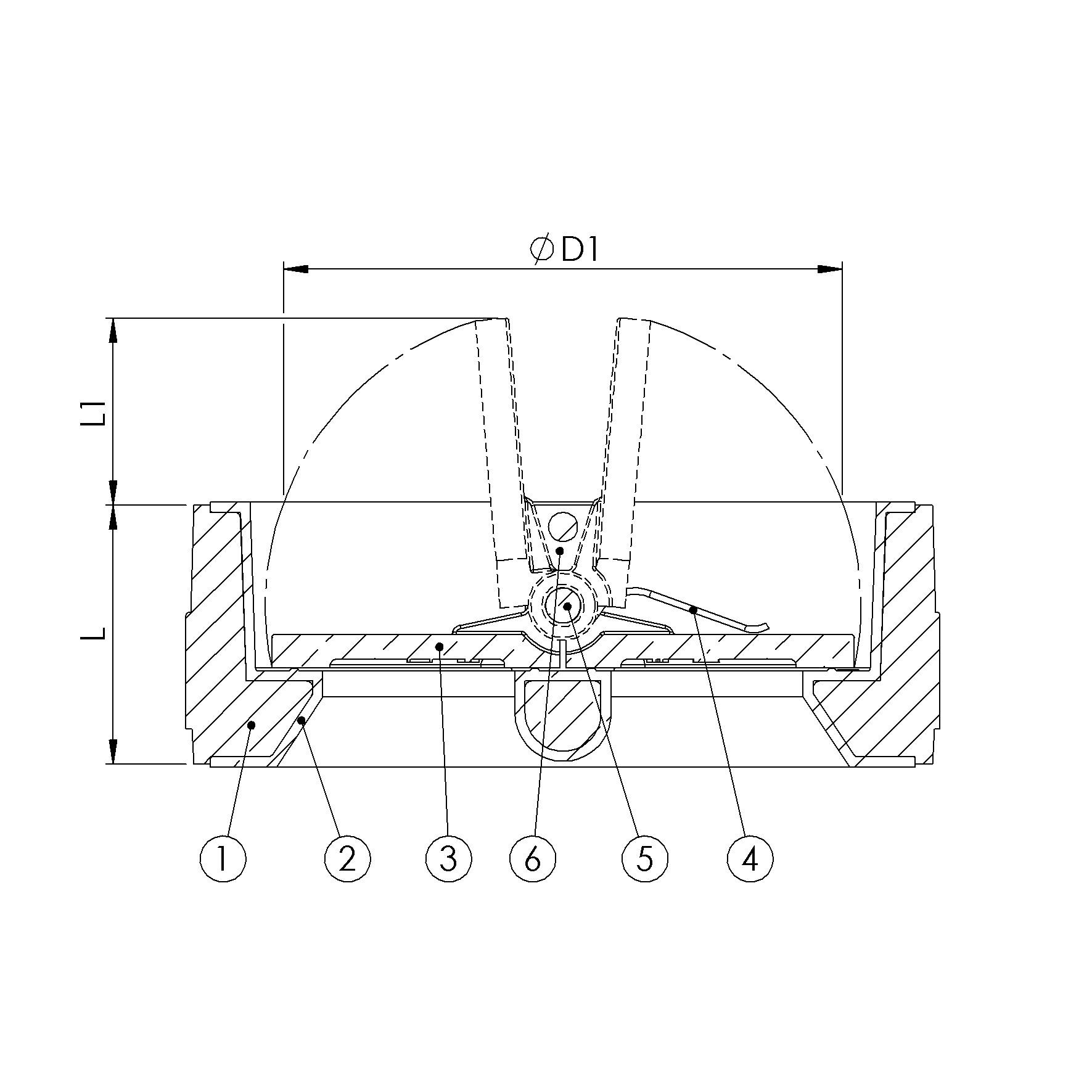

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Seat | NBR | |
| 3 | Disc | Aluminium Bronze | |
| 4 | Spring | Inconel | |
| 5 | Shaft | Monel | |
| 6 | Clips | Aluminium Bronze |
DETAILS

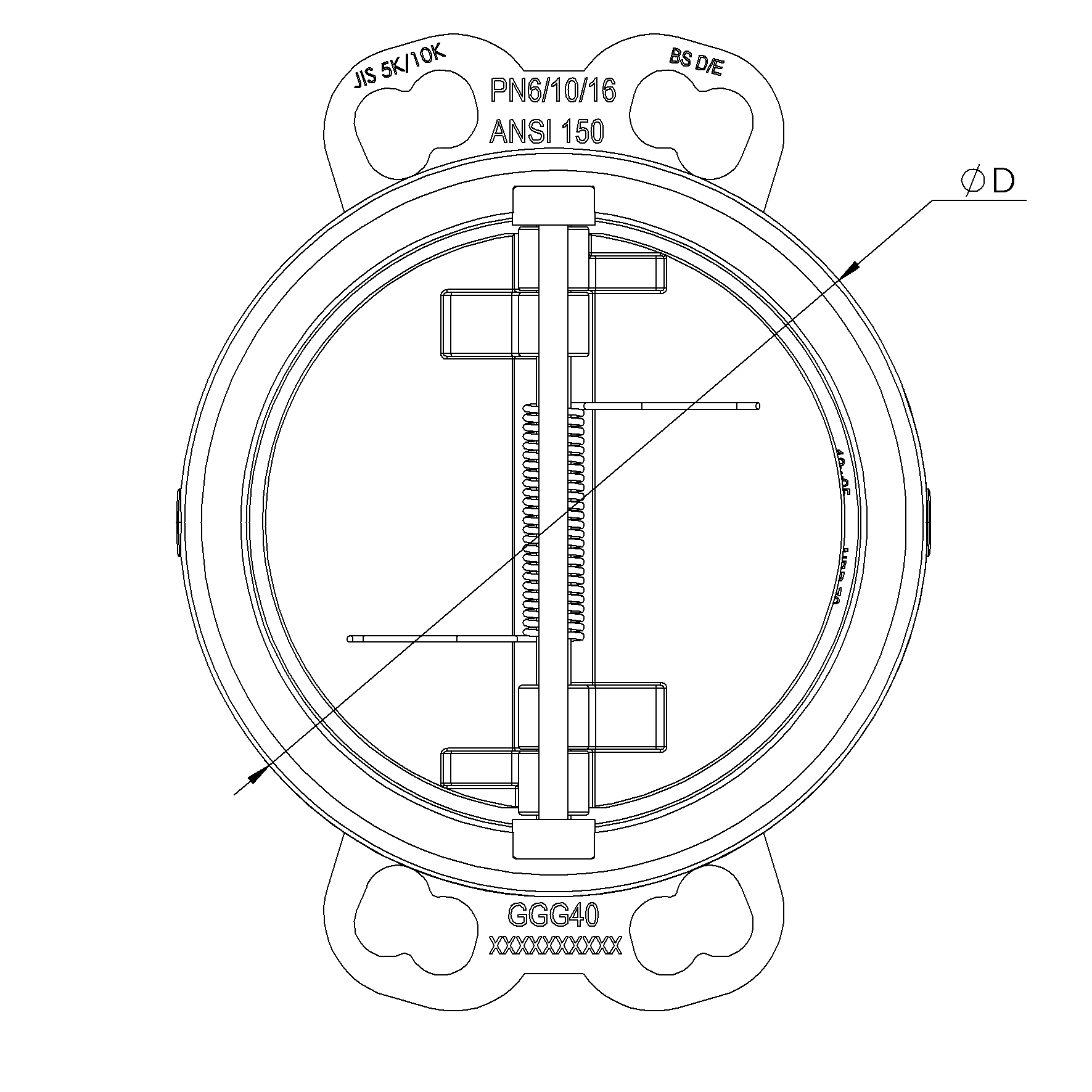

| DN | Pressure Rating Id | Ø D | L | Kg | L1 | Ø D1 |
|---|---|---|---|---|---|---|
| 250 | 16 | 306 | 114 | 26 | 78 | 203 |
