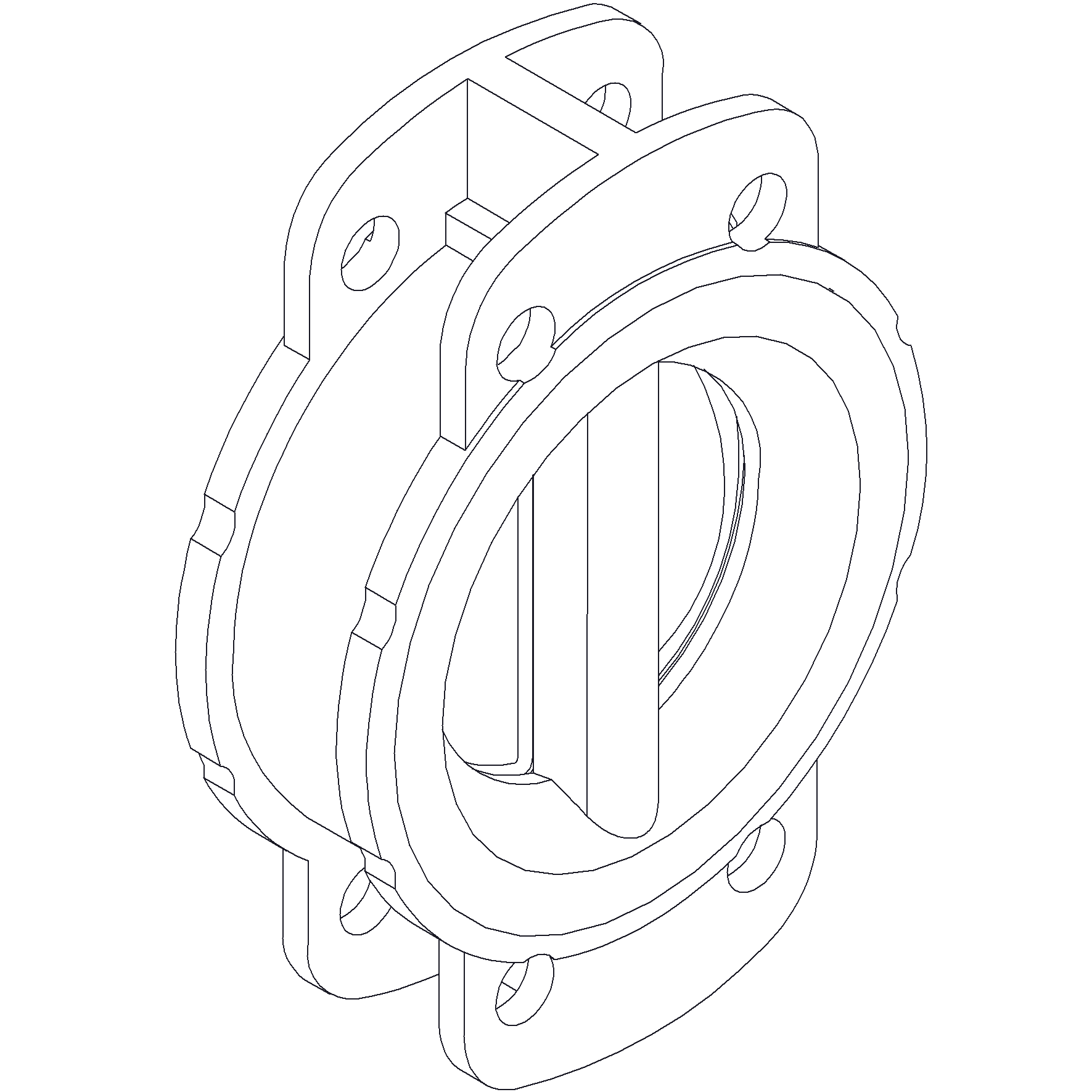

Dual Plate Check Valve DN80 PN16
Details
Nodular Cast Iron body, EDPM sealing, spring tensioned dual plate check valve with Aluminium Bronze disc.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 315202 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Min temperature | -20°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, water |
| Size | 80 |
| Material Seat | EDPM |
| Material Disc | Aluminium Bronze |
| Pressure Rating | PN16 |
| End Type | Wafer |
| Sub Category | CHECK |
| Item Number | 60-00000303 |
| Category | Valve |
| Inspection Standard | API 598 |
| Max temperature | +100°C |
Partslist and details

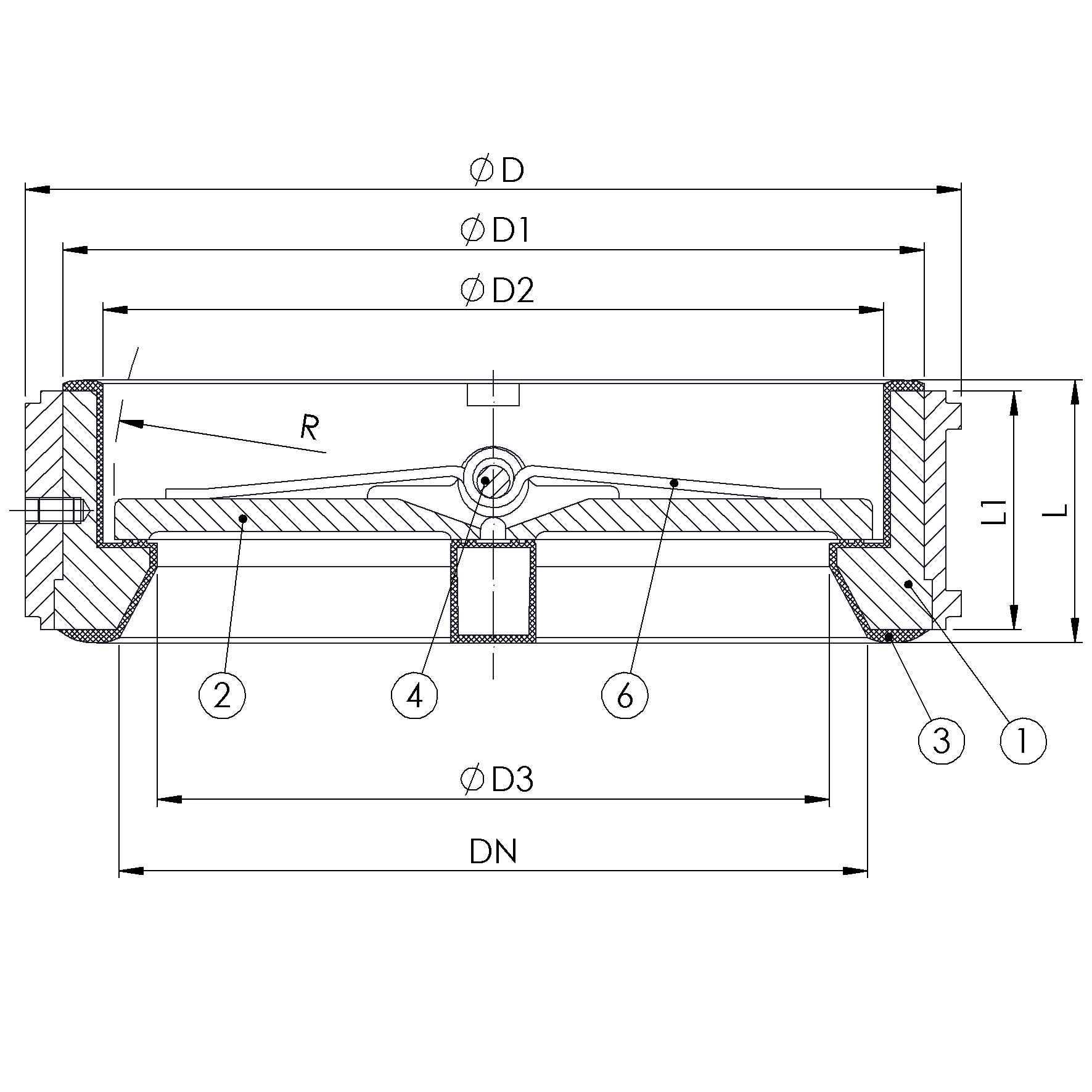

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Disc | Aluminium Bronze | |
| 3 | Seat | NBR | |
| 4 | Shaft | Stainless Steel | SS 316 |
| 5 | Shaft plug | Stainless Steel | SS 316 |
| 6 | Spring | Stainless Steel | SS 304 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | Ø D1 | Ø D2 | R | Ø F | Ø D3 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 80 | 16 | 8x19 | 160 | 131 | 54 | 3.2 | 50 | 116.3 | 92.1 | 43 | 200 | 69.9 |
