Fire Valve DN50 PN16
Details

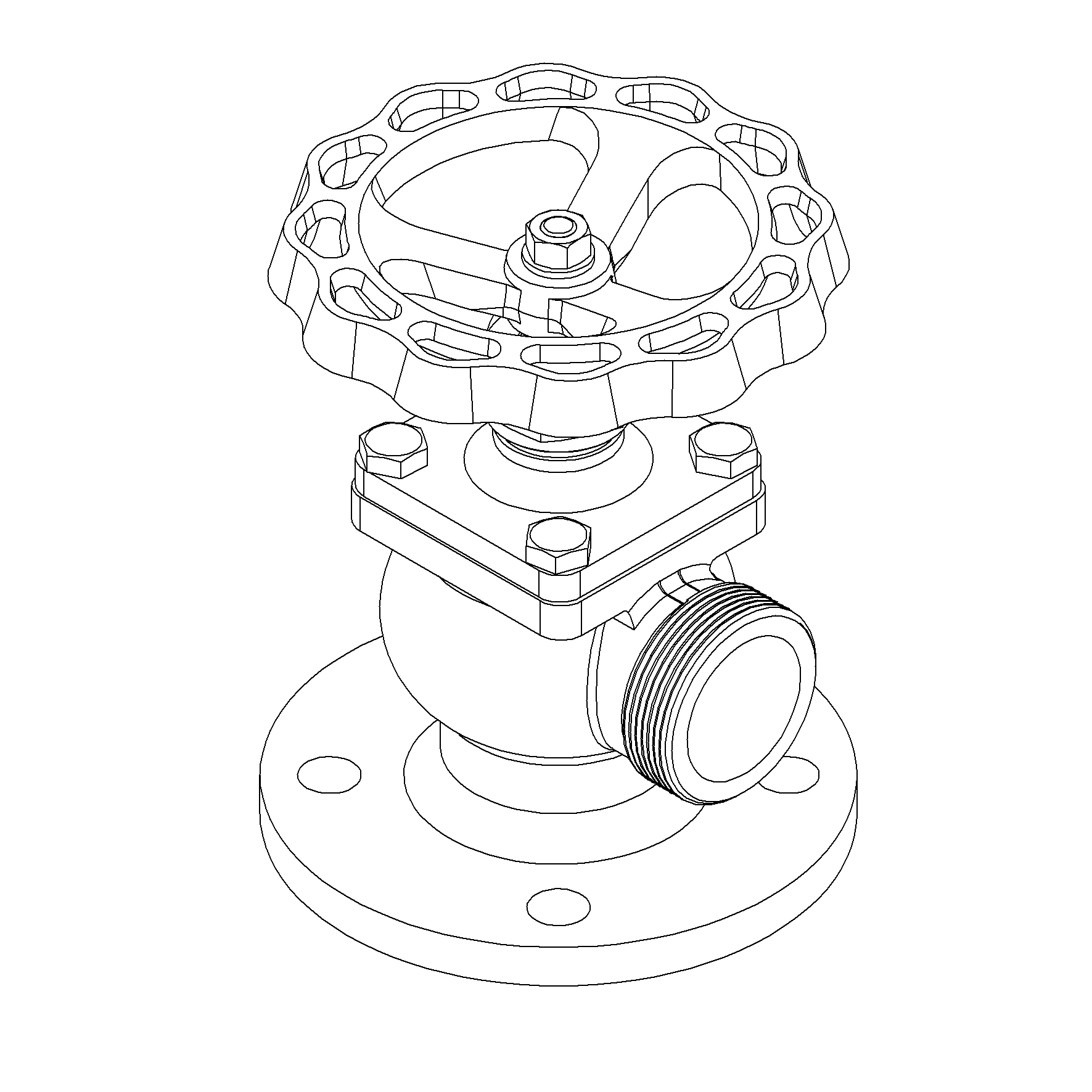

Bronze RG5 body soft sealing fire valve. Rising stem with bolted bonnet. Angled hose connection. Raised face flanged inlet, BSP male threaded outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 356722 |
| Material Body | Bronze |
| Remark | Connection: PN16 |
| Throughput Direction | Angled |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 50 |
| Material Seat | NBR |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Flanged/Threaded |
| Sub Category | FIRE |
| Item Number | 90-00000090 |
| Category | Valve |
| Max temperature | +80°C |
Partslist and details

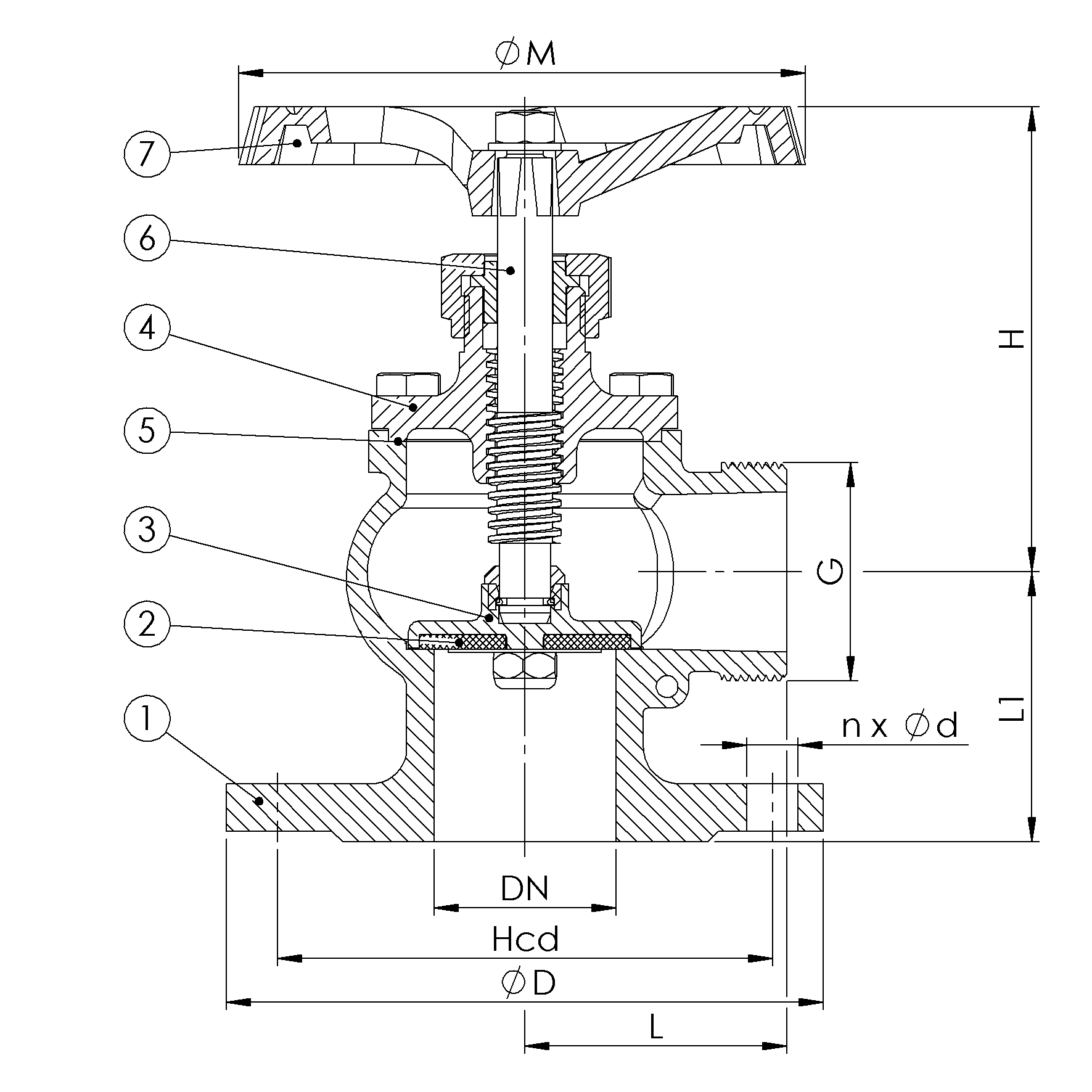

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Disc ring | NBR | |
| 3 | Disc | Brass | CW 710R |
| 4 | Bonnet | Bronze | CC 491K |
| 5 | Gasket | NBR bonded aramid | |
| 6 | Stem | Brass | CW 710R |
| 7 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | G | Ø M |
|---|---|---|---|---|---|---|---|---|---|---|
| 50 | 16 | 4x18 | 125 | 165 | 73 | 5.3 | 75 | 150 | 2" | 140 |
