Fire Valve DN65 PN16
Details

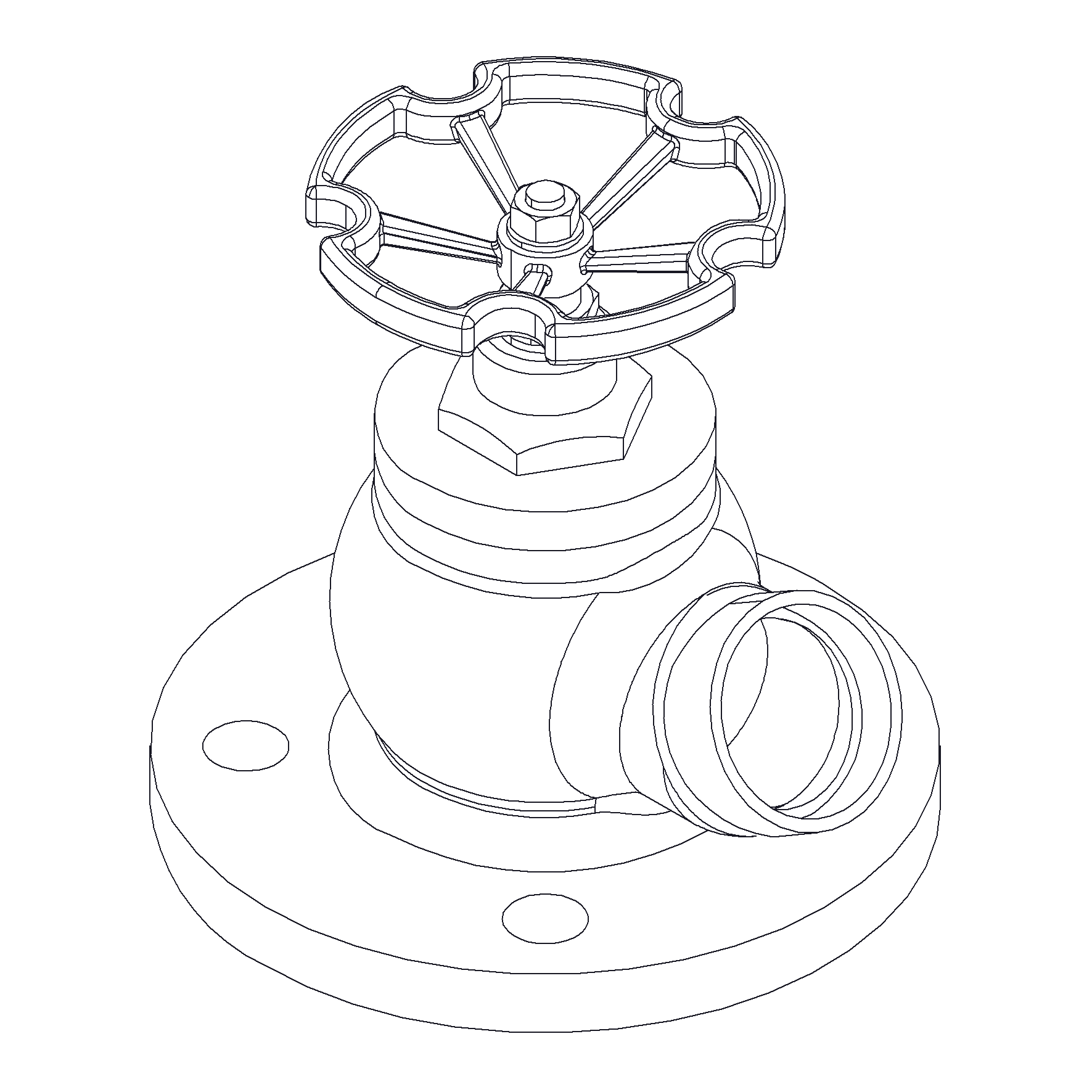

Bronze RG5 body soft sealing fire valve. Rising stem with screwed and secured bonnet. Angled (30° from flange) hose connection. Flat face flanged inlet, BSP male threaded outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 355922 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Angled (30°) |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 65 |
| Material Seat | NBR |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Flanged/Threaded |
| Sub Category | FIRE |
| Item Number | 90-00000007 |
| Category | Valve |
| Max temperature | +60°C |

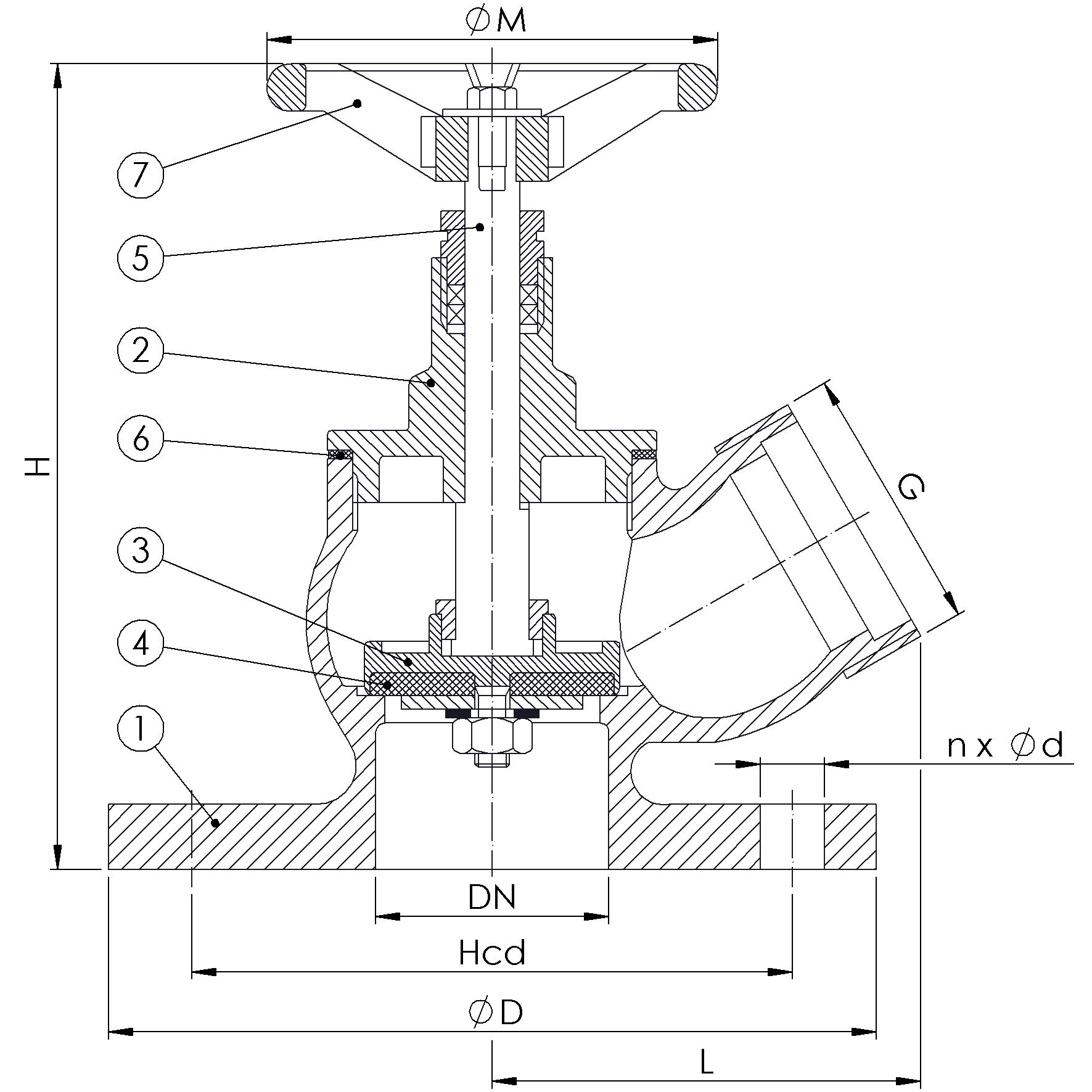

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Brass | CW 614N |
| 3 | Disc | Brass | CW 710R |
| 4 | Seat disc | NBR | |
| 5 | Stem | Brass | CW 710R |
| 6 | Bonnet gasket | Asbestos Free | |
| 7 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | G | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 16 | 4x18 | 145 | 185 | 105 | 5.4 | 230 | 2 1/2" | 120 |
