Fire Valve DN65 PN16
Details

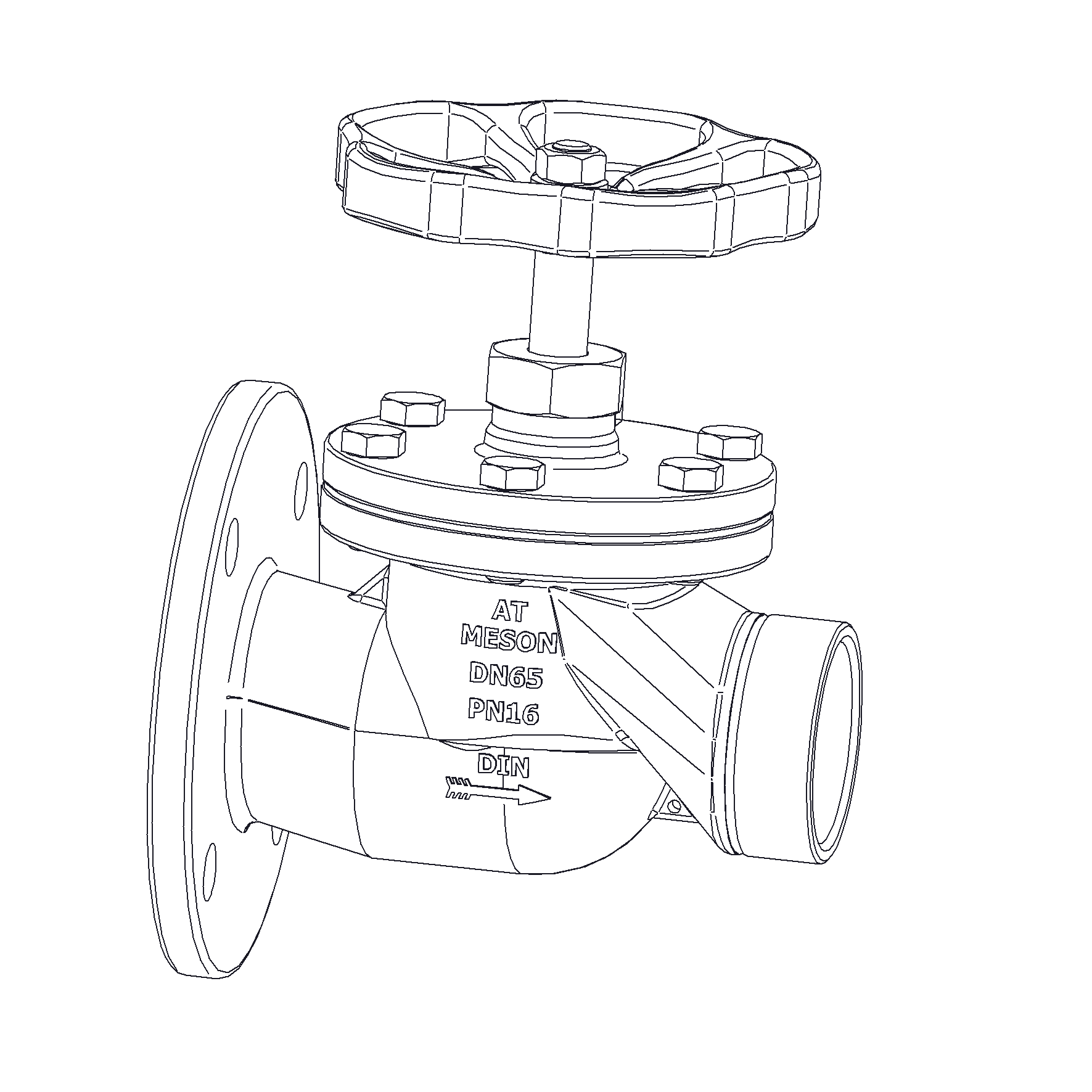

Bronze RG5 body soft sealing fire valve. Rising stem with bolted bonnet. Straight hose connection. Raised face flanged inlet, BSP male threaded outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 356622 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | DIN 86211 |
| End Standard | EN 1092-3 (Inlet), ISO 228-1 (Outlet) |
| Design Code | DIN 86211 |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 65 |
| Material Seat | NBR |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Flanged/Threaded |
| Sub Category | FIRE |
| Item Number | 90-00000017 |
| Category | Valve |
| Max temperature | +60°C |

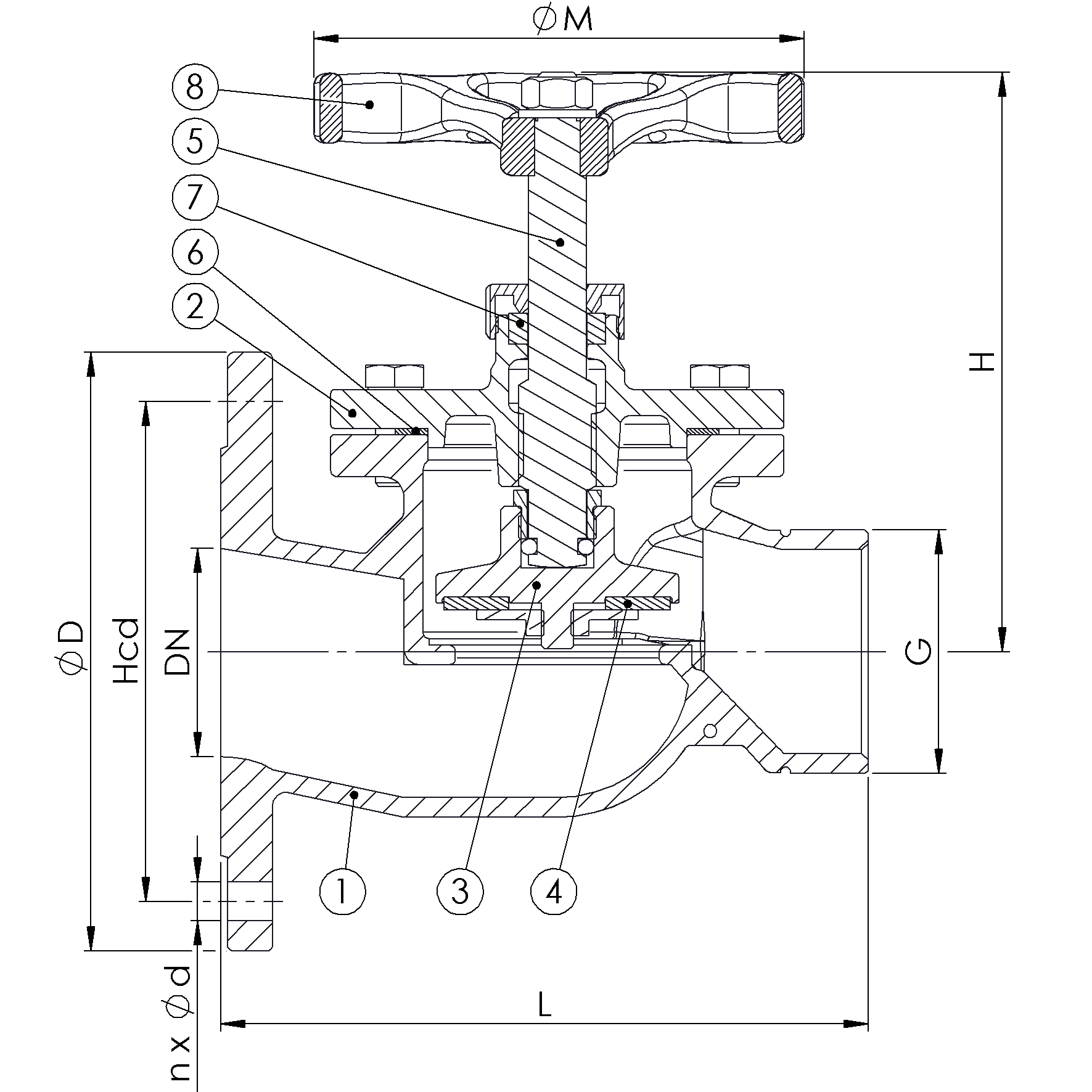

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 490K |
| 3 | Disc | Bronze | CC 491K |
| 4 | Disc sealing ring | NBR | |
| 5 | Stem | Brass | CW 602N |
| 6 | Bonnet gasket | NBR | |
| 7 | Gland packing | PTFE | |
| 8 | Handwheel | Bronze | CC 491K |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | G | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 65 | 16 | 4x18 | 145 | 185 | 200 | 10.9 | 185 | 2 1/2" | 150 |
