Float Valve ¾" PN10
Details
Stainless Steel, soft sealing float valve with BSPP threaded inlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 312891 |
| Material Body | Stainless Steel, 316 |
| Standard | DIN |
| Application | Boiler feedwater, Condensate, Sea water, Water |
| Size | 20 |
| Pressure Rating | PN10 |
| End Type | Threaded |
| Sub Category | SELF |
| Item Number | 230-00000003 |
| Category | Valve |
| Max temperature | +150°C |

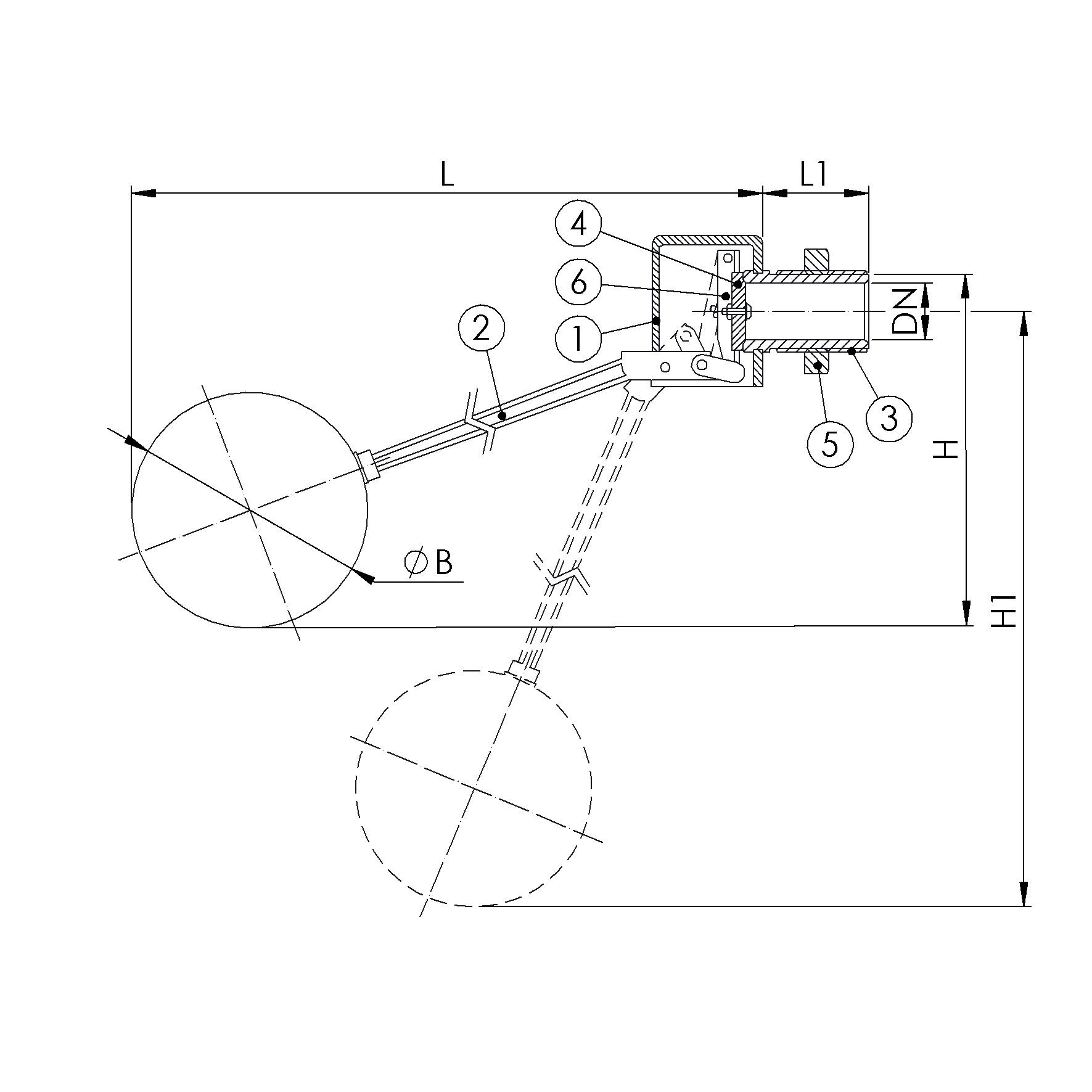

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | AISI 316 |
| 2 | Stem | Stainless Steel | AISI 316 |
| 3 | Coupling | Stainless Steel | AISI 316 |
| 4 | Seal | Silicone | |
| 5 | Nut | Stainless Steel | AISI 316 |
| 6 | Lever | Stainless Steel | AISI 316 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | H1 | Ø B |
|---|---|---|---|---|---|---|---|---|
| 20 | 10 | 490 | 0.9 | 42 | 3/4" | 155/197 | 436 | 160 |
