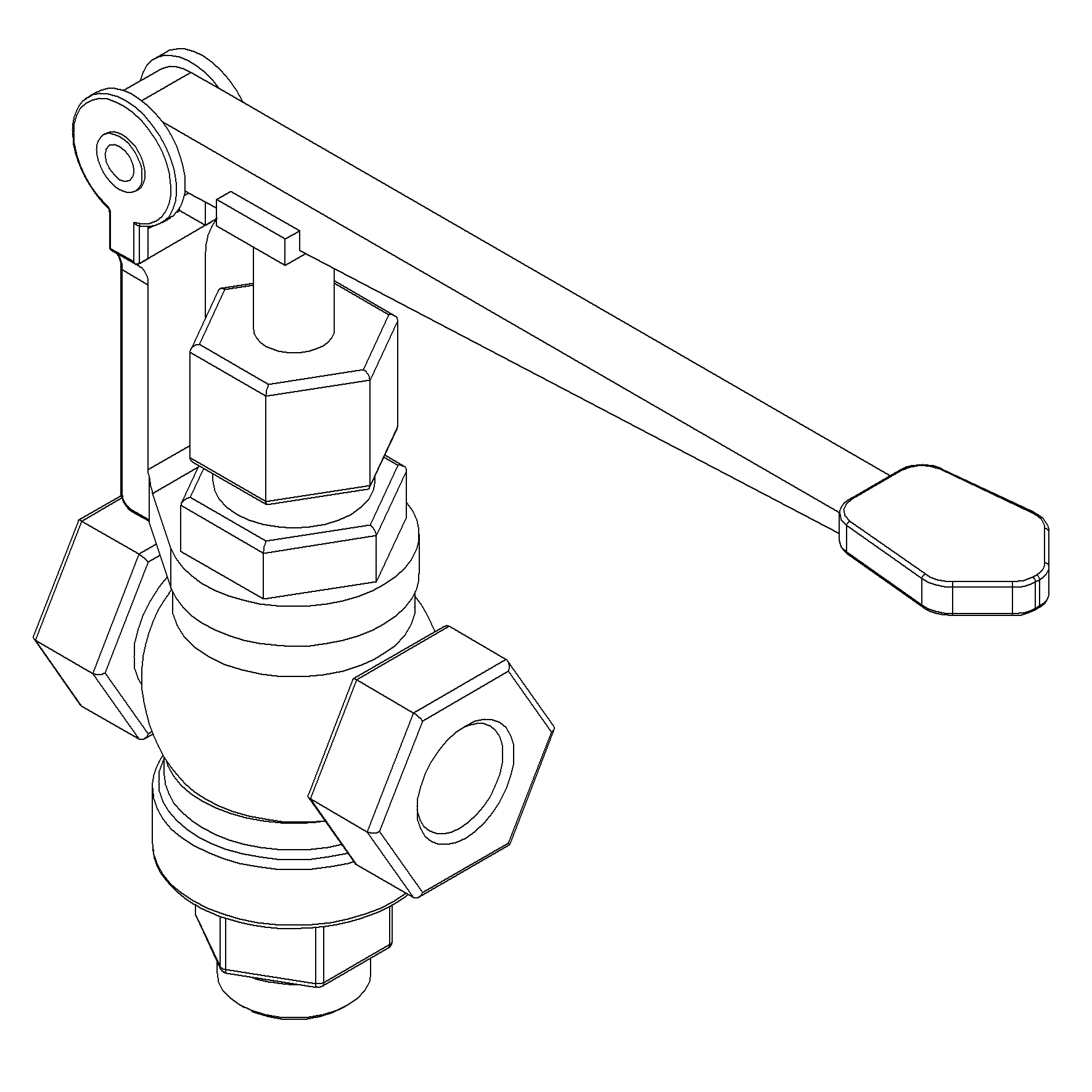

Flushing Valve 1 ¼" PN16
Details
Straight type, Bronze RG5 body, spring loaded, soft sealing self closing flushing valve. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 314022 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 32 |
| Material Seat | PTFE |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | SELF |
| Item Number | 230-00000012 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Max temperature | +180°C |

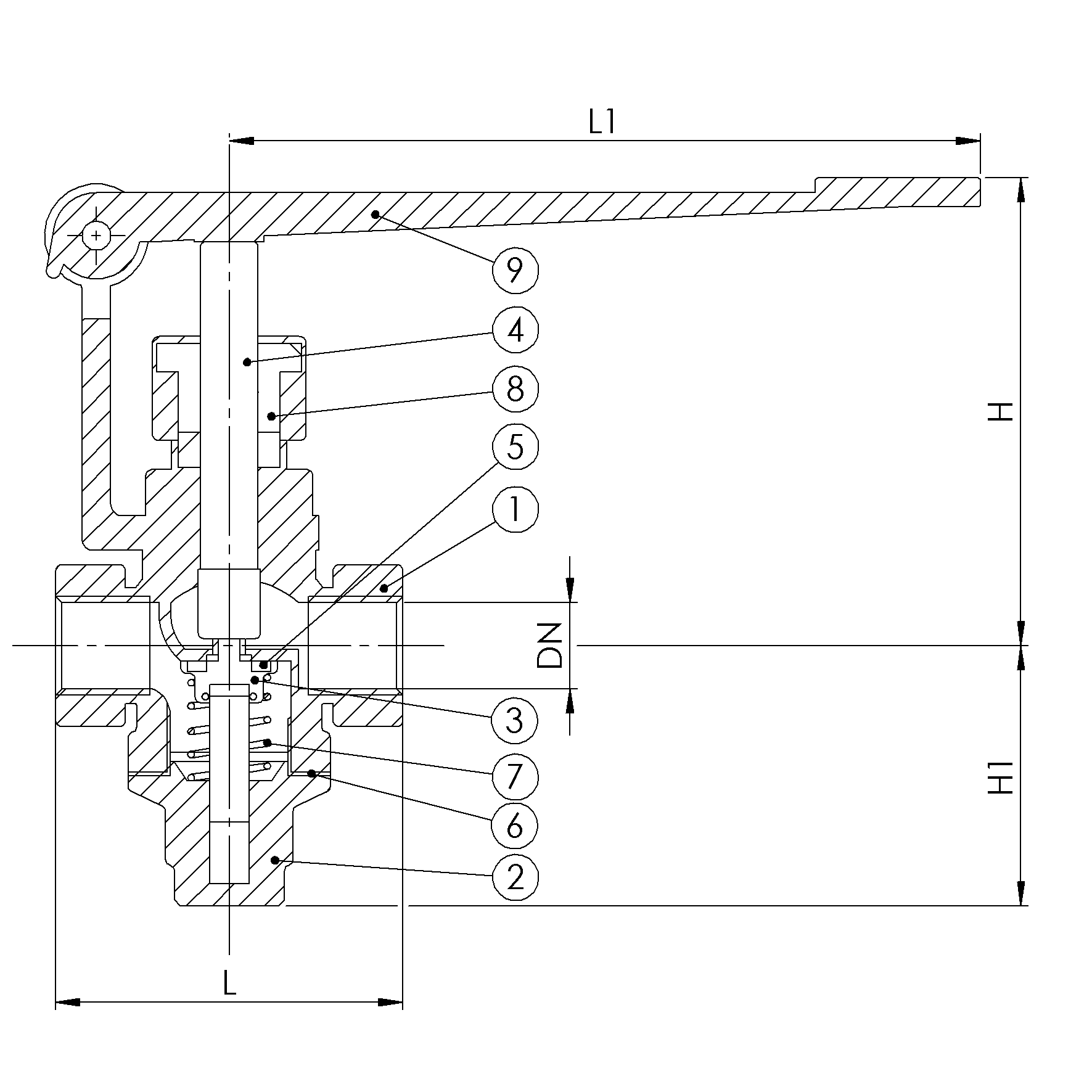

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Brass | CW 614N |
| 3 | Disc | Brass | CW 614N |
| 4 | Stem | Brass | CW 614N |
| 5 | Disc seal | PTFE | |
| 6 | Gasket | Asbestos Free | SIL C4400 |
| 7 | Spring | Stainless Steel | |
| 8 | Gland packing | Fiber | AF15/MA |
| 9 | Lever | Brass | CW 614N |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | H1 |
|---|---|---|---|---|---|---|---|
| 32 | 16 | 96 | 1.6 | 160 | 1 1/4" | 131 | 59 |
