Foot Valve DN50 PN10
Details

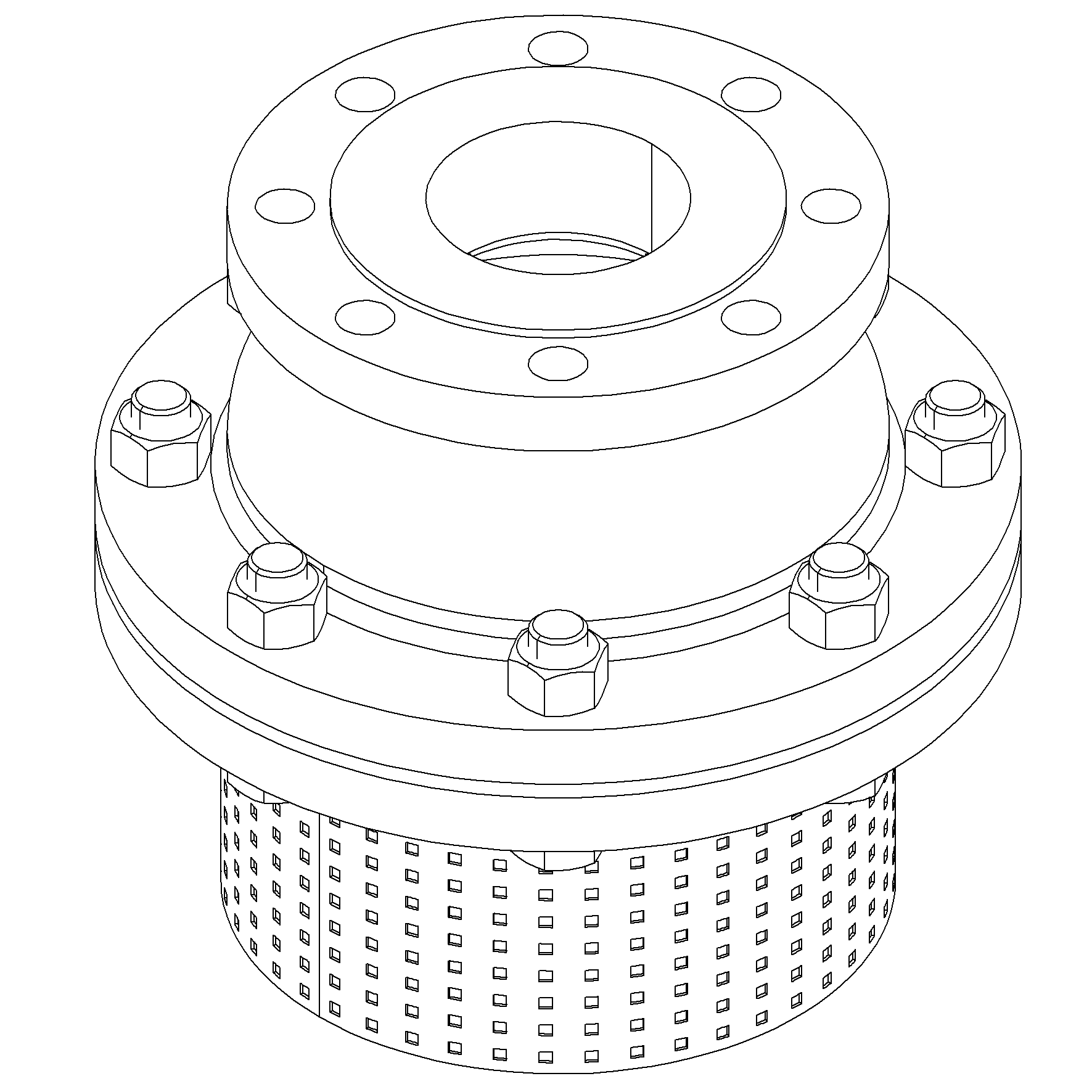

Cast Iron body, combination of screened suction inlet and soft sealing disc check valve. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 485451 |
| Material Body | Cast Iron |
| Min temperature | -10°C |
| Remark | Connection: PN10 |
| Throughput Direction | Straight |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Cargo oil, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 50 |
| Material Seat | EPDM |
| Material Disc | Cast Iron |
| Pressure Rating | PN10 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | 60-00000743 |
| Category | Valve |
| Mesh size | 5 mm |
| Max temperature | +120°C |

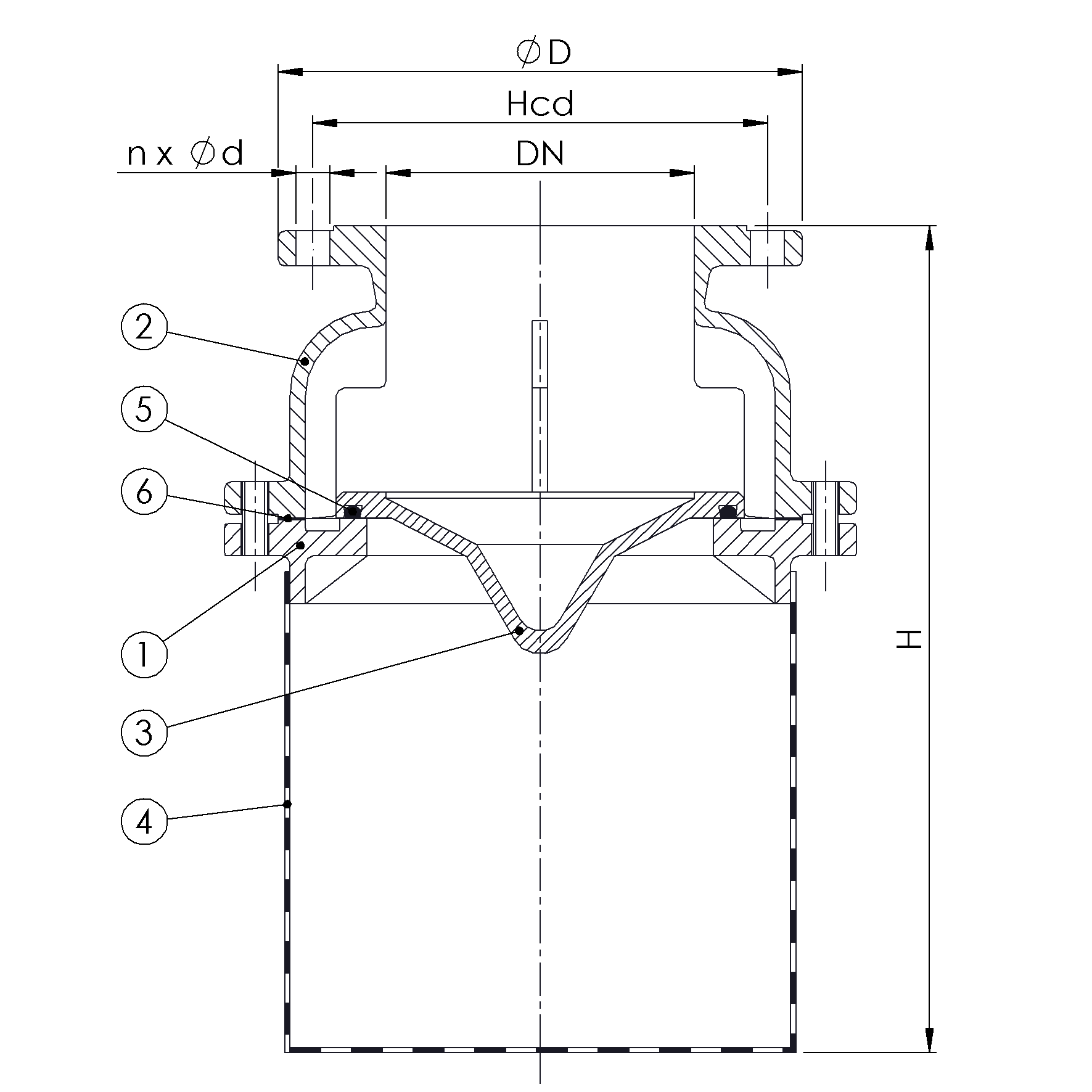

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Disc | Cast Iron | GG25 |
| 4 | Basket | Stainless Steel | 1.4301 |
| 5 | Disc ring | EPDM | |
| 6 | Bonnet Gasket | EPDM |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | Kg | H |
|---|---|---|---|---|---|---|
| 50 | 10 | 4x18 | 125 | 165 | 12 | 230 |
