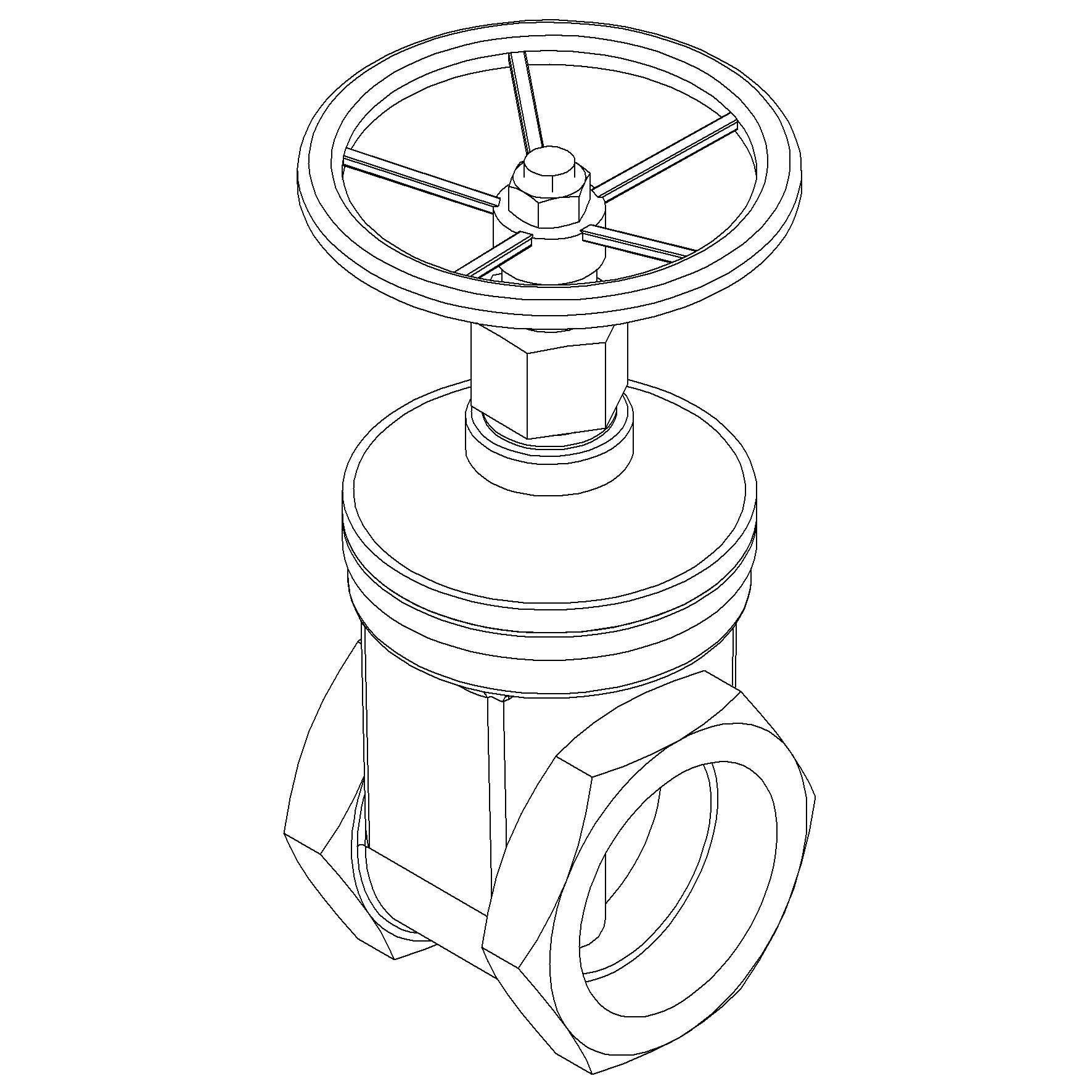

Gate Valve 2" PN16
Details
RG5 body gate valve, brass wedge. Non rising stem, screwed bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 400622 |
| Material Body | Bronze |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 50 |
| Material Disc | Brass |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | GATE |
| Item Number | 130-00000086 |
| Category | Valve |
| Inspection Standard | EN 12266 |
Partslist and details

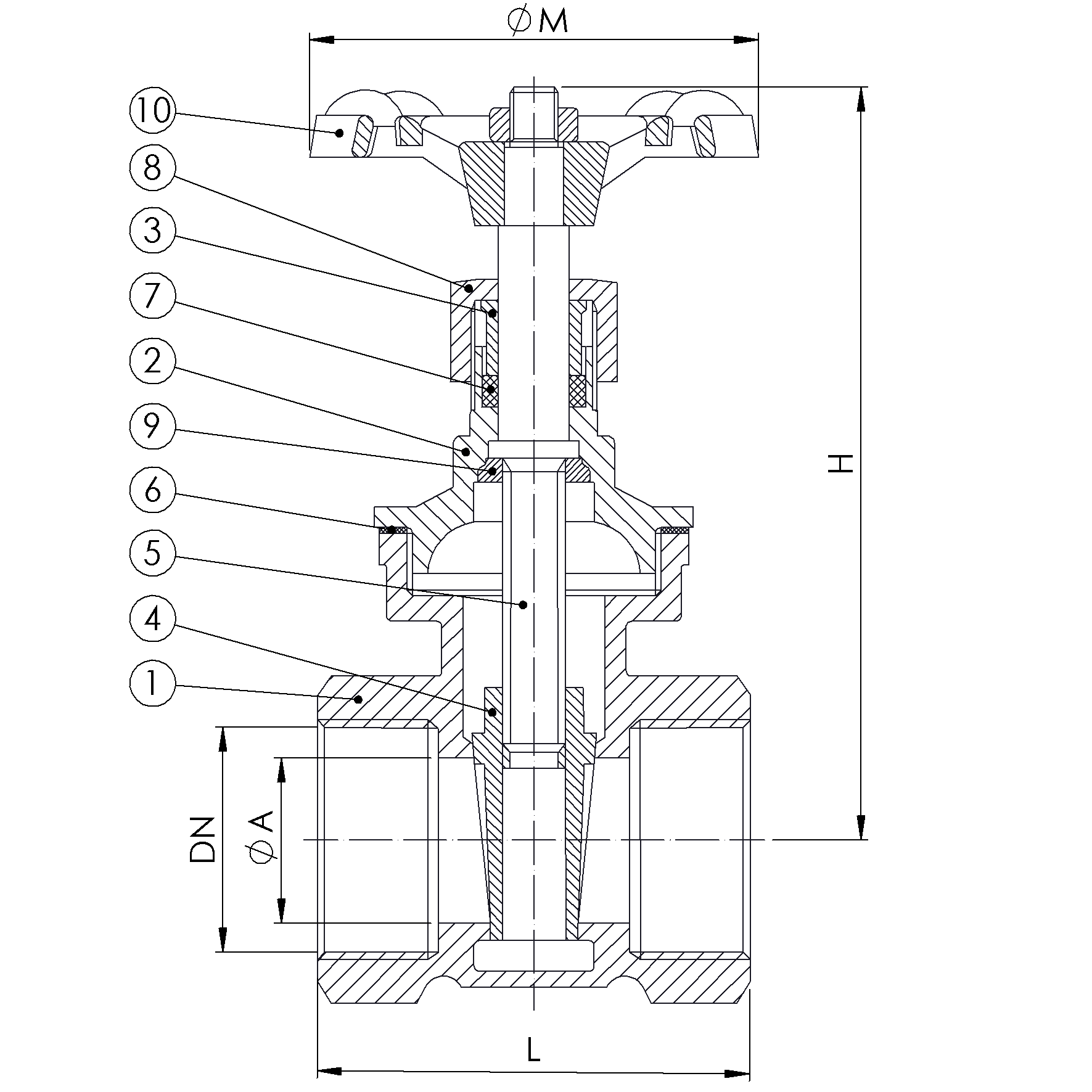

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Brass | CW 614N |
| 3 | Gland | Brass | CW 614N |
| 4 | Wedge | Brass | CW 614N |
| 5 | Stem | Brass | CW 614N |
| 6 | Bonnet Gasket | Heat Resistant Fiber | |
| 7 | Packing | Heat Resistant Fiber | AF/15MA |
| 8 | Gland nut | Brass | CW 614N |
| 9 | Stem nut | Brass | CW 614N |
| 10 | Handwheel | Steel |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø A | Ø M |
|---|---|---|---|---|---|---|---|
| 50 | 16 | 67 | 1.2 | 2" | 143 | 46.5 | 90 |
