Gate Valve 5K-250 mm
Details

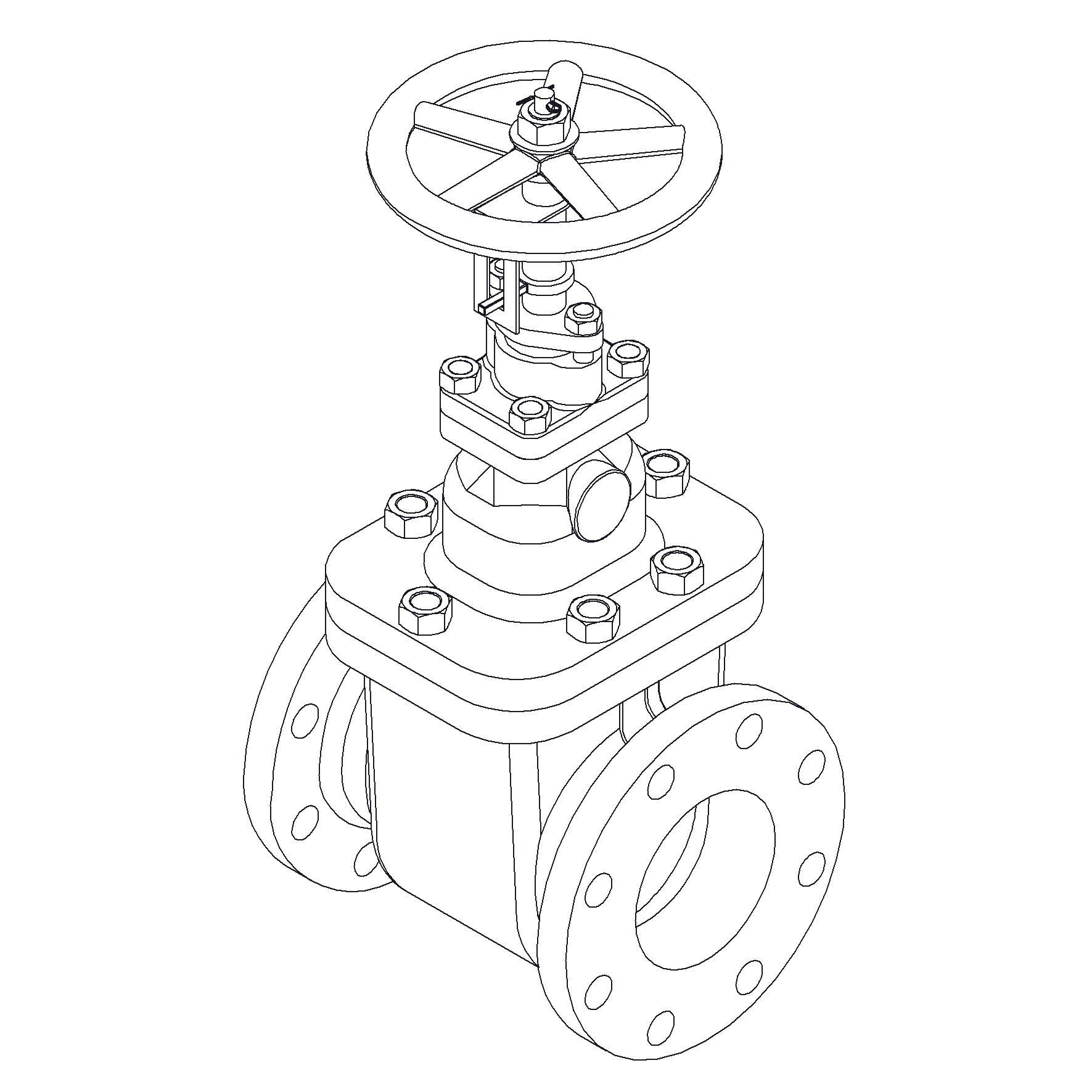

Cast Iron body gate valve, Cast Iron wedge, Bronze RG5 seat. Non rising stem with open/close indicator and bolted bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7363 |
| Material Body | Cast Iron |
| Remark | Connection: JIS 5K |
| Throughput Direction | Straight |
| End Standard | JIS B2220 |
| Design Code | JIS F7363 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water |
| Size | 250 |
| Material Seat | Bronze |
| Material Disc | Cast Iron |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000574 |
| Category | Valve |
| Inspection Standard | JIS F7400 |

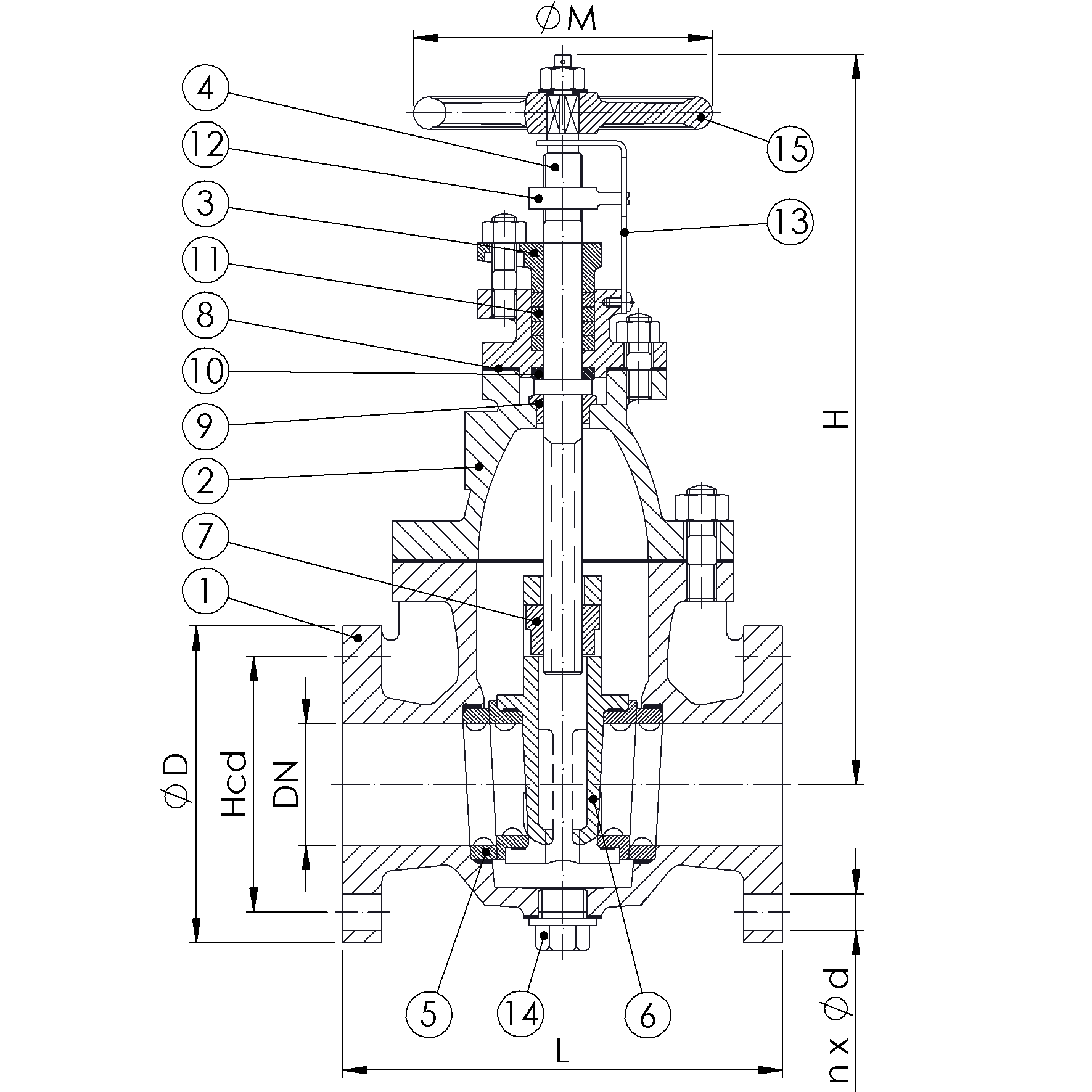

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | HT200 |
| 2 | Bonnet | Cast Iron | HT200 |
| 3 | Gland | Brass | H62 |
| 4 | Stem | Brass | H62 |
| 5 | Sealing ring | Bronze | ZCuSn5Pb5Zn5 |
| 6 | Wedge | Cast Iron | HT200 |
| 7 | Wedge nut | Brass | H62 |
| 8 | Gasket | Graphite | |
| 9 | Thrust bush | Brass | H62 |
| 10 | Thrust pad | Brass | H62 |
| 11 | Packing | Graphite | |
| 12 | Indicator | Brass | H62 |
| 13 | Indicator plate | Brass | H62 |
| 14 | Plug | Brass | H62 |
| 15 | Handwheel | Cast Iron | HT200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | H | Ø M |
|---|---|---|---|---|---|---|---|
| 250 | 5 | 12x23 | 345 | 385 | 330 | 800 | 355 |
