Gate Valve DN150 JIS 10K
Details

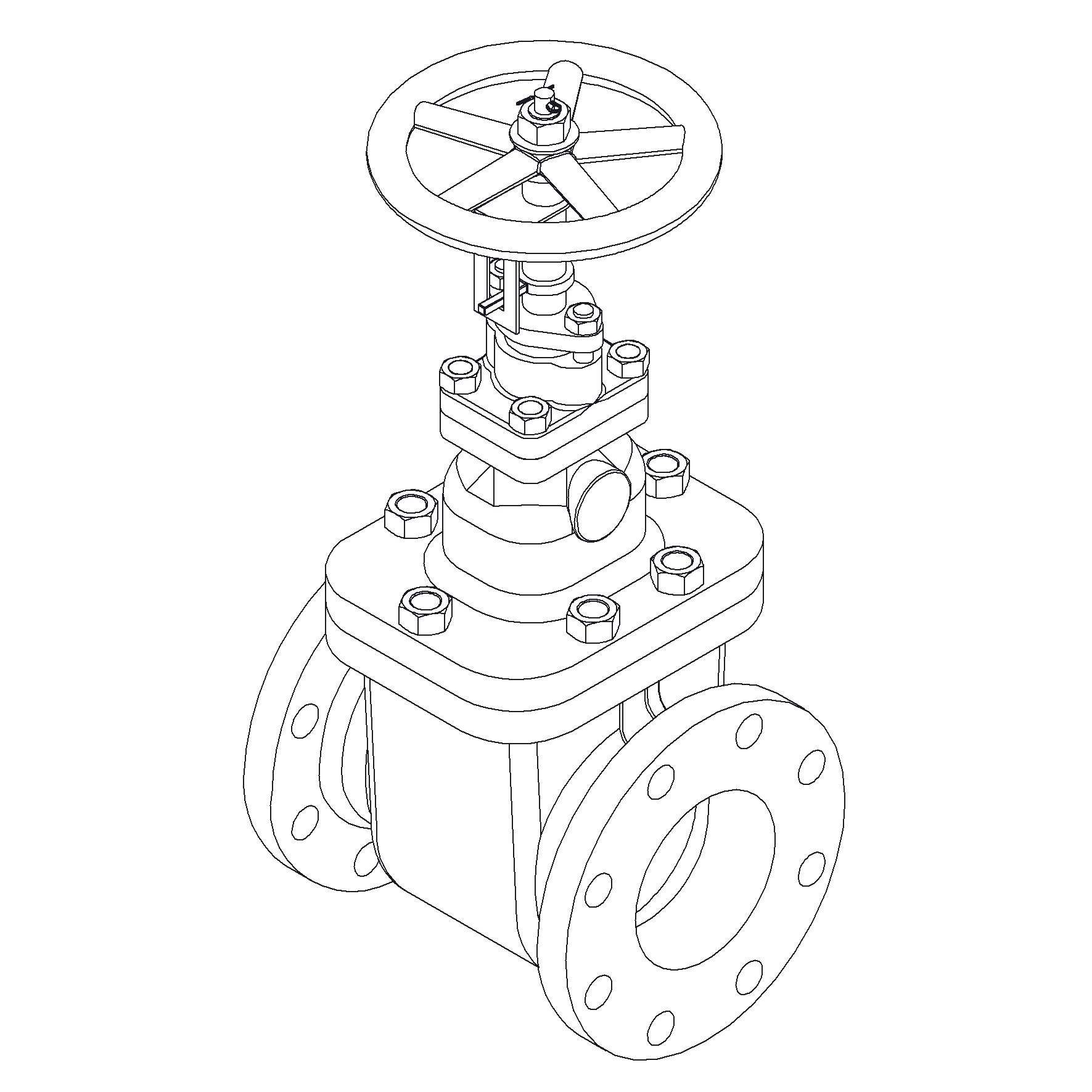

Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Non rising stem with open/close indicator and bolted bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7366 |
| Material Body | Cast Steel |
| Remark | Connection: JIS 10K |
| Throughput Direction | Straight |
| End Standard | JIS B2220 |
| Design Code | JIS F7366 |
| Standard | JIS |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Water |
| Size | 150 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Pressure Rating | JIS 10K |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000599 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
Partslist and details

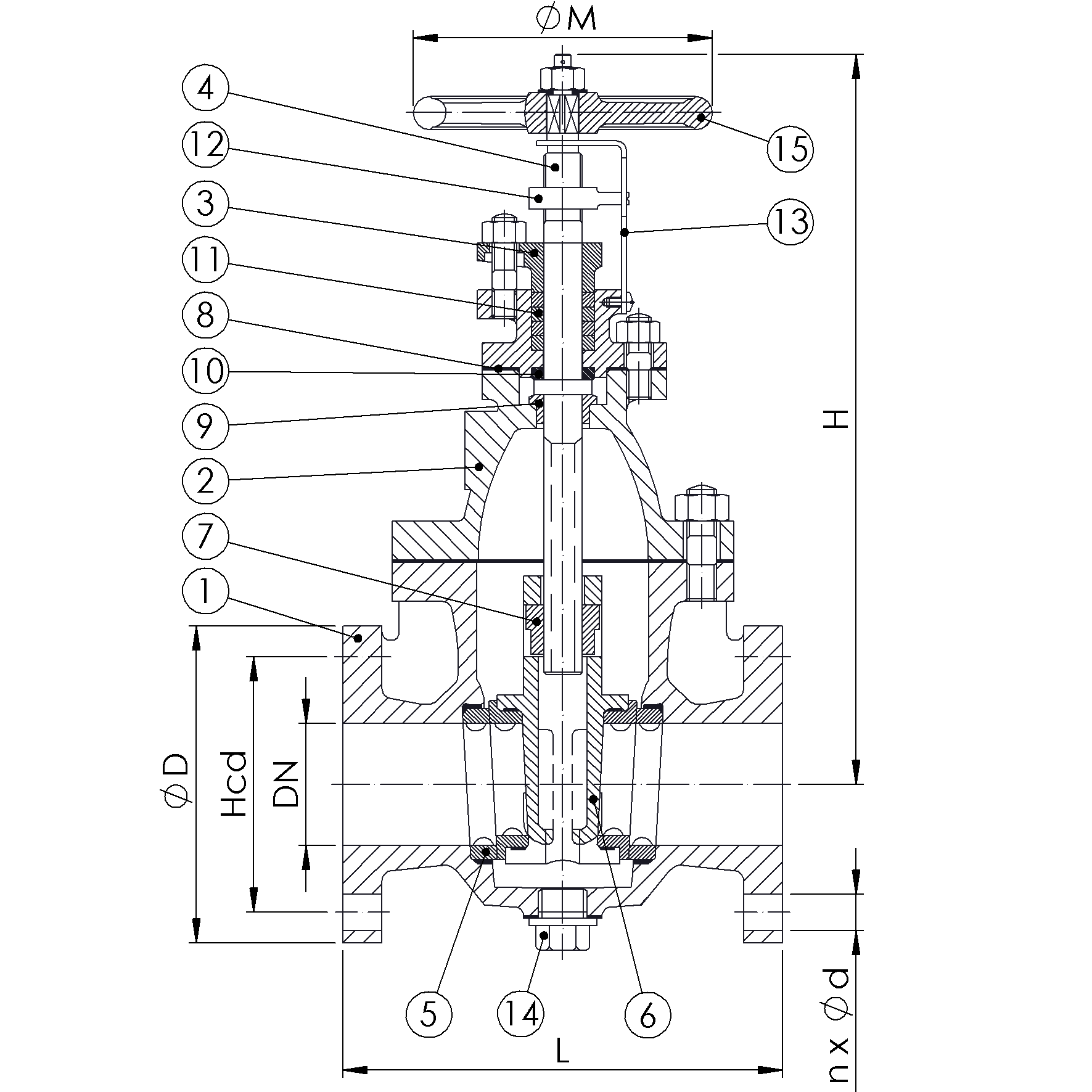

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ZG230-450 |
| 2 | Bonnet | Cast Steel | ZG230-450 |
| 3 | Gland | Stainless Steel | 2Cr13 |
| 4 | Stem | Stainless Steel | 2Cr13 |
| 5 | Sealing ring | Stainless Steel | 2Cr13 |
| 6 | Wedge | Cast Steel | ZG230-450 |
| 7 | Wedge nut | Brass | H62 |
| 8 | Gasket | Graphite | |
| 9 | Thrust bush | Brass | H62 |
| 10 | Thrust pad | Brass | H62 |
| 11 | Packing | Graphite | |
| 12 | Indicator | Brass | H62 |
| 13 | Indicator plate | Brass | H62 |
| 14 | Plug | Brass | H62 |
| 15 | Handwheel | Cast Iron | HT200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 150 | 10 | 8x23 | 240 | 280 | 290 | 82.3 | 580 | 250 |
