Gate Valve DN40 JIS 5K
Details

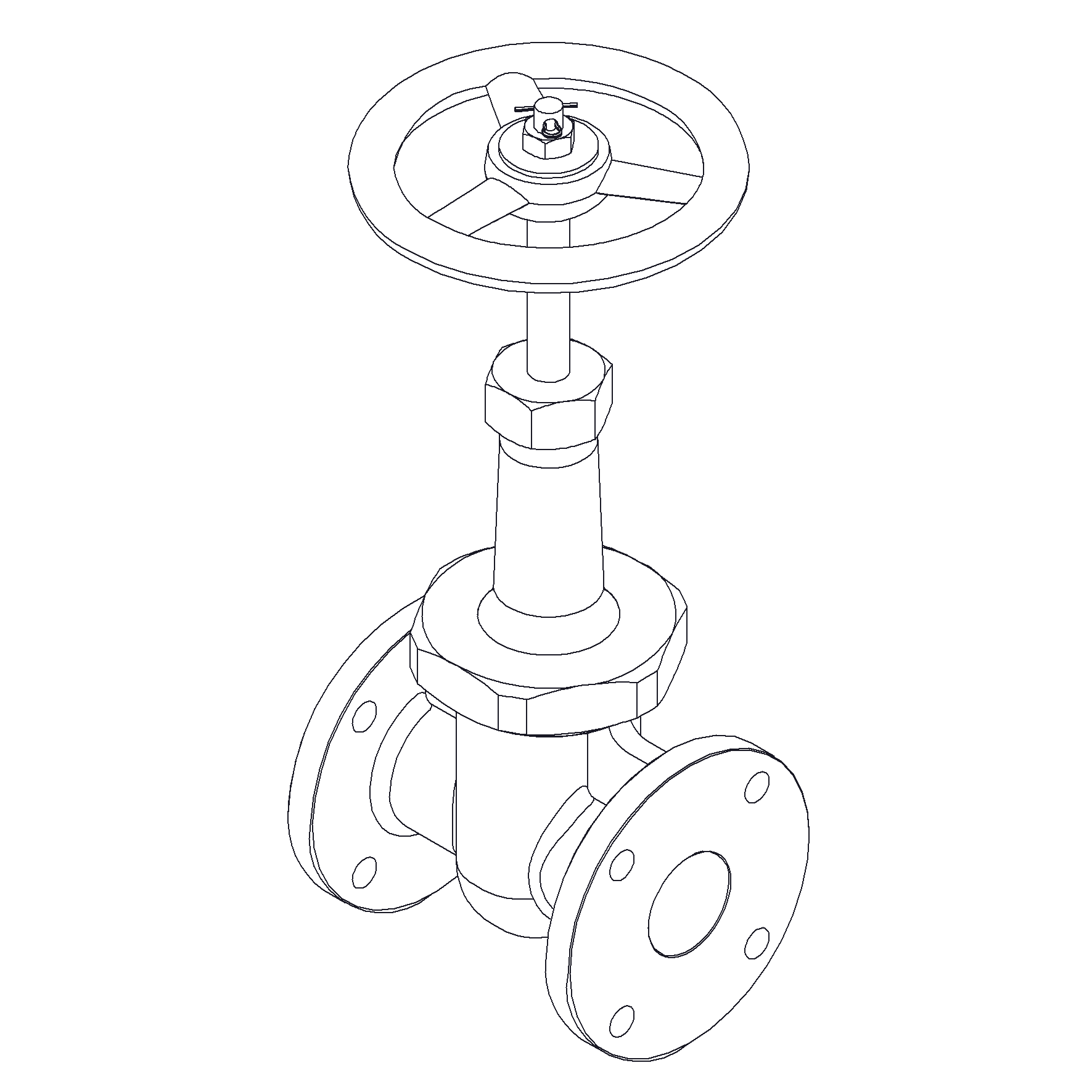

Bronze RG5 body gate valve, Bronze RG5 wedge. Rising stem and screwed bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7367 |
| Material Body | Bronze |
| Remark | Connection: JIS 5K |
| Throughput Direction | Straight |
| End Standard | JIS B2240 |
| Design Code | JIS F7367 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water |
| Size | 40 |
| Material Disc | Bronze |
| Pressure Rating | JIS 5K |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000609 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
Partslist and details

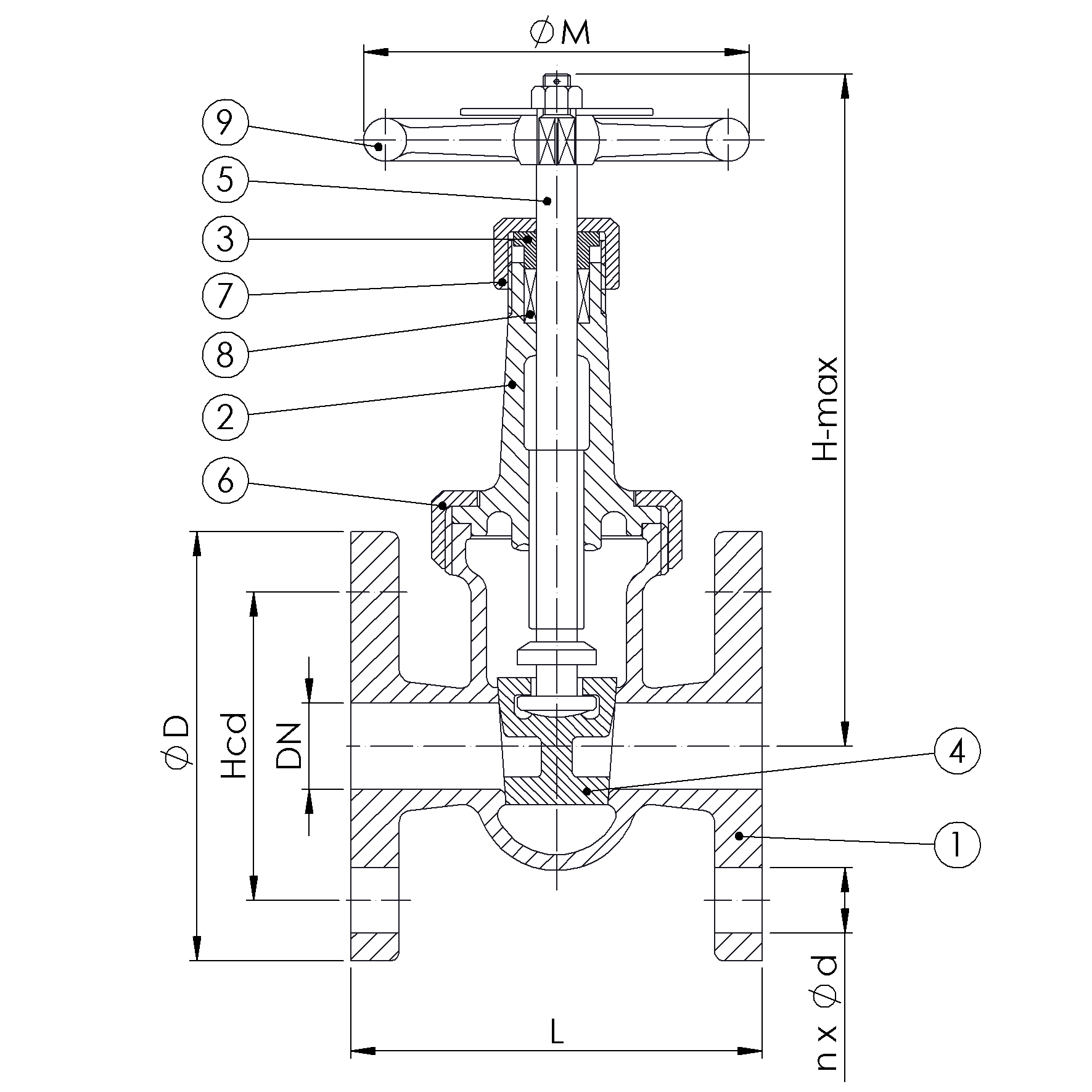

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | BC6 |
| 2 | Bonnet | Bronze | BC6 |
| 3 | Gland | Brass | C3771 BE |
| 4 | Wedge | Bronze | BC6 |
| 5 | Stem | Brass | C3771 BE |
| 6 | Union nut | Bronze | BC6 |
| 7 | Gland nut | Brass | C3771 BE |
| 8 | Packing | Graphite | |
| 9 | Handwheel | Cast Iron | FC 200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Hmax | Kg | Ø M |
|---|---|---|---|---|---|---|---|---|
| 40 | 5 | 4x15 | 95 | 120 | 140 | 290 | 7.8 | 125 |
