Gate Valve DN80 PN10
Details

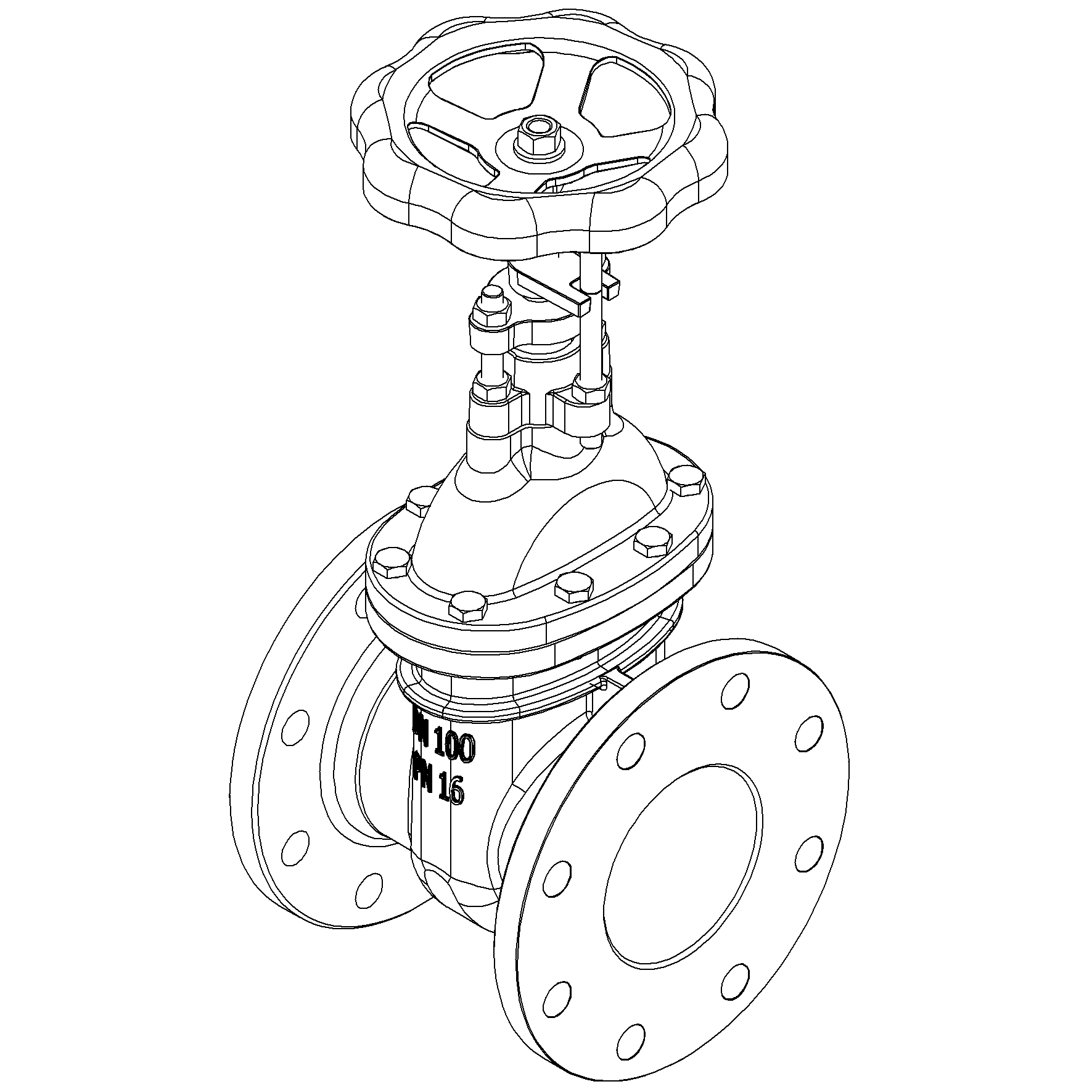

Cast Iron body gate valve, Cast Iron wedge, Stainless Steel seat. Non rising stem with open/close indicator and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 620151 |
| Material Body | Cast Iron |
| Remark | Connection: PN10 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | EN 1092-2 |
| Design Code | EN 1171 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 80 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Cast Iron |
| Pressure Rating | PN10 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000248 |
| Category | Valve |
Partslist and details

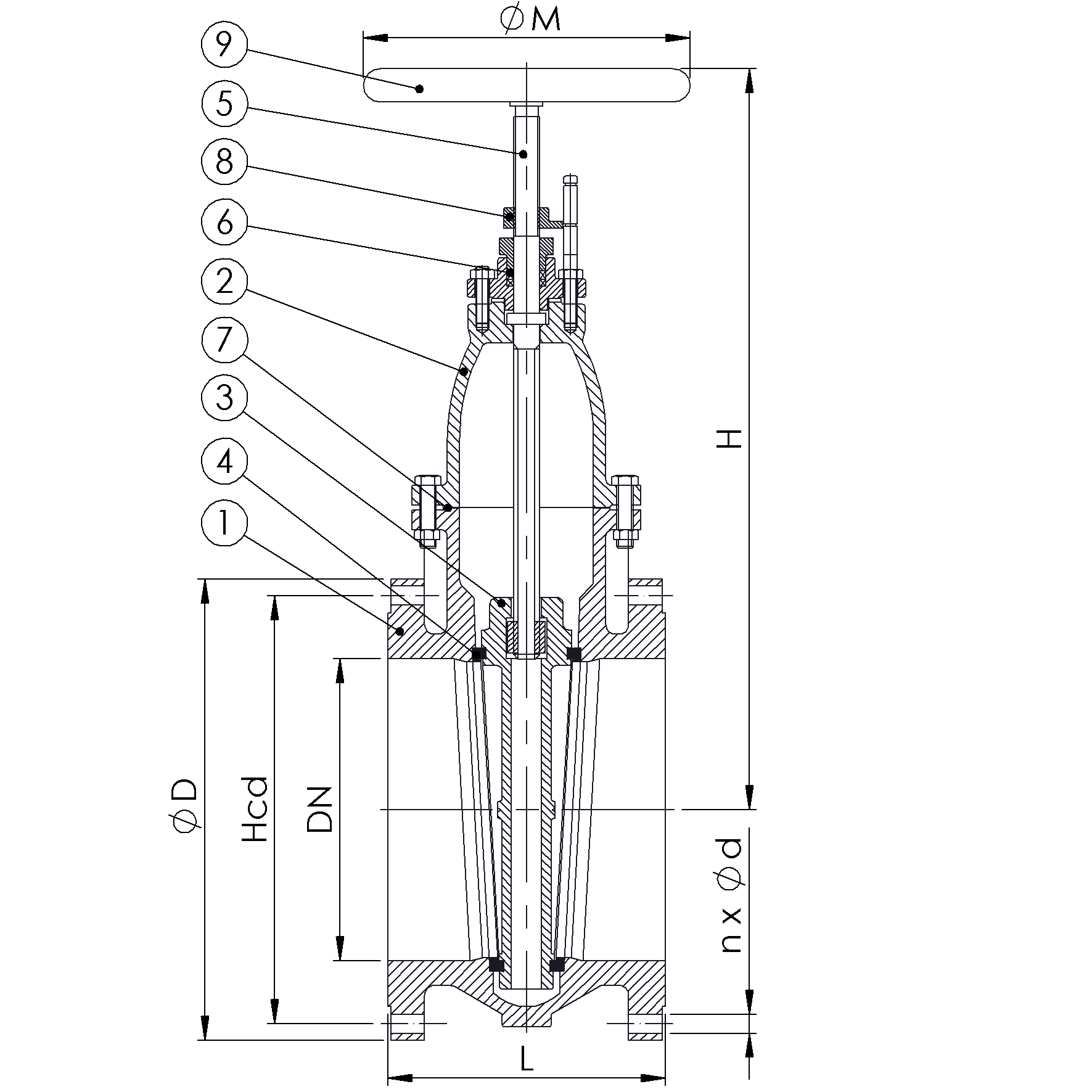

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Wedge | Cast Iron | GG25 |
| 4 | Seat | Stainless Steel | 1.4301 |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Gland packing | PTFE | |
| 7 | Bonnet gasket | Asbestos Free | |
| 8 | Indicator | Bronze | CC 491K |
| 9 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 80 | 10 | 8x18 | 160 | 200 | 180 | 20 | 325 | 160 |
