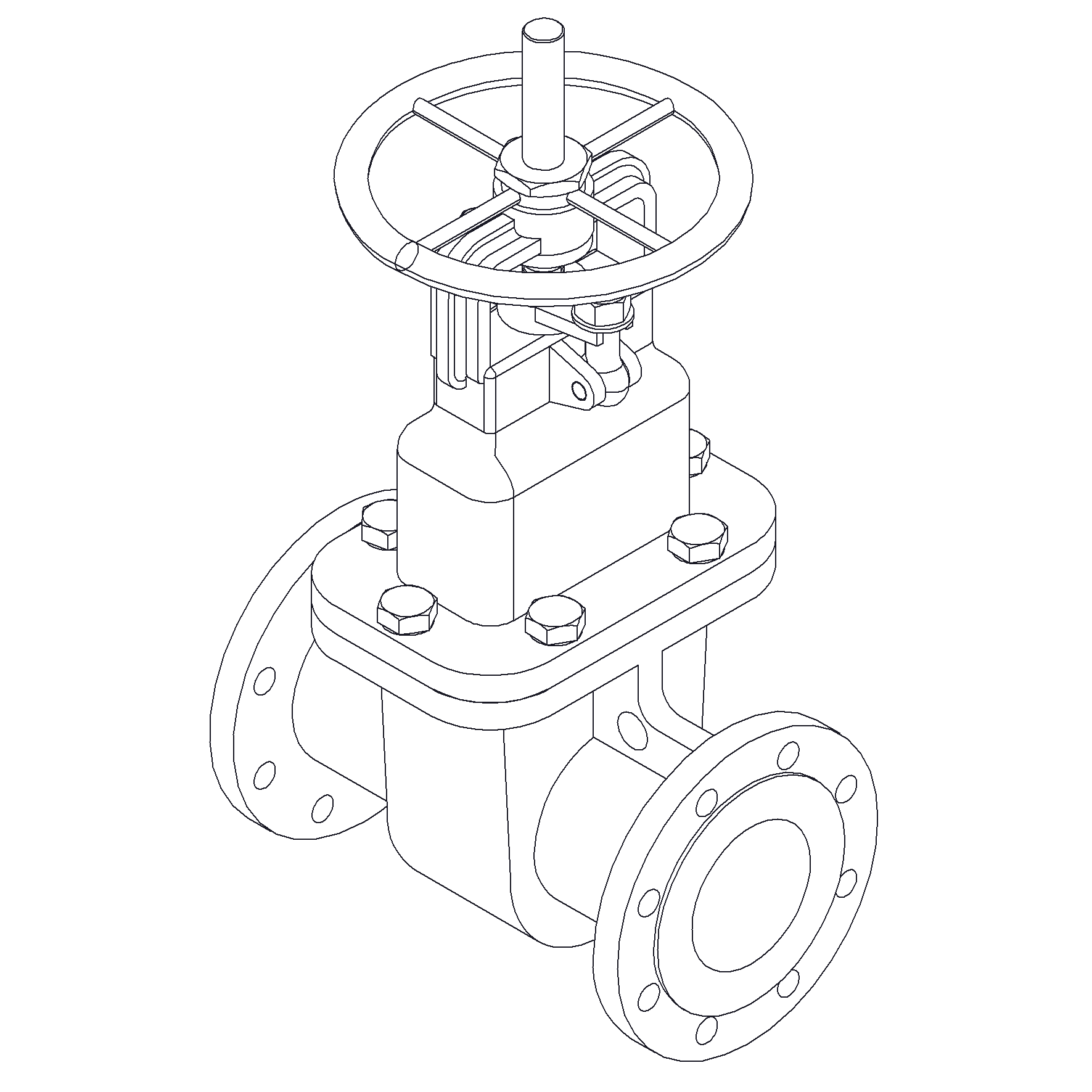

Gate Valve DN80 PN16
Details
Stainless Steel body gate valve, Stainless Steel wedge. Rising stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 621792 |
| Material Body | Stainless Steel, 316 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 14 |
| End Standard | DIN 2633 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 80 |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000548 |
| Category | Valve |
| Inspection Standard | EN 12266 |

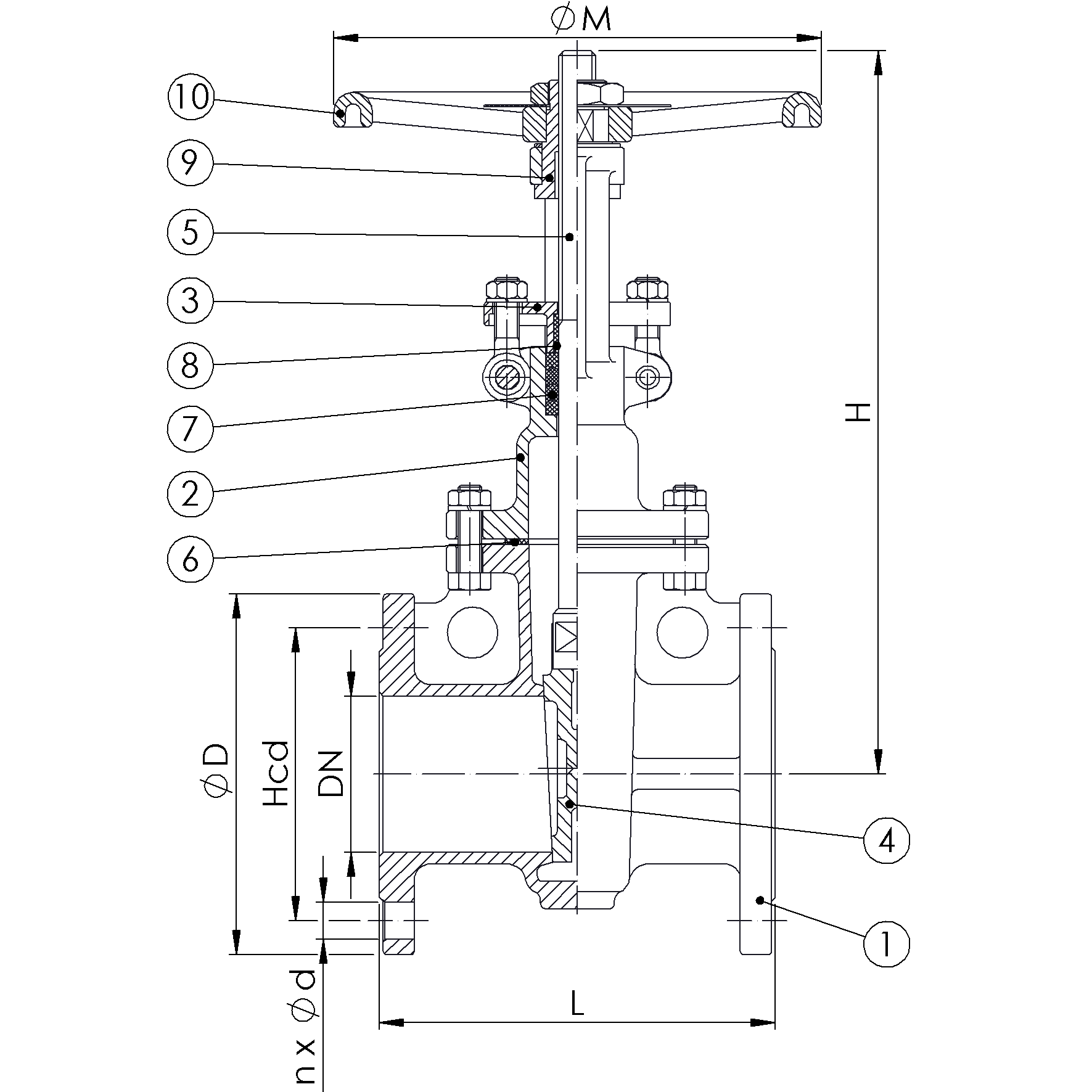

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 3 | Gland | Stainless Steel | 1.4308 |
| 4 | Wedge | Stainless Steel | 1.4408 |
| 5 | Stem | Stainless Steel | SUS316 |
| 6 | Bonnet gasket | PTFE | |
| 7 | Gland packing | PTFE | |
| 8 | Stem bushing | PTFE | |
| 9 | Yoke sleeve | Bronze | |
| 10 | Handwheel | Cast Iron | FCD |
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Bonnet | Stainless Steel | 1.4408 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 80 | 16 | 8x18 | 160 | 200 | 180 | 22 | 470 | 250 |
