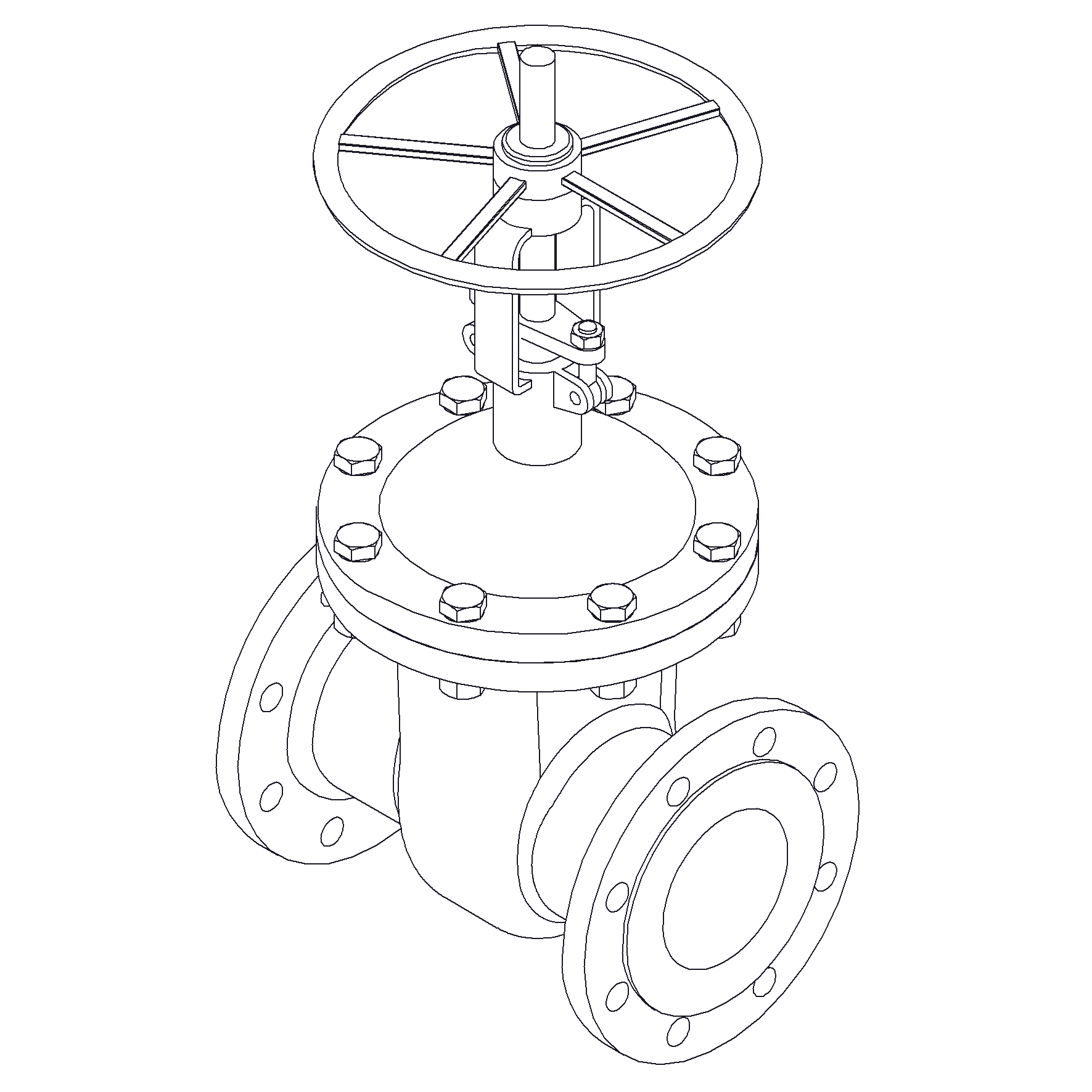

Gate Valve DN80 PN40
Details
Cast Steel body gate valve, Cast Steel wedge, Stainless Steel seat. Rising stem and bolted bonnet. Raised face flanges. Long type.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 620764 |
| Material Body | Cast Steel |
| Remark | Connection: PN40 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 15 |
| End Standard | EN 1092-1 |
| Design Code | EN 1984 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Gas, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 80 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Cast Steel |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Sub Category | GATE |
| Item Number | 130-00000501 |
| Category | Valve |
| Inspection Standard | EN 12266 |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ASTM A216-WCB |
| 2 | Bonnet | Cast Steel | ASTM A216-WCB |
| 3 | Wedge | Cast Steel | ASTM A216-WCB |
| 4 | Seat | Stainless Steel | Deposited 13Cr |
| 5 | Stem | Stainless Steel | ASTM A182-F6a |
| 6 | Bonnet Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Yoke | Cast Steel | ASTM A216-WCB |
| 9 | Stem nut | Aluminium Bronze | |
| 10 | Handwheel | Cast Iron |

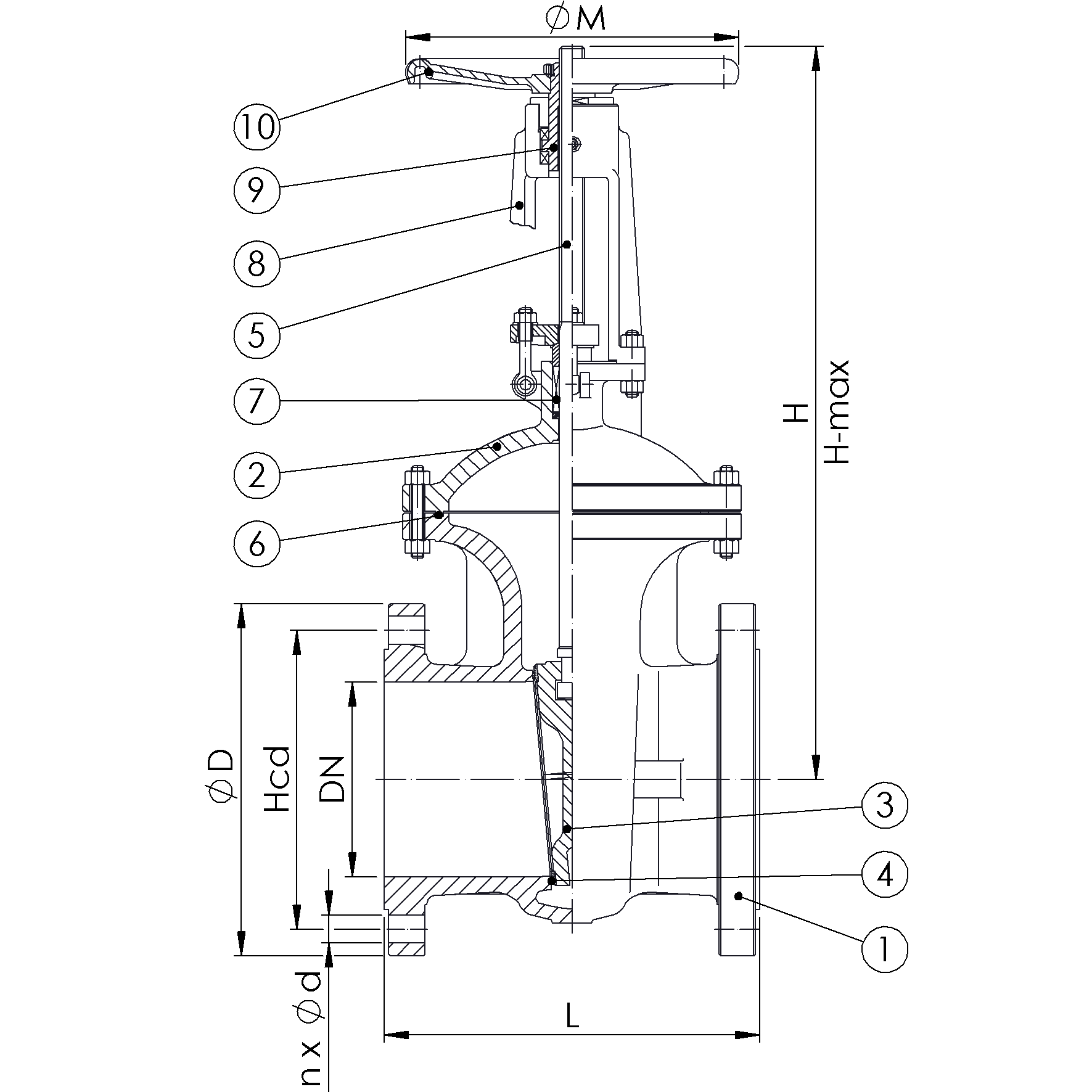

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Hmax | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 40 | 8x18 | 160 | 200 | 310 | 552 | 52 | 457 | 320 |
