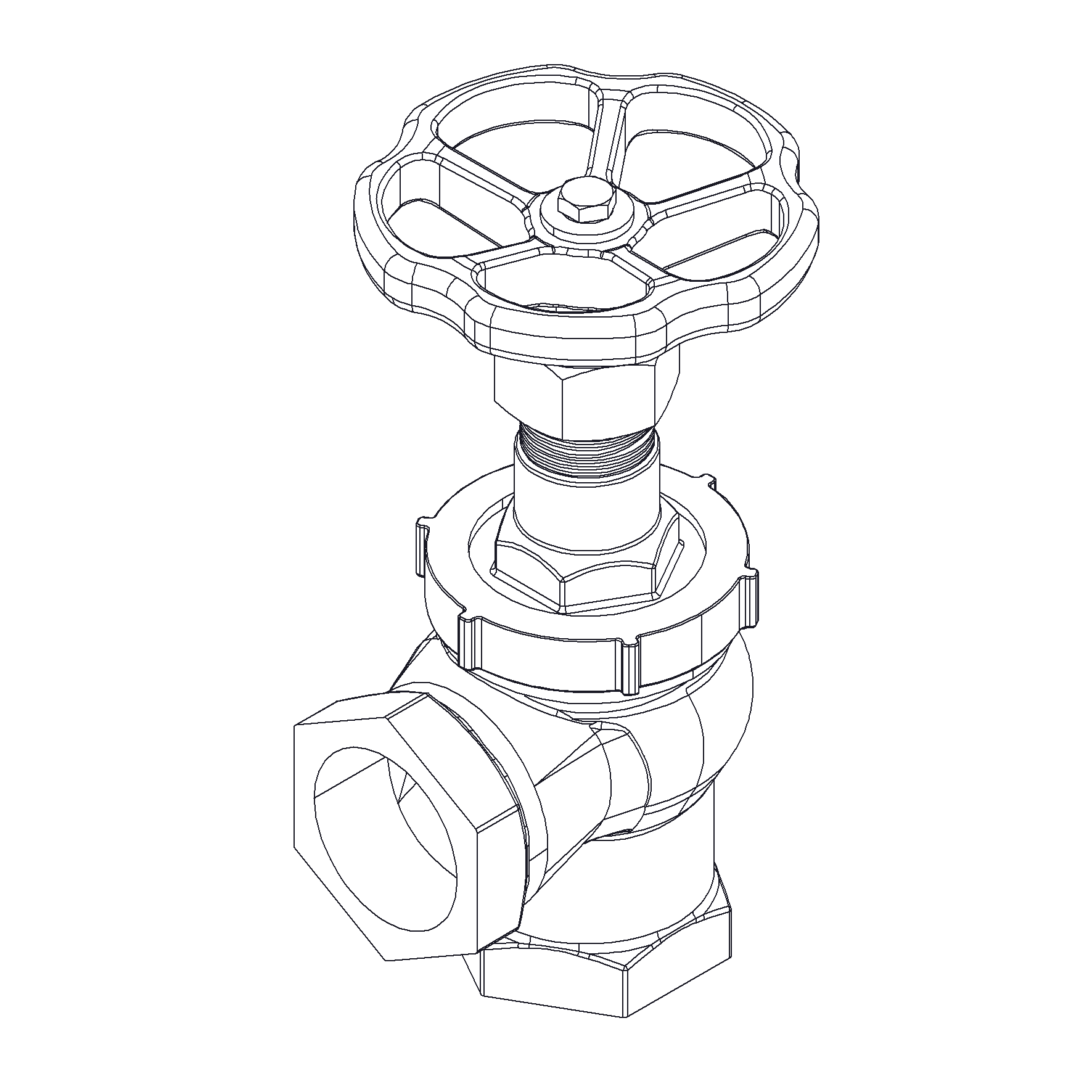

Globe Valve 1" PN16
Details
Angled type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 456122 |
| Material Body | Bronze |
| Min temperature | -10°C |
| Throughput Direction | Angled |
| End Standard | EN 10226-1 |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water |
| Size | 25 |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | GLOBE |
| Item Number | 150-00000193 |
| Category | Valve |
| Variant | SDSL |
| Max temperature | +200°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG5 |
| 3 | Gland | Brass | Ms58 |
| 4 | Disc | Bronze | RG5 |
| 5 | Stem | Special Brass | Som59 |
| 6 | Bonnet nut | Bronze | RG5 |
| 7 | Gland nut | Brass | Ms58 |
| 8 | Packing | Graphite | |
| 9 | Gasket | PTFE | |
| 10 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | Kg | L1 | Inch | H | L2 | Ø M |
|---|---|---|---|---|---|---|---|
| 25 | 16 | 1.2 | 50 | 1" | 115 | 45 | 80 |
