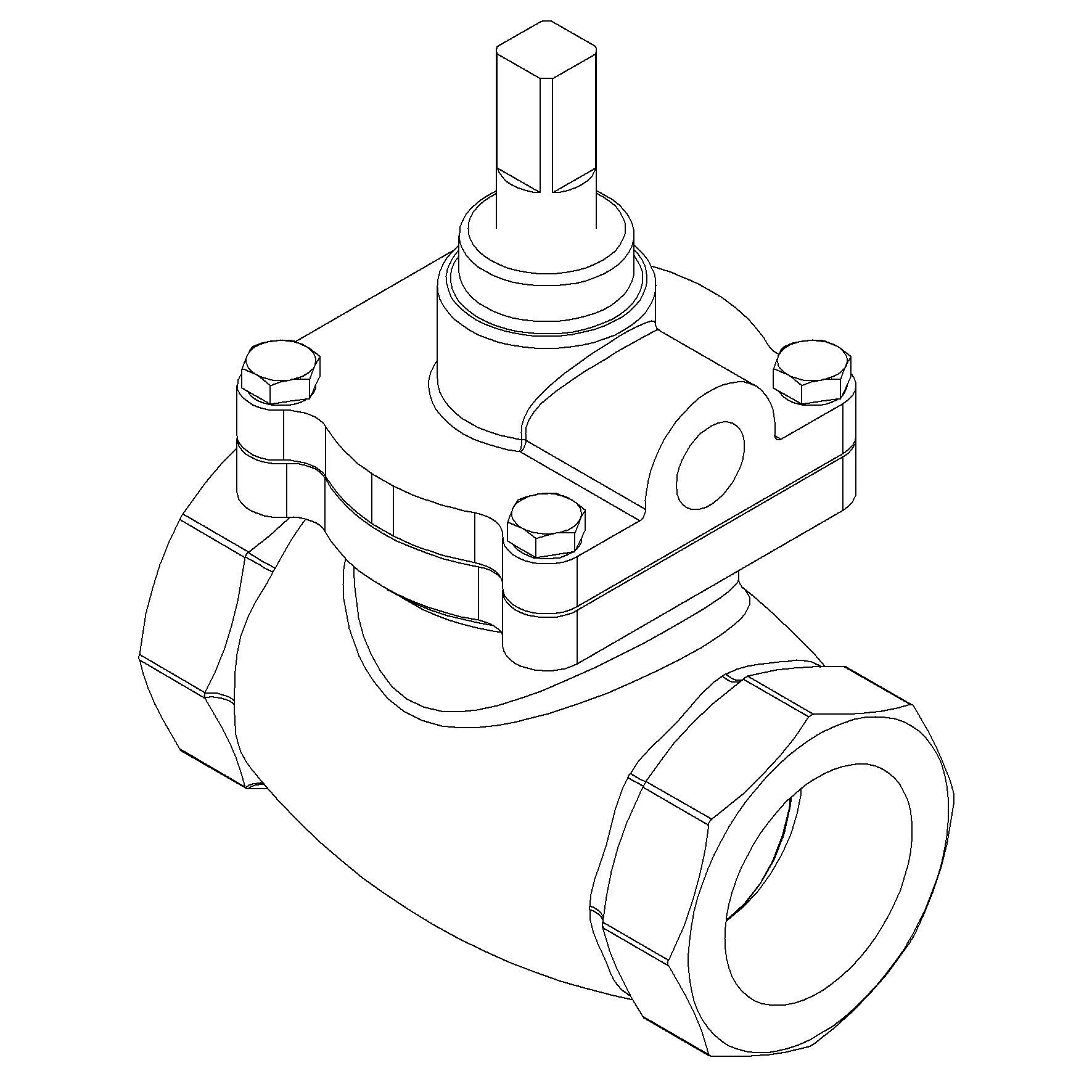

Globe Valve 1" PN16
Details
Straight type, Bronze RG5 body, soft seated globe valve with self-draining outlet side. Bolted bonnet. Female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 314122 |
| Material Body | Bronze |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 25 |
| Material Seat | Leather |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | GLOBE |
| Item Number | M80250 |
| Category | Valve |
| Variant | SDSL with drain |
| Max temperature | +30°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 491K |
| 3 | Stem | Brass | CW 710R |
| 4 | Gasket | Leather |
DETAILS
| DN | Pressure Rating Id | L | Kg | H | H1 | G | S | G1 |
|---|---|---|---|---|---|---|---|---|
| 25 | 16 | 90 | 1.1 | 125 | 50 | 1" | 9 | 1/4" |
