Globe Valve DN150 JIS 20K
Details

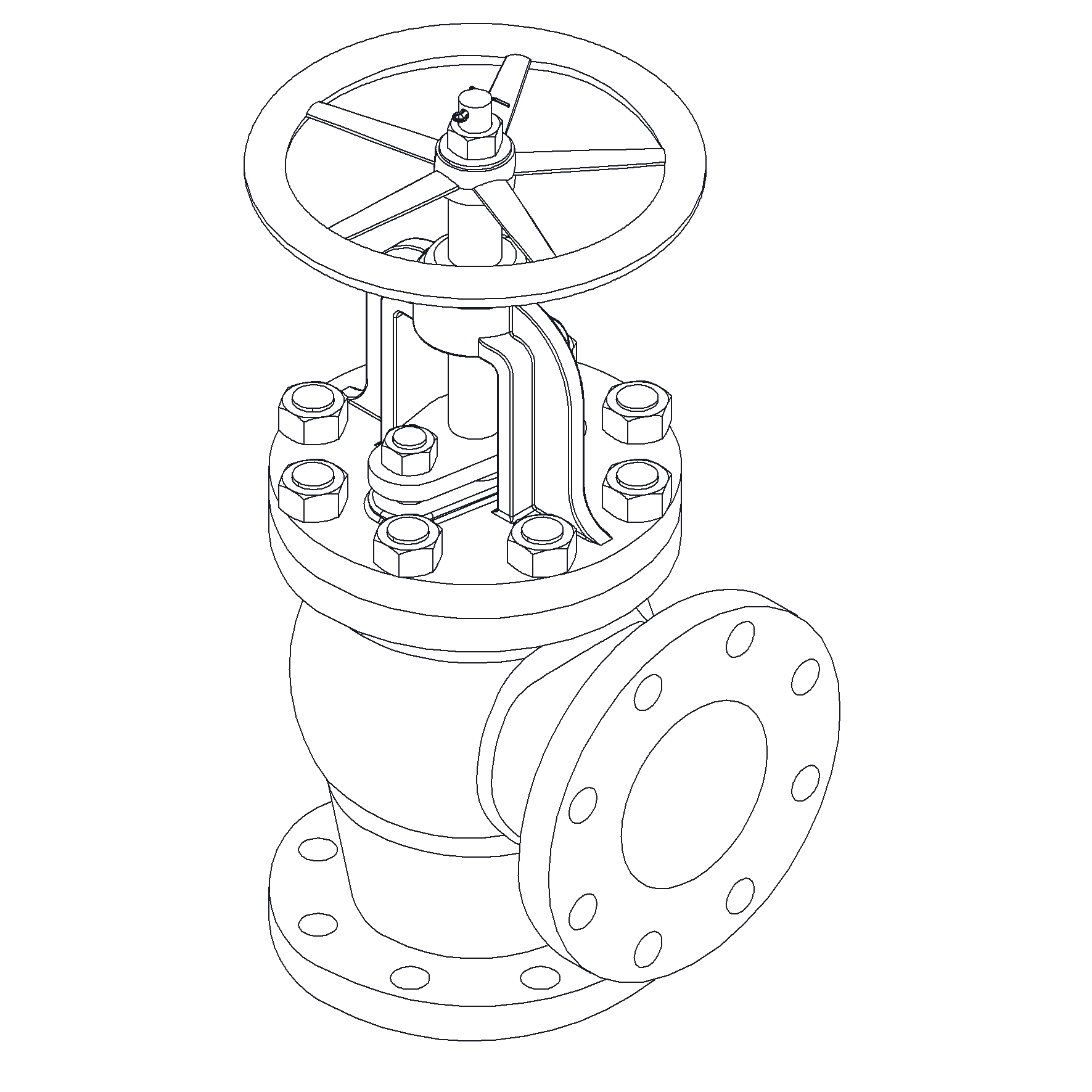

Angled type, Cast Steel body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7314 |
| Material Body | Cast Steel |
| Remark | Connection: JIS 20K |
| Throughput Direction | Angled |
| End Standard | JIS B2220 |
| Design Code | JIS F7314 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Water |
| Size | 150 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | JIS 20K |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00001788 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
| Variant | SDSL |

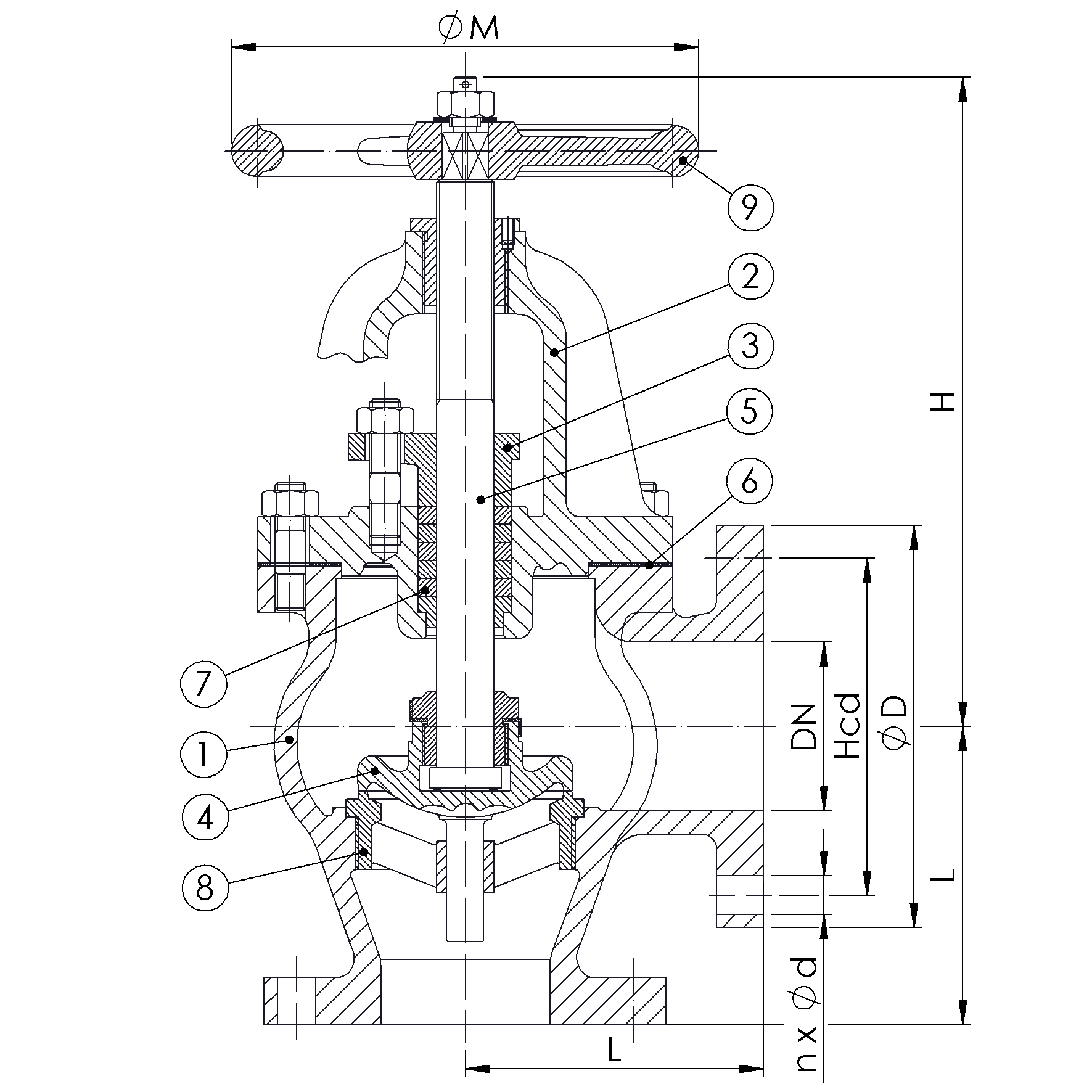

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ZG230-450 |
| 2 | Bonnet | Cast Steel | ZG230-450 |
| 3 | Gland | Stainless Steel | 2Cr13 |
| 4 | Disc | Stainless Steel | 2Cr13 |
| 5 | Stem | Stainless Steel | 2Cr13 |
| 6 | Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Sealing ring | Stainless Steel | 2Cr13 |
| 9 | Handwheel | Cast Iron | HT200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 150 | 20 | 12x25 | 260 | 305 | 225 | 112.3 | 460 | 355 |
