Globe Valve DN20 PN25
Details

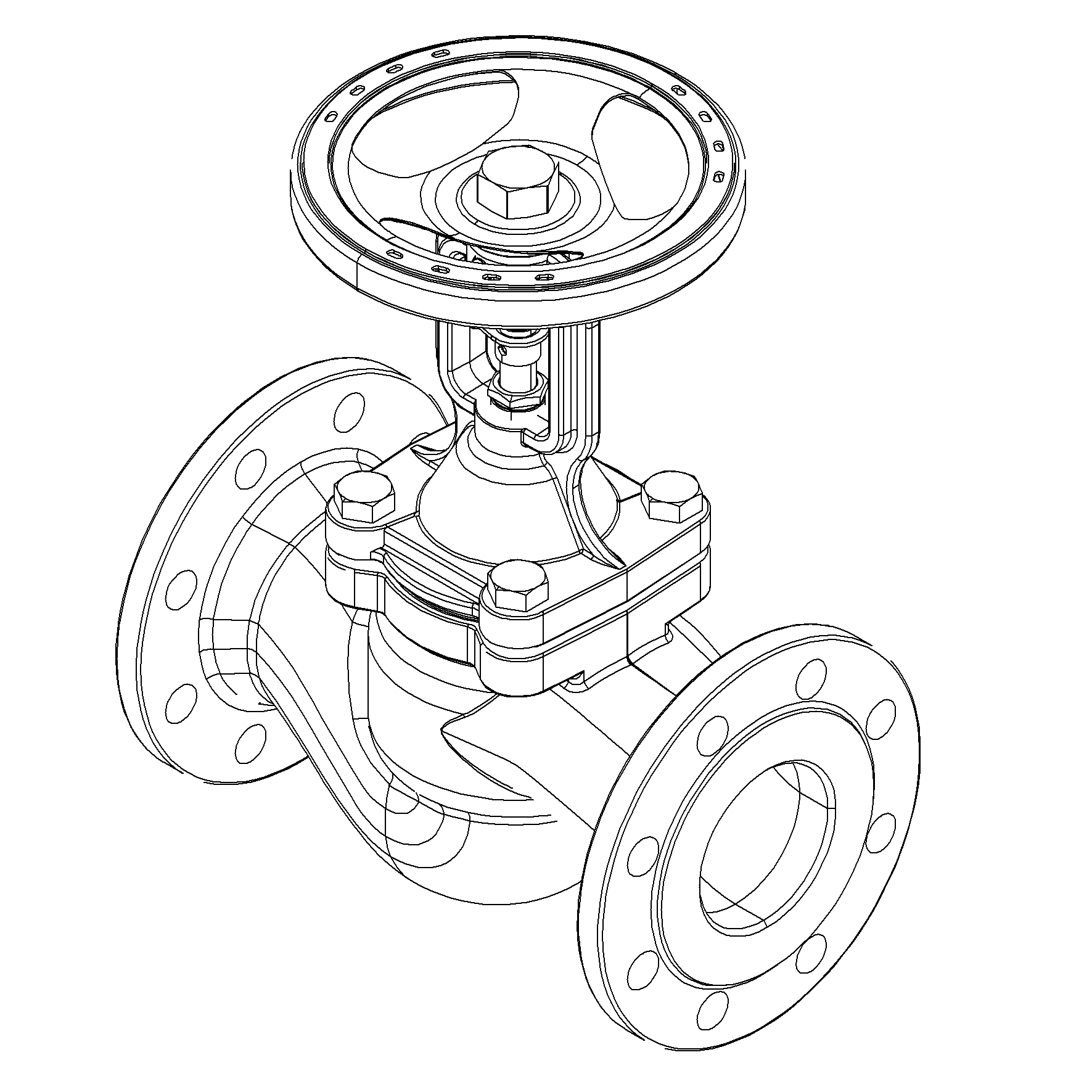

Straight type, Nodular Cast Iron body, metal seated globe valve with non-rising bellow sealed stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 467003 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Remark | Connection PN25 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Air, Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 20 |
| Material Seat | Stainless Steel, 410 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | PN25 |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00000707 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | SDSL |
| Execution | Bellow Sealed |
| Max temperature | +350°C |
Partslist and details

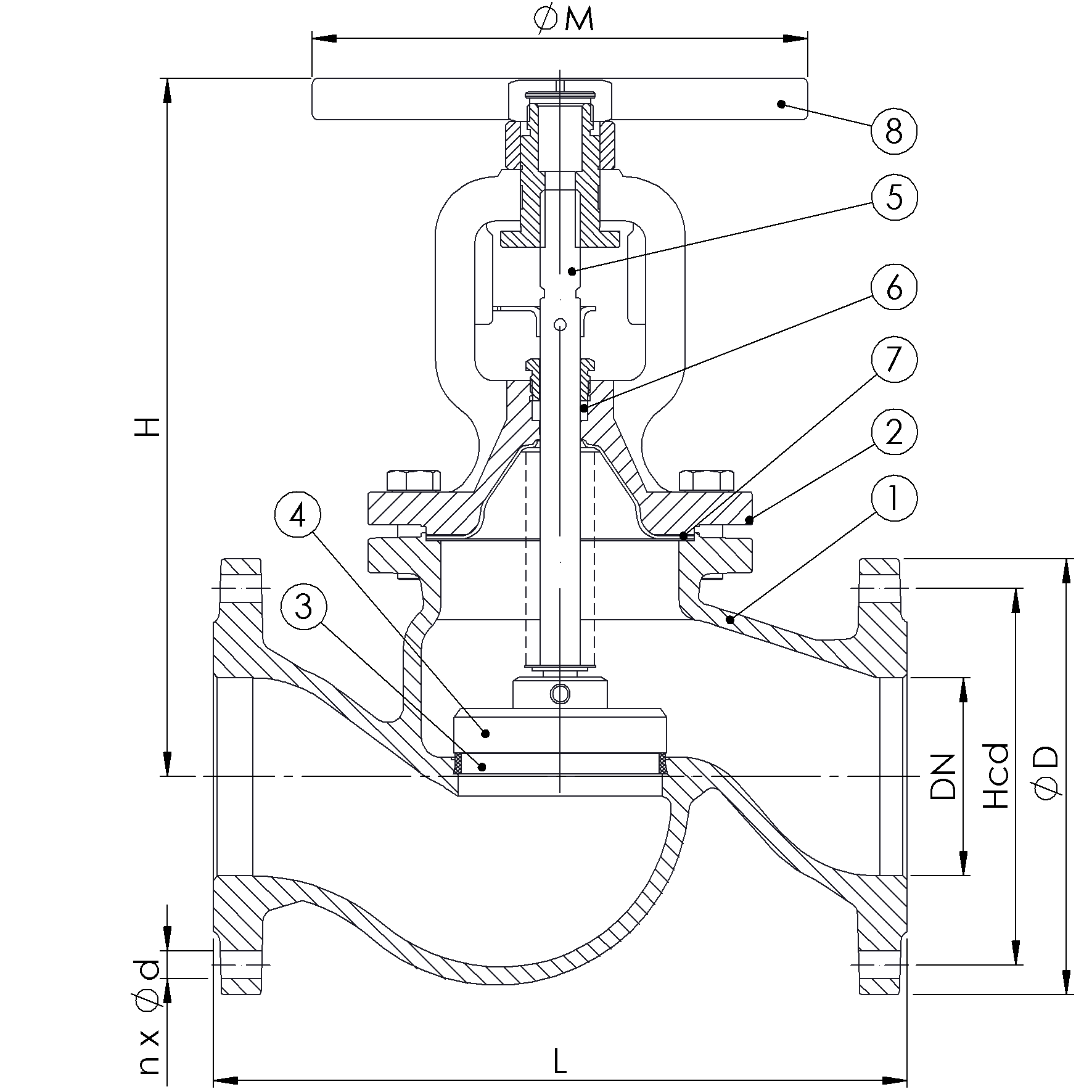

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Bonnet | Nodular Cast Iron | GGG40.3 |
| 3 | Seat | Stainless Steel | 1.4006 |
| 4 | Disc | Stainless Steel | 1.4021 |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite + CrNiSt | |
| 8 | Handwheel | Steel | |
| 9 | Bellow | Stainless Steel | 1.4571 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 20 | 25 | 4x14 | 75 | 105 | 150 | 3.9 | 178 | 125 |
