Globe Valve DN25 PN16
Details

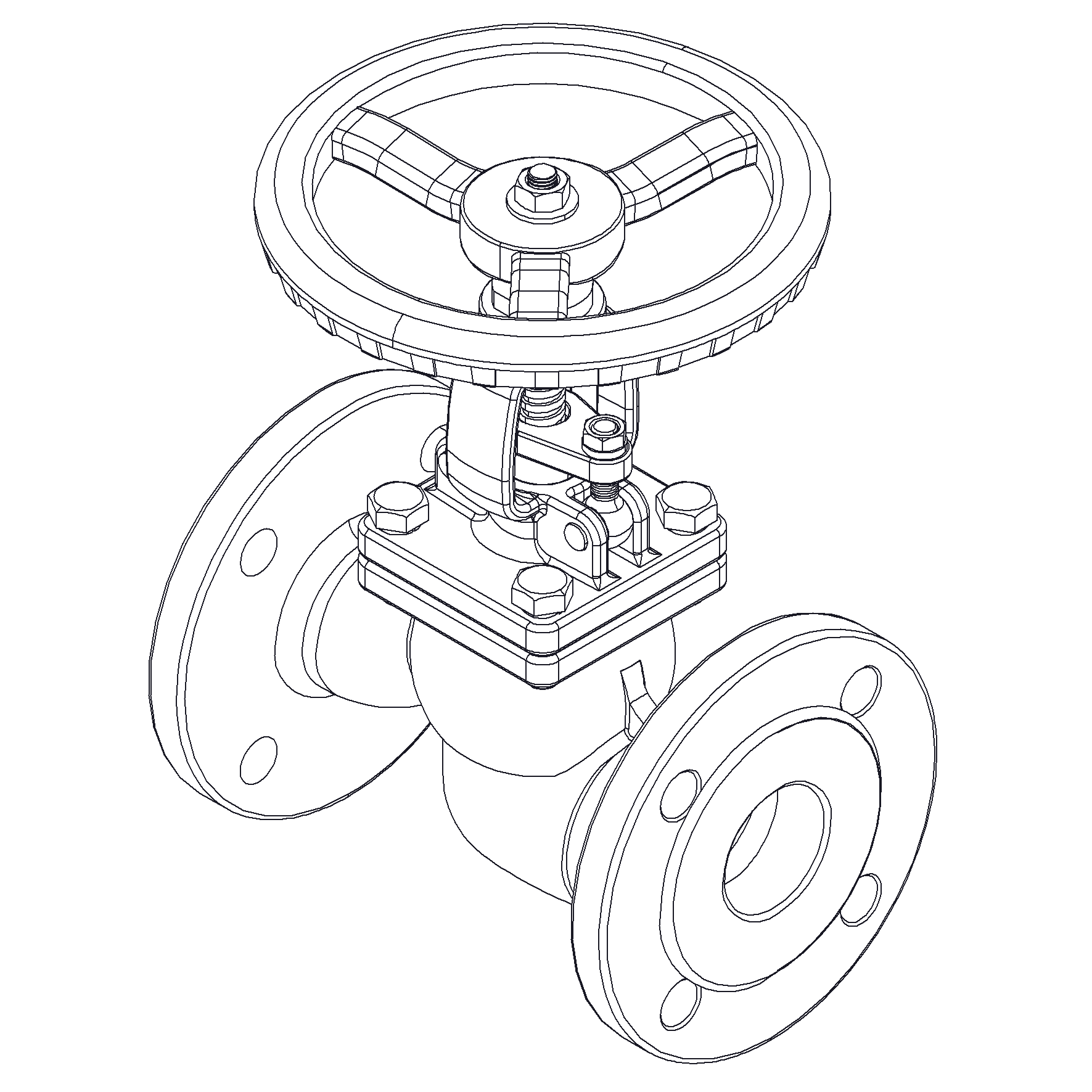

Straight type, Stainless Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 467092 |
| Material Body | Stainless Steel, 316 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | DIN 2633 |
| Design Code | ASME B16.34 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Thermal oil, Water |
| Size | 25 |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00001247 |
| Category | Valve |
| Inspection Standard | EN 12266 |
| Variant | SDSL |

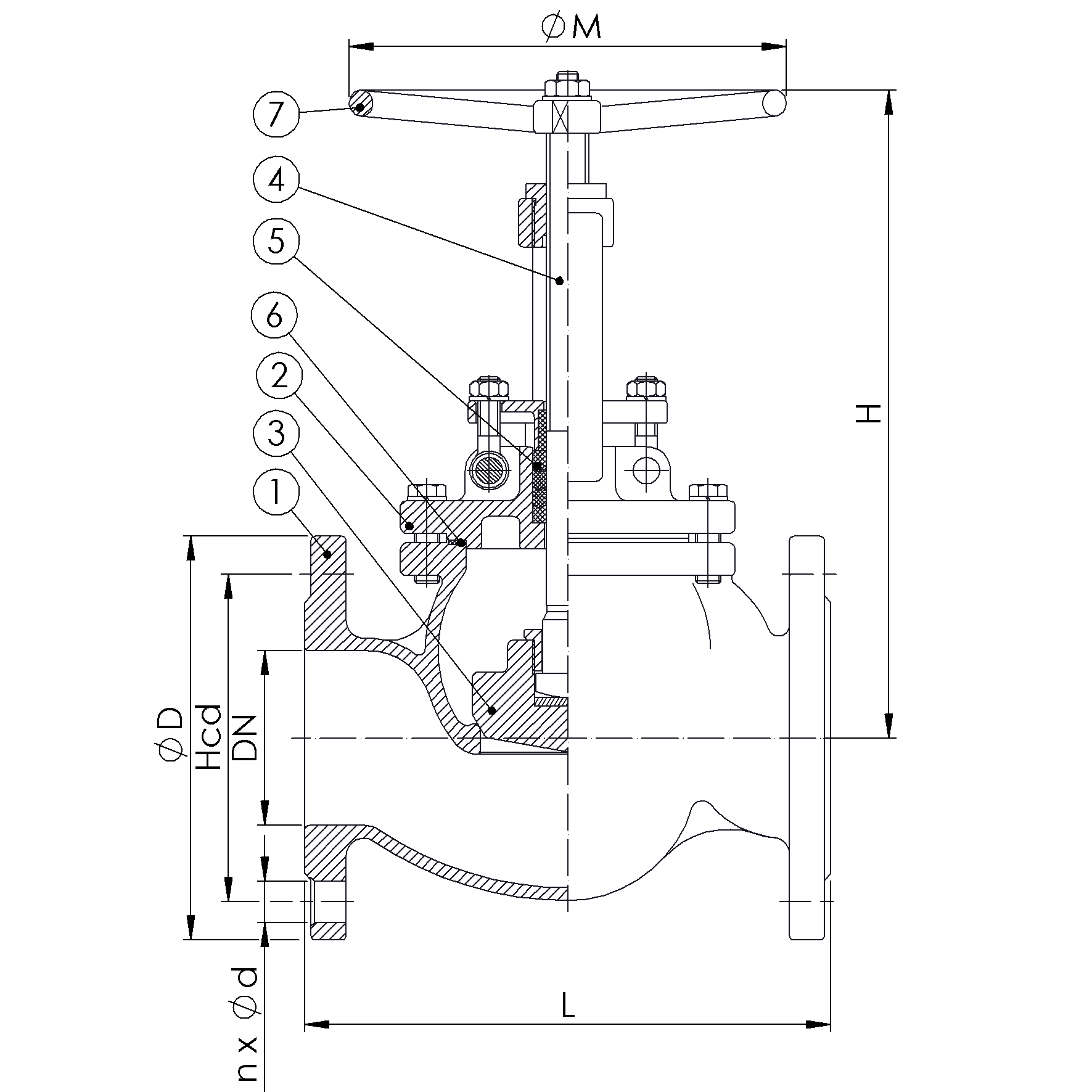

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4408 |
| 2 | Bonnet | Stainless Steel | 1.4408 |
| 3 | Disc | Stainless Steel | 1.4408 |
| 4 | Stem | Stainless Steel | SUS 316 |
| 5 | Gland packing | PTFE | |
| 6 | Gasket | PTFE | |
| 7 | Handwheel | Cast Iron | FCD 400 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 25 | 16 | 4x14 | 85 | 115 | 160 | 5.2 | 212 | 140 |
