Globe Valve DN32 JIS 16K
Details

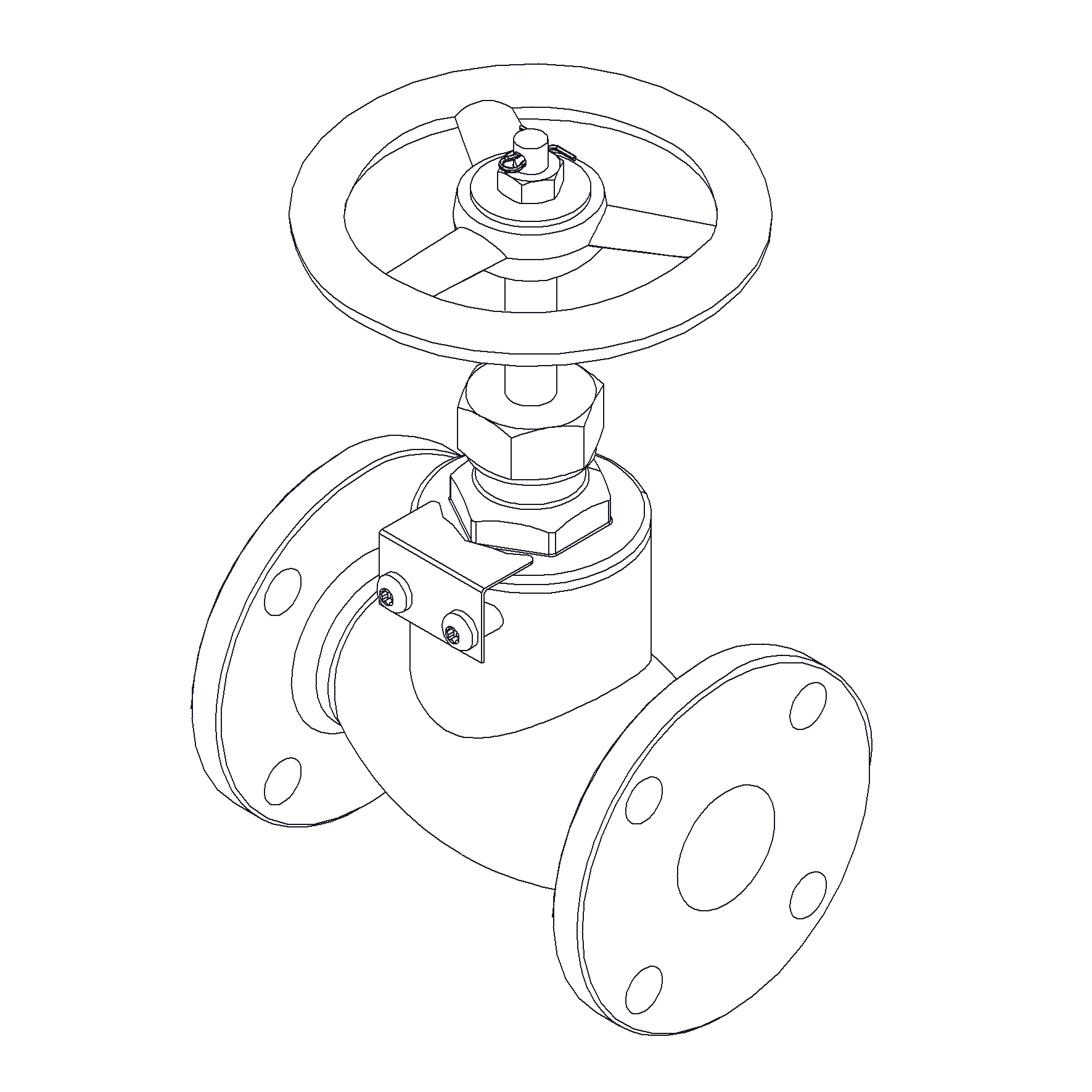

Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7303 |
| Material Body | Bronze |
| Remark | Connection: JIS 16K |
| Throughput Direction | Straight |
| End Standard | JIS B2240 |
| Design Code | JIS F7303 |
| Standard | JIS |
| Application | Boiler feedwater, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water |
| Size | 32 |
| Material Disc | Brass |
| Pressure Rating | JIS 16K |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00001663 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
| Variant | SDSL |

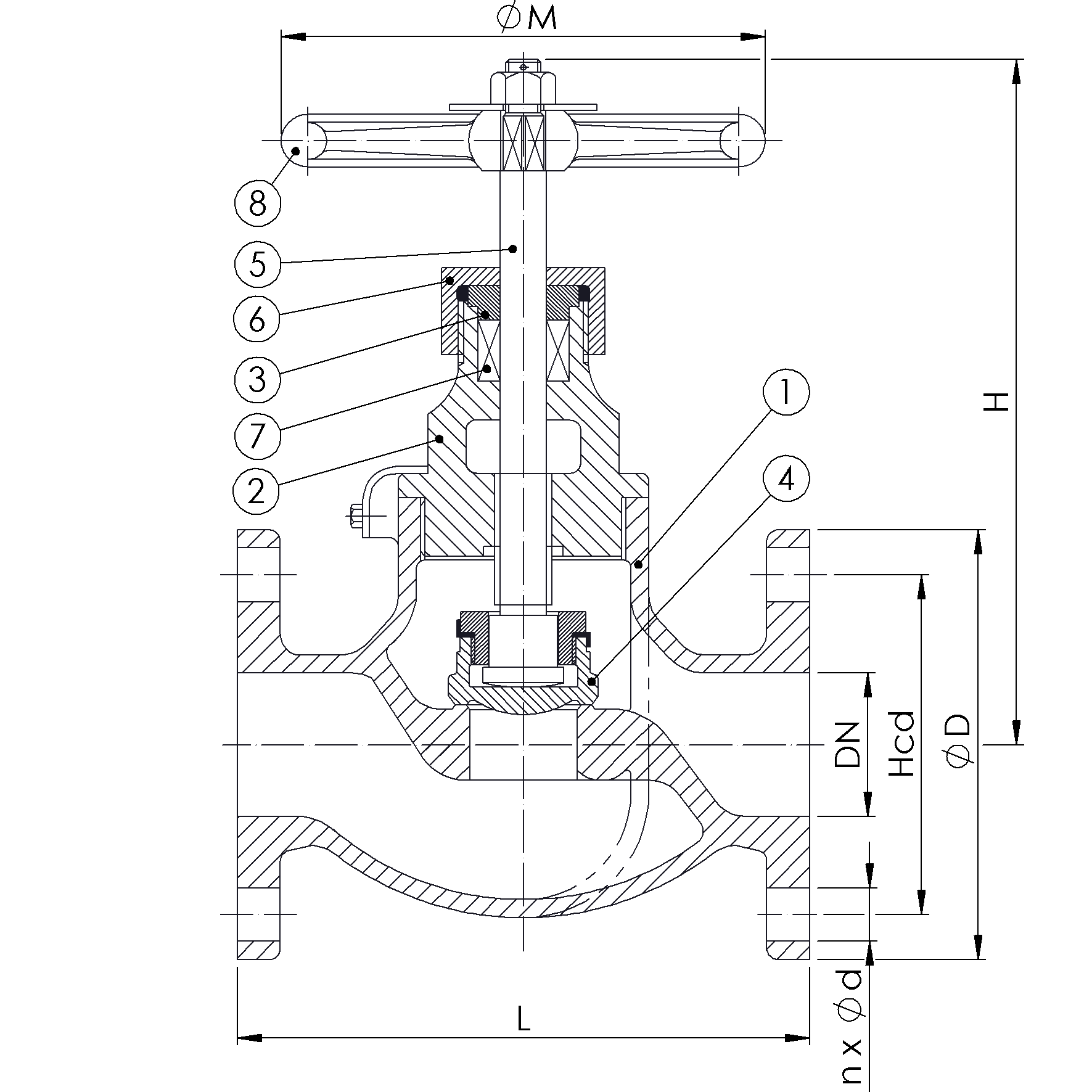

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | BC 6 |
| 2 | Bonnet | Brass | C 3771 BE |
| 3 | Gland | Brass | C 3771 BE |
| 4 | Disc | Brass | C 3771 BE |
| 5 | Stem | Brass | C 3771 BE |
| 6 | Gland nut | Brass | C 3771 BE |
| 7 | Packing | Graphite | |
| 8 | Handwheel | Cast Iron | FC 200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 32 | 16 | 4x19 | 100 | 135 | 160 | 6.9 | 170 | 125 |
