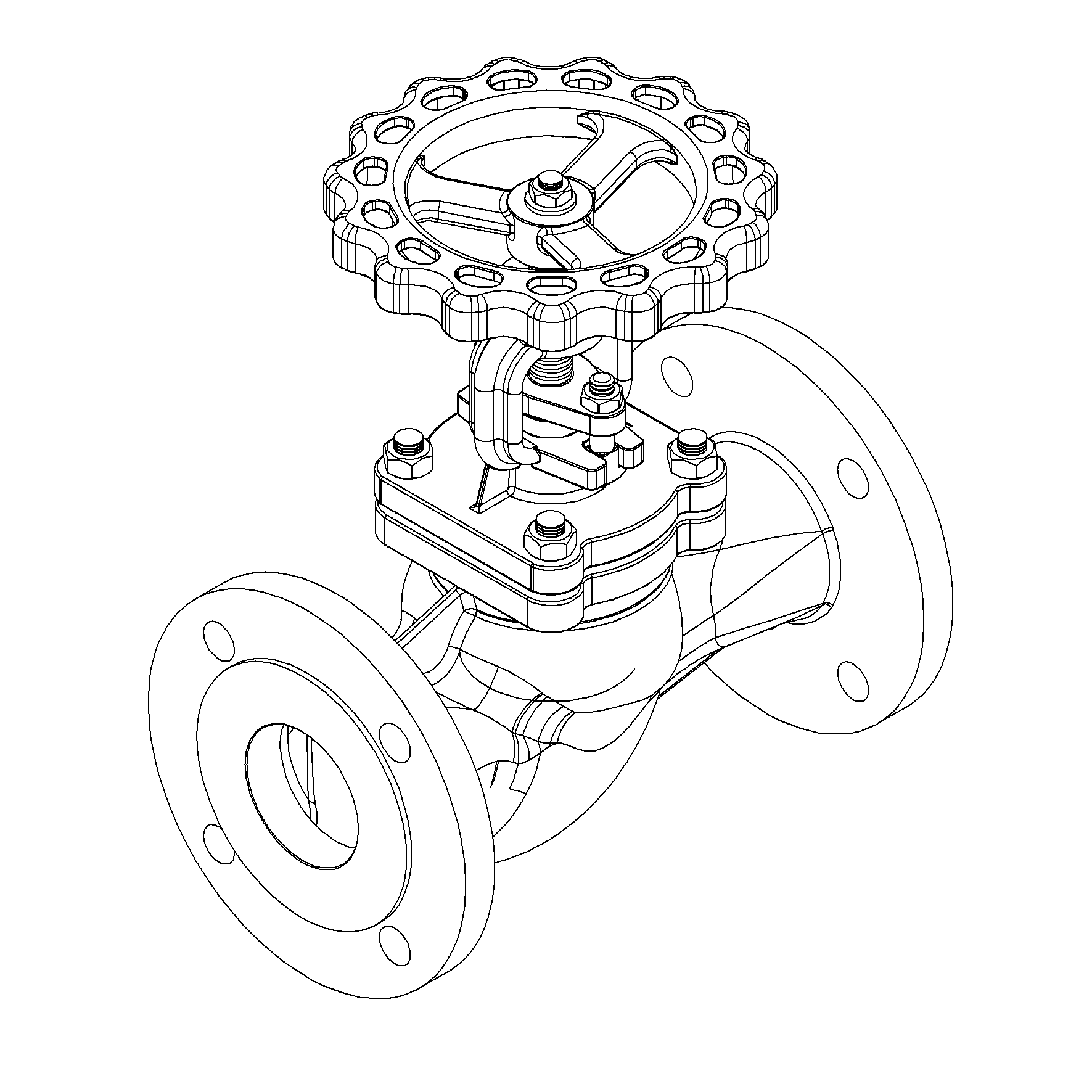

Globe Valve DN32 PN40
Details
Straight type, Cast Steel body, metal seated globe valve with rising stem and bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 467064 |
| Material Body | Cast Steel |
| Remark | Connection: PN40 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | EN 1092-1 |
| Design Code | EN 13709 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 32 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | PN40 |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00000984 |
| Category | Valve |
| Variant | SDNR with spring |
| Max temperature | 300°C |

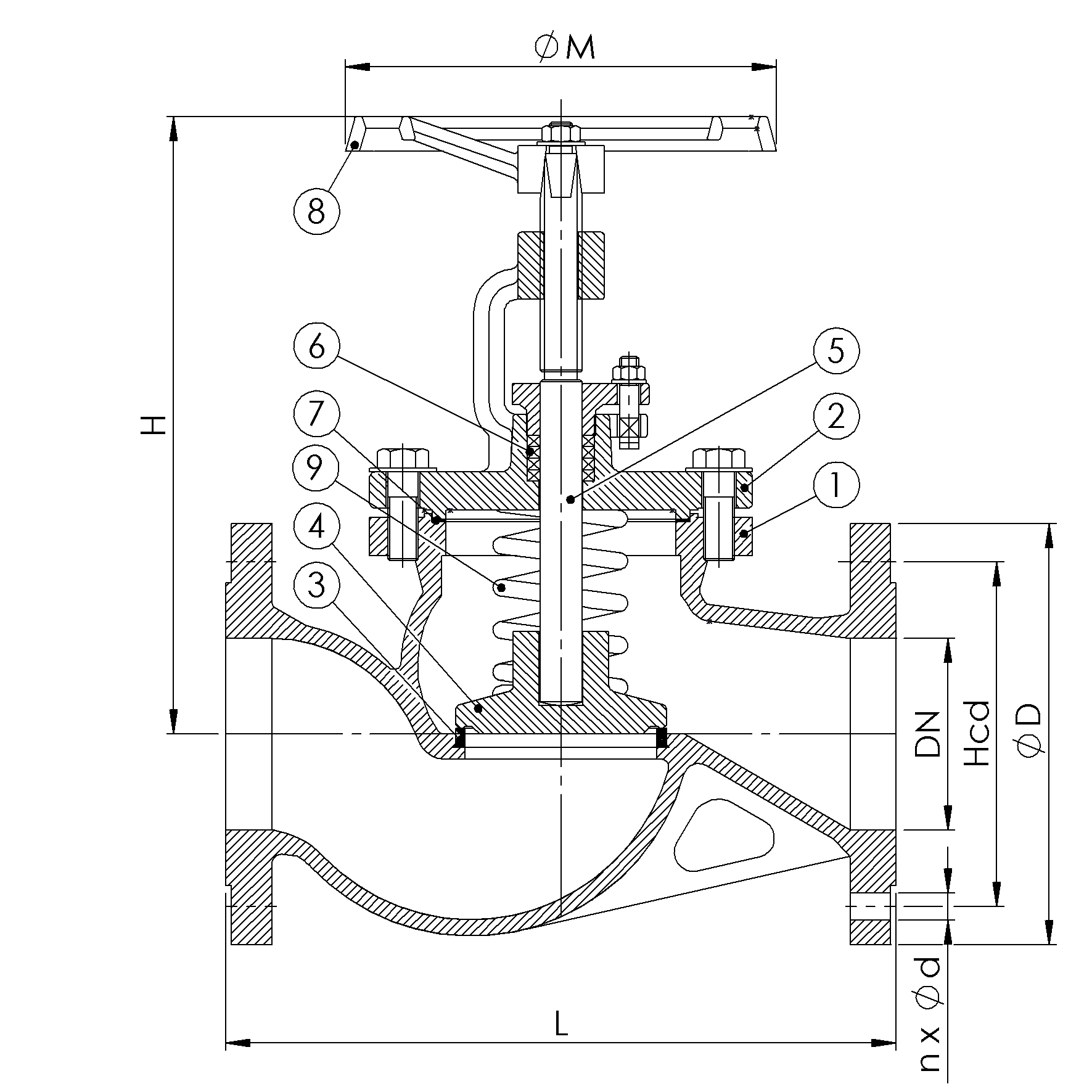

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | GS-C25 |
| 2 | Bonnet | Cast Steel | GS-C25 |
| 3 | Seat | Stainless Steel | 1.4301 |
| 4 | Disc | Stainless Steel | 1.4021 |
| 5 | Stem | Stainless Steel | 1.4021 |
| 6 | Gland packing | Graphite | |
| 7 | Gasket | Graphite | |
| 8 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 32 | 40 | 4x18 | 100 | 140 | 180 | 7 | 180 | 140 |
