Globe Valve DN65 JIS 10K
Details

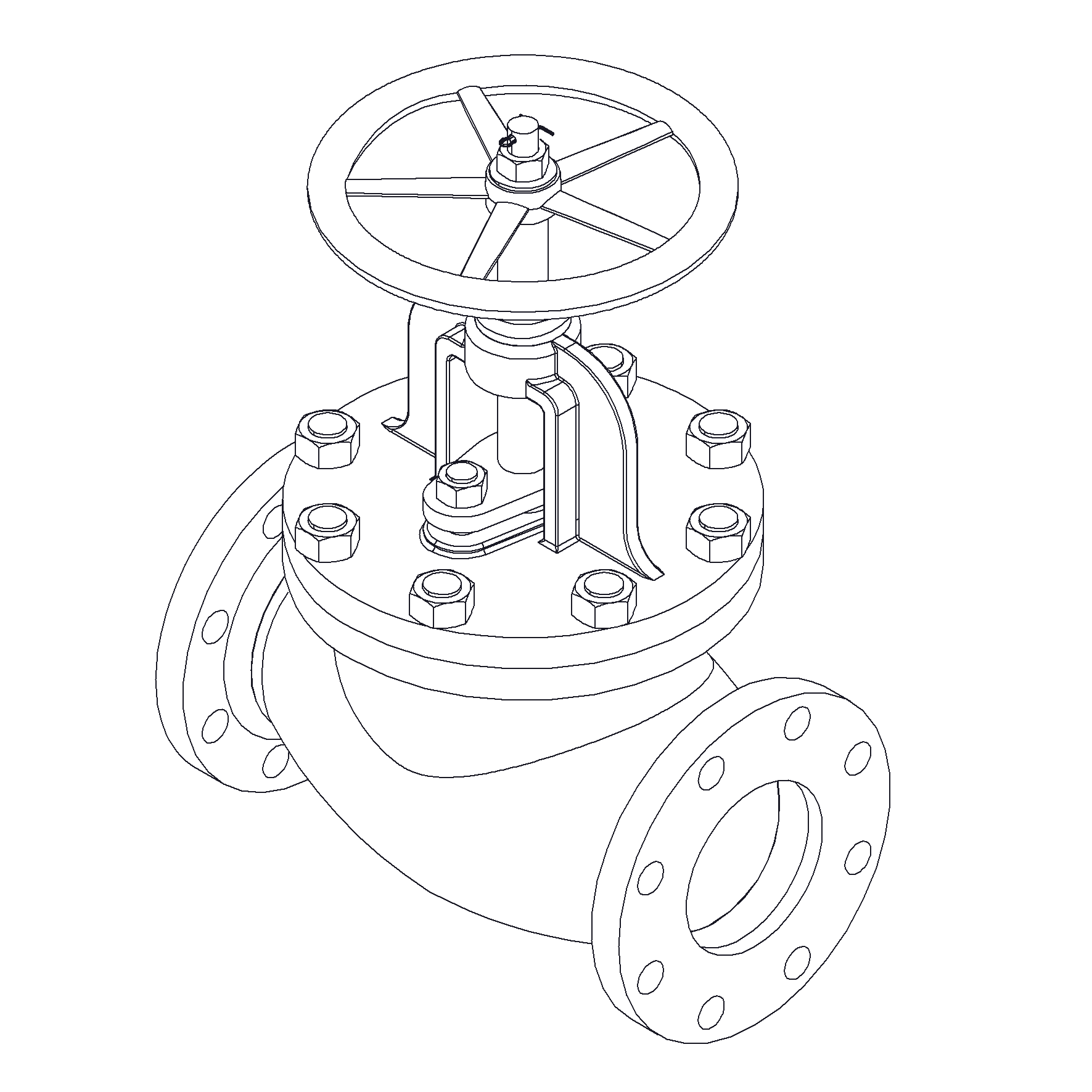

Straight type, Cast Steel body, metal seated globe valve with rising stem. Bolted bonnet. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | F-7471 |
| Material Body | Cast Steel |
| Remark | Connection: JIS 10K |
| Throughput Direction | Straight |
| End Standard | JIS B2220 |
| Design Code | JIS F7319 |
| Standard | JIS |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Water |
| Size | 65 |
| Material Seat | Stainless Steel, 420 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | JIS 10K |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00001928 |
| Category | Valve |
| Inspection Standard | JIS F7400 |
| Variant | SDNR |
Partslist and details

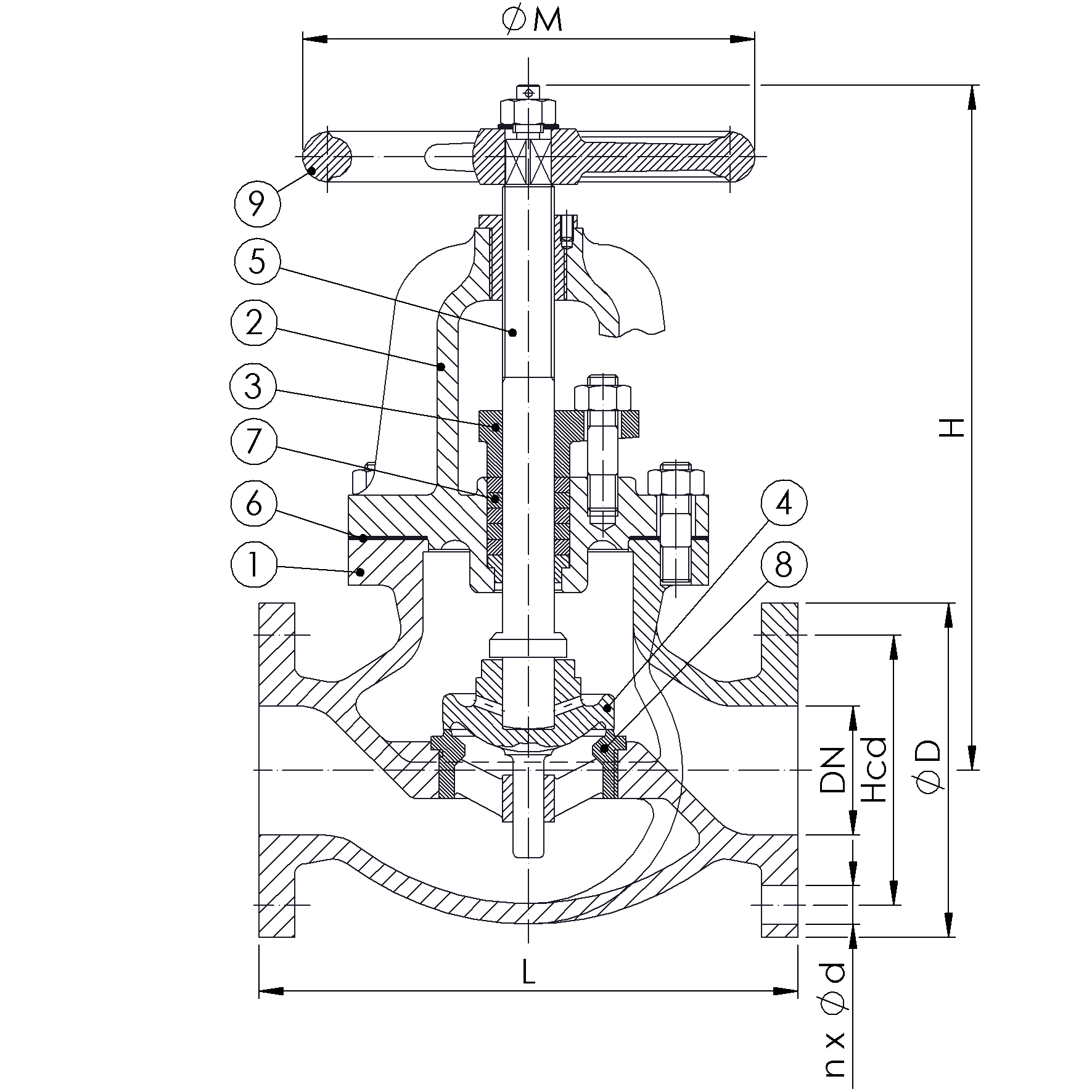

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | ZG230-450 |
| 2 | Bonnet | Cast Steel | ZG230-450 |
| 3 | Gland | Stainless Steel | 2Cr13 |
| 4 | Disc | Stainless Steel | 2Cr13 |
| 5 | Stem | Stainless Steel | 2Cr13 |
| 6 | Gasket | Graphite | |
| 7 | Packing | Graphite | |
| 8 | Sealing ring | Stainless Steel | 2Cr13 |
| 9 | Handwheel | Cast Iron | HT200 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 65 | 10 | 4x19 | 140 | 175 | 270 | 26 | 300 | 200 |
