Globe Valve DN80 PN16
Details

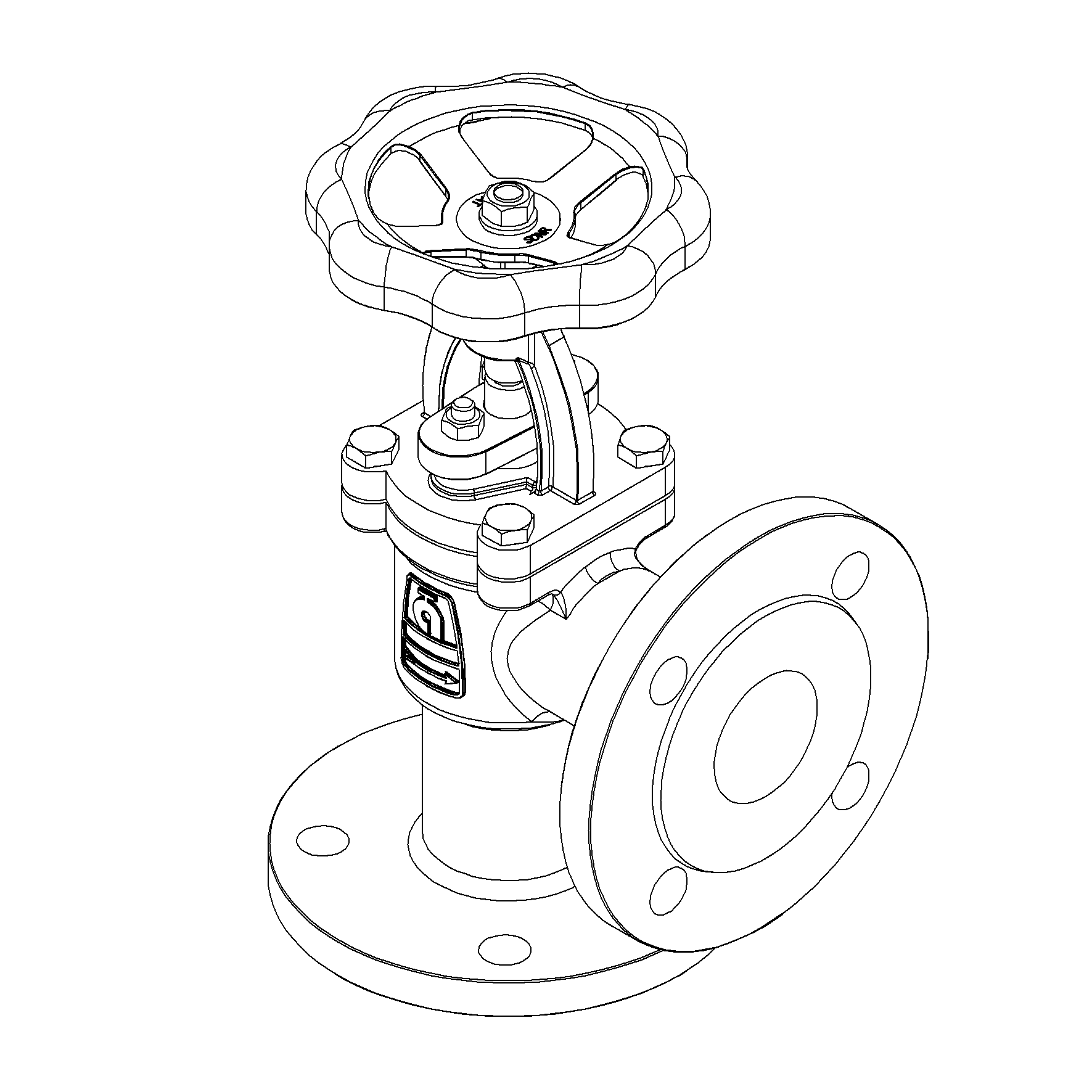

Angled type, RG5 body, metal seated globe valve with rising stem. Bolted bonnet. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 458922 |
| Material Body | Bronze |
| Remark | Connection: PN16 |
| Throughput Direction | Angled |
| Face To Face Standard | EN 558, series 8 |
| End Standard | EN 1092-3 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water |
| Size | 80 |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | GLOBE |
| Item Number | 150-00000447 |
| Category | Valve |
| Variant | SDNR with spring |

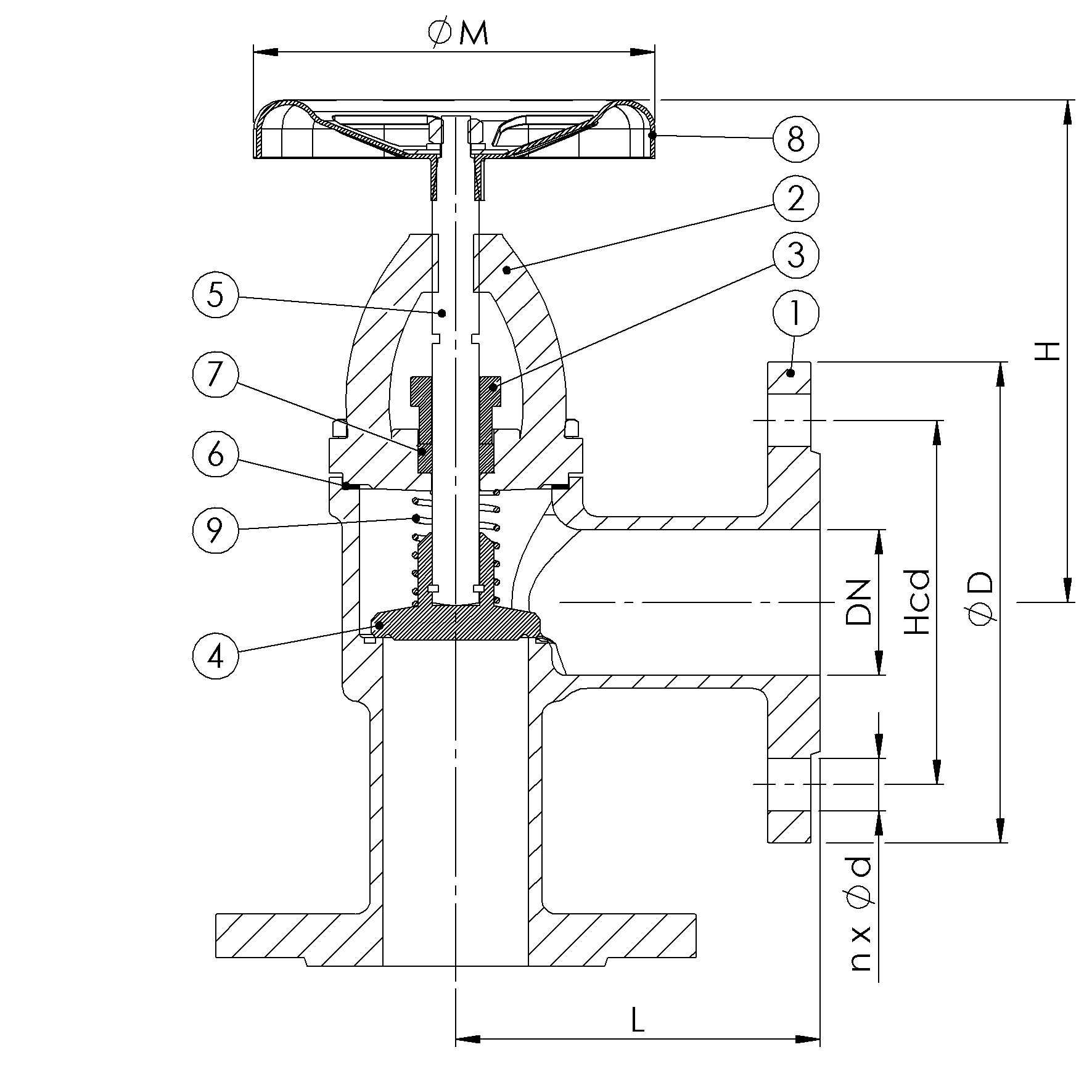

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 491K |
| 2 | Bonnet | Bronze | CC 491K |
| 3 | Gland | Bronze | CC 491K |
| 4 | Disc | Bronze | CC 491K |
| 5 | Stem | Brass | CW 602N |
| 6 | Gasket | Dixo 4000 | |
| 7 | Packing | Graphite | |
| 8 | Handwheel | Nodular Cast Iron | GGG40 |
| 9 | Spring | Stainless Steel | 1.4404 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | Ø M |
|---|---|---|---|---|---|---|---|---|
| 80 | 16 | 8x18 | 160 | 200 | 155 | 18.4 | 260 | 200 |
