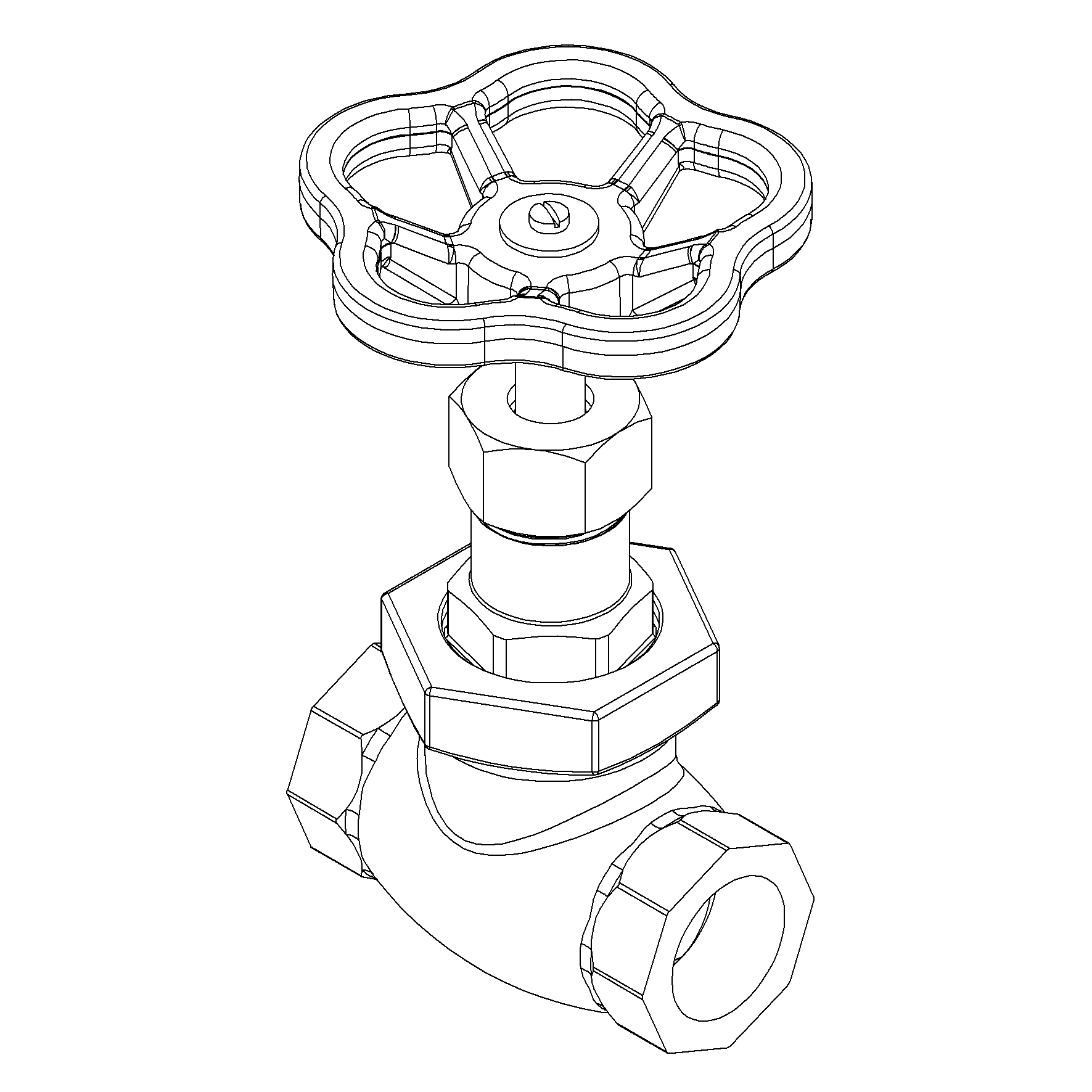

Globe Valve ½" PN16
Details
Straight type, RG5 body, metal seated globe valve with rising stem. Screwed and secured bonnet. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 456022 |
| Material Body | Bronze |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Steam, Water |
| Size | 15 |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | GLOBE |
| Item Number | M80296 |
| Category | Valve |
| Variant | SDSL |
| Max temperature | +225°C (steam: 180°C) |

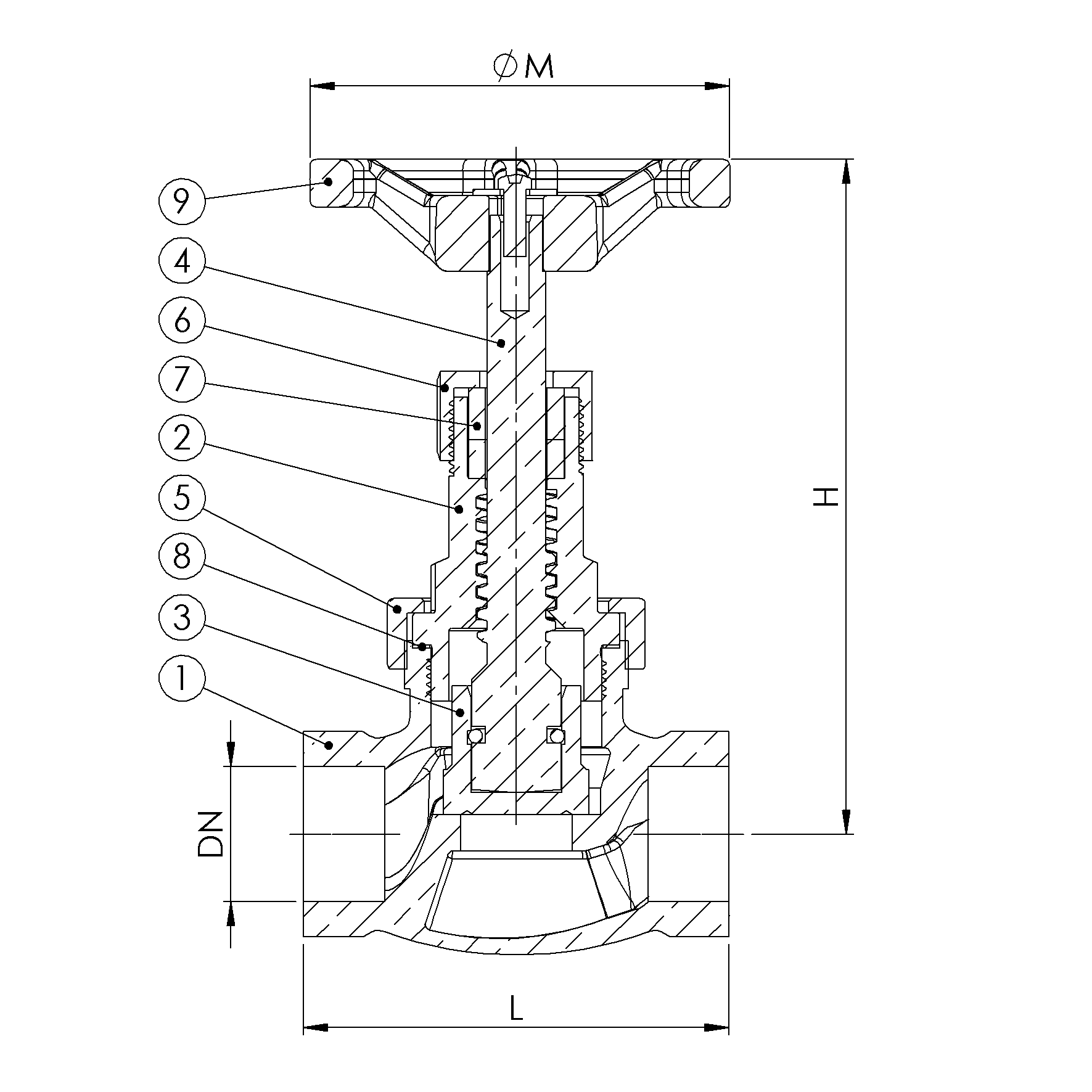

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | RG5 |
| 2 | Bonnet | Bronze | RG7 |
| 3 | Disc | Bronze | RG7 |
| 4 | Stem | Special Brass | Som59 |
| 5 | Bonnet nut | Bronze | RG5 |
| 6 | Gland nut | Brass | Ms58 |
| 7 | Gland | Brass | Ms58 |
| 8 | Gasket | PTFE | - |
| 9 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø M |
|---|---|---|---|---|---|---|
| 15 | 16 | 65 | 0.5 | 1/2" | 95 | 60 |
