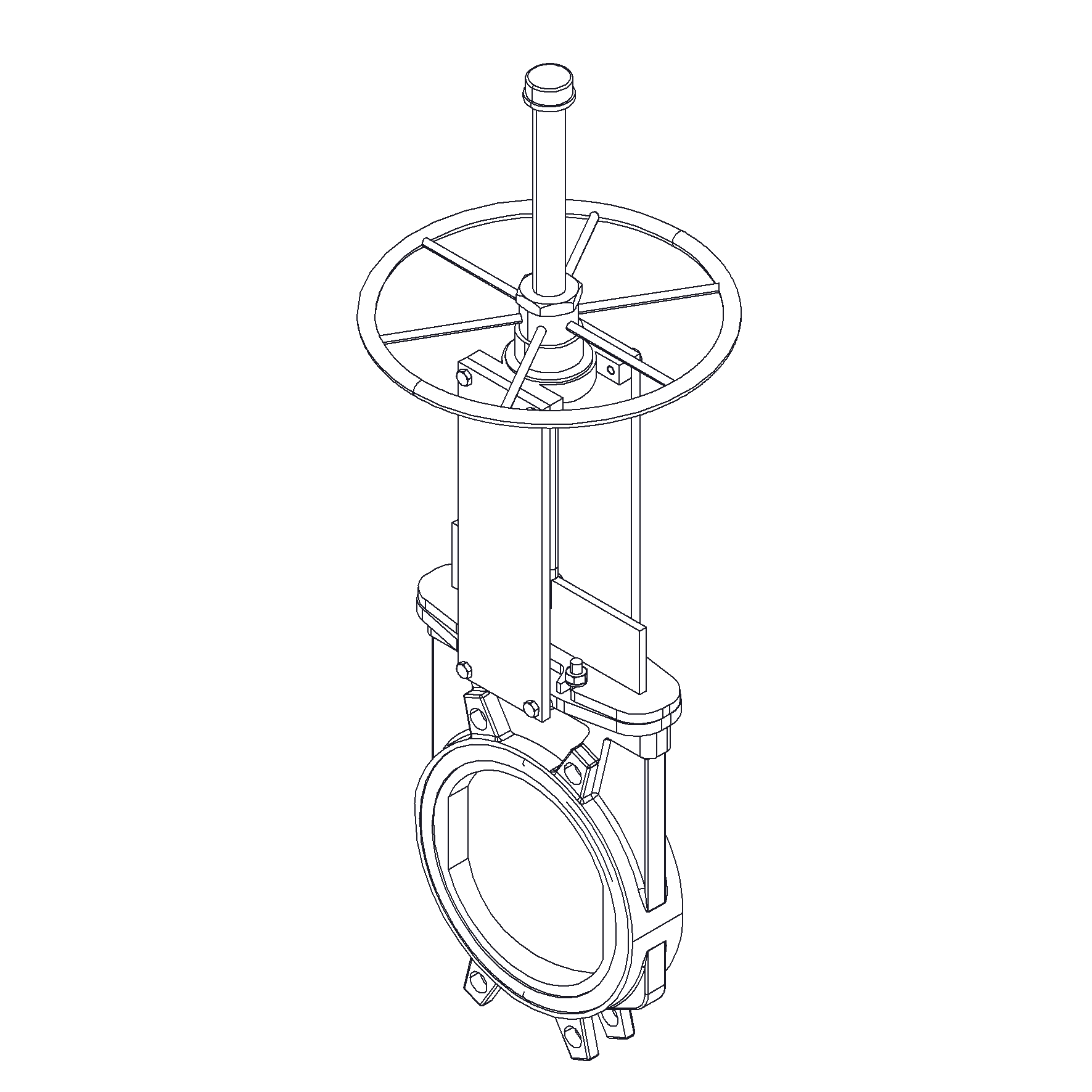

Knife Gate Valve DN100 PN10
Details
Wafer type, Cast Iron body, EPDM soft sealed knife gate valve.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 396851 |
| Material Body | Cast Iron |
| Remark | Connection: PN10 |
| Throughput Direction | Straight |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 100 |
| Material Seat | EPDM |
| Material Disc | Stainless Steel, 304 |
| Pressure Rating | PN10 |
| End Type | Wafer |
| Sub Category | GATE |
| Item Number | 130-00000011 |
| Category | Valve |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Seat | EPDM | |
| 3 | Knife | Stainless Steel | AISI 304 |
| 4 | Packing gland | Cast Iron | GGG50 |
| 5 | Packing | PTFE | |
| 6 | O-ring seal | EPDM | |
| 7 | Support plates | Steel | |
| 8 | O-ring | Nitrile | |
| 9 | Stem | Stainless Steel | AISI 303 |
| 10 | Stem nut | Bronze | |
| 11 | Nut | Steel | |
| 12 | Yoke | Steel | |
| 13 | Handwheel | Nodular Cast Iron | |
| 14 | Hood | Steel |

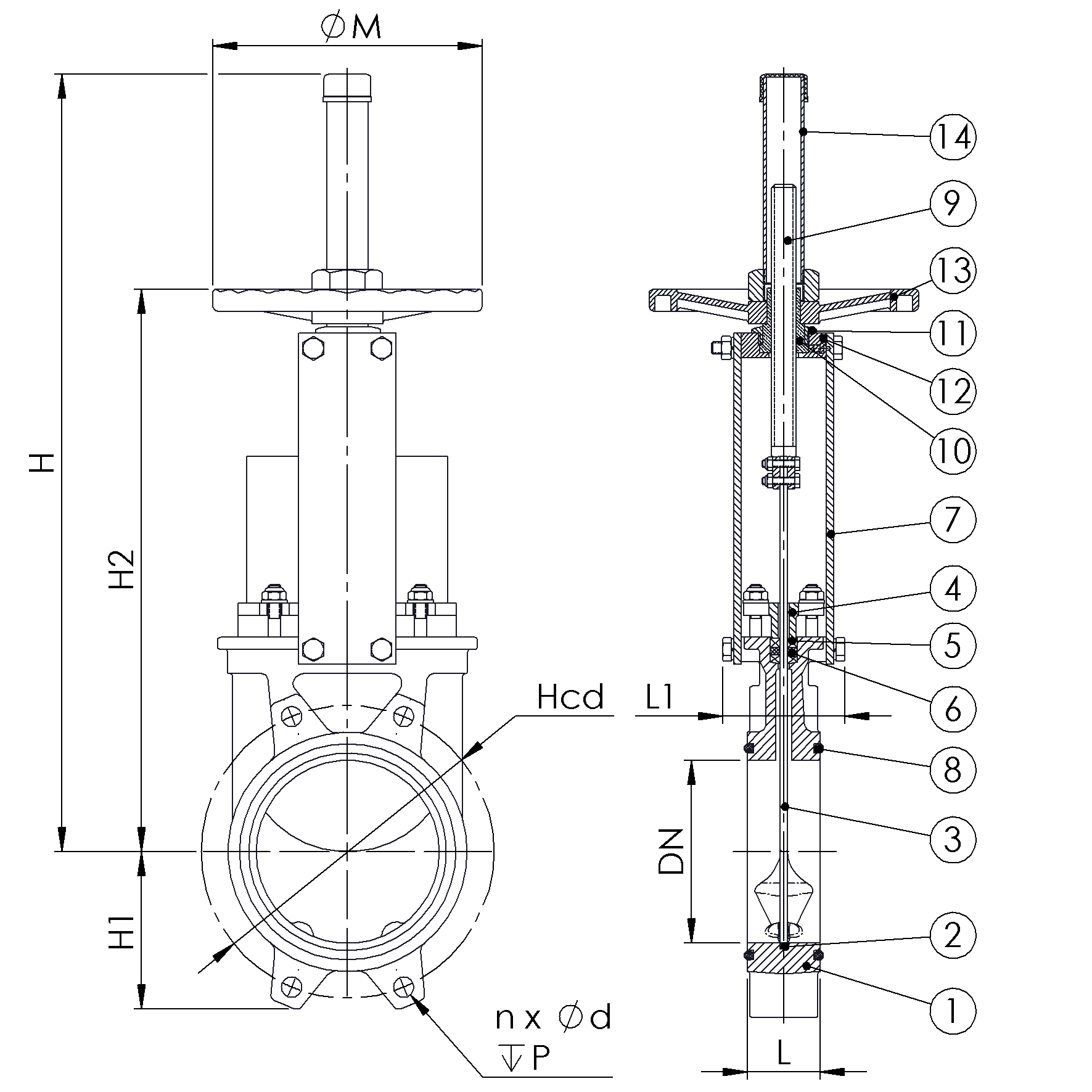

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | L | Kg | L1 | H | H1 | H2 | Ø M | P |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 100 | 10 | 4xM16 | 180 | 50 | 11 | 92 | 502 | 105 | 373 | 225 | 10 |
