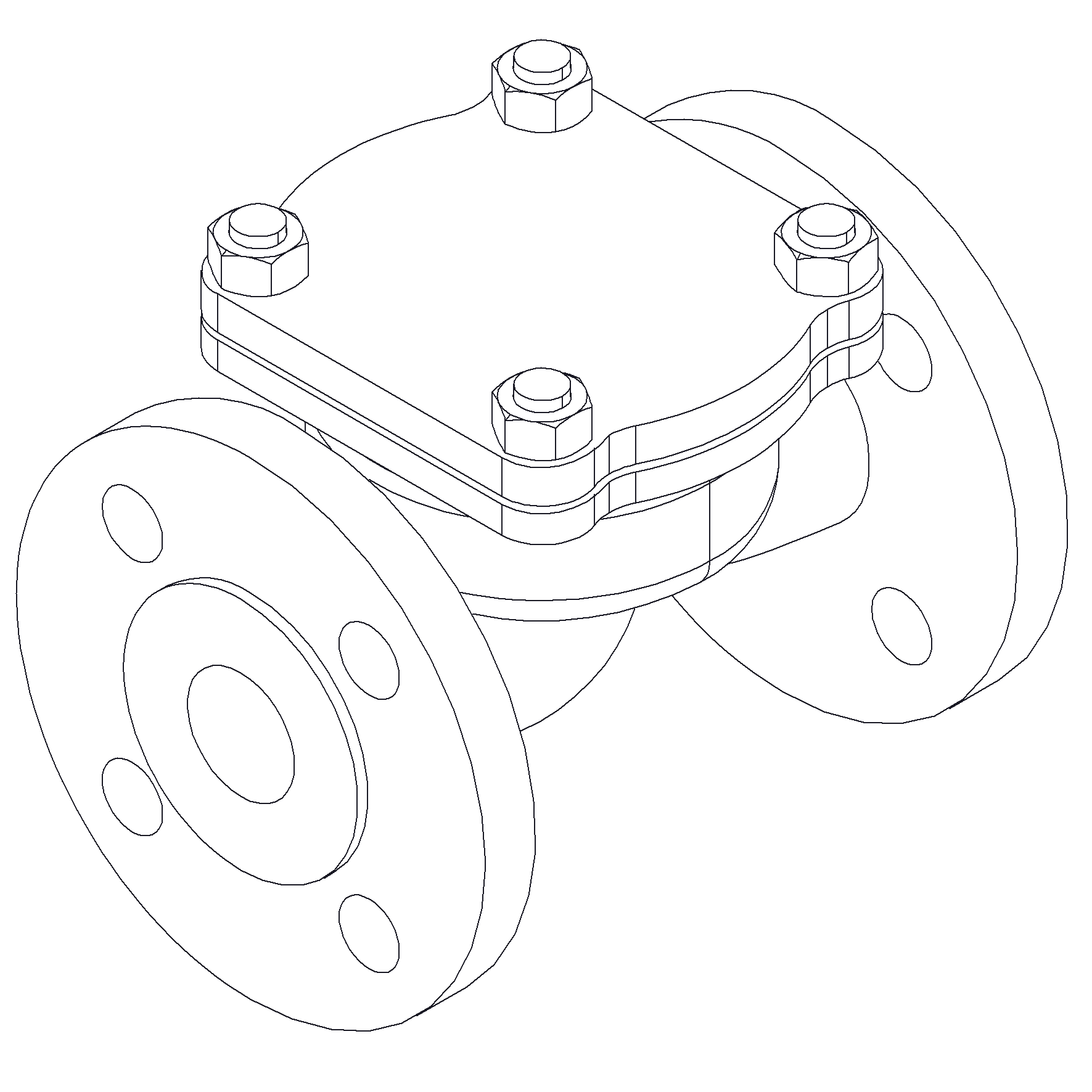

Lift Check Valve DN25 PN16
Details
Cast Iron body, metal seated spring loaded lift check valve. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 472052 |
| Material Body | Cast Iron |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | EN 1092-2 |
| Design Code | DIN 86252 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Steam, Water |
| Size | 25 |
| Material Seat | Bronze |
| Material Disc | Bronze |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | CHECK |
| Item Number | 60-00000659 |
| Category | Valve |
| Max temperature | +180°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Iron | GG25 |
| 2 | Bonnet | Cast Iron | GG25 |
| 3 | Seat | Bronze | CC 491K |
| 4 | Disc | Bronze | CC 491K |
| 5 | Bonnet Gasket | Graphite | |
| 6 | Spring | Spring Steel | 1.4310 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H |
|---|---|---|---|---|---|---|---|
| 25 | 16 | 4x14 | 85 | 115 | 160 | 4 | 65 |
