Pressure Control Valve 1"
Details

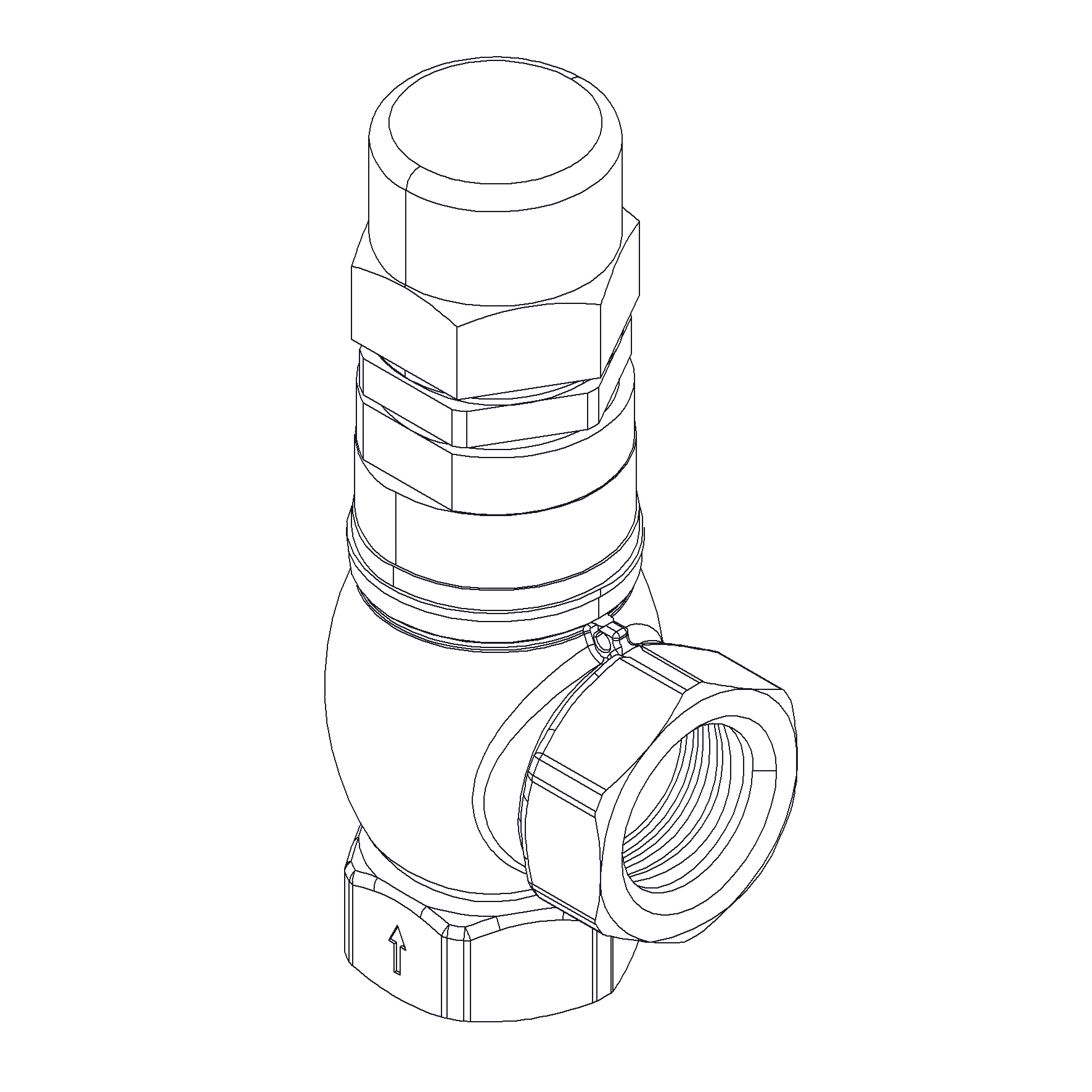

Angled type, RG5 body pressure control valve with PTFE seal. Pressure preset and sealed. Female BSPP threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 474322 |
| Material Body | Bronze |
| Min temperature | -60°C |
| Throughput Direction | Angled |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Air, Gas, Steam, Water |
| Size | 25 |
| Material Seat | PTFE |
| Material Disc | Brass |
| End Type | Threaded |
| Sub Category | SAFETY |
| Item Number | 220-00000069 |
| Category | Valve |
| Max temperature | +225°C |
Partslist and details

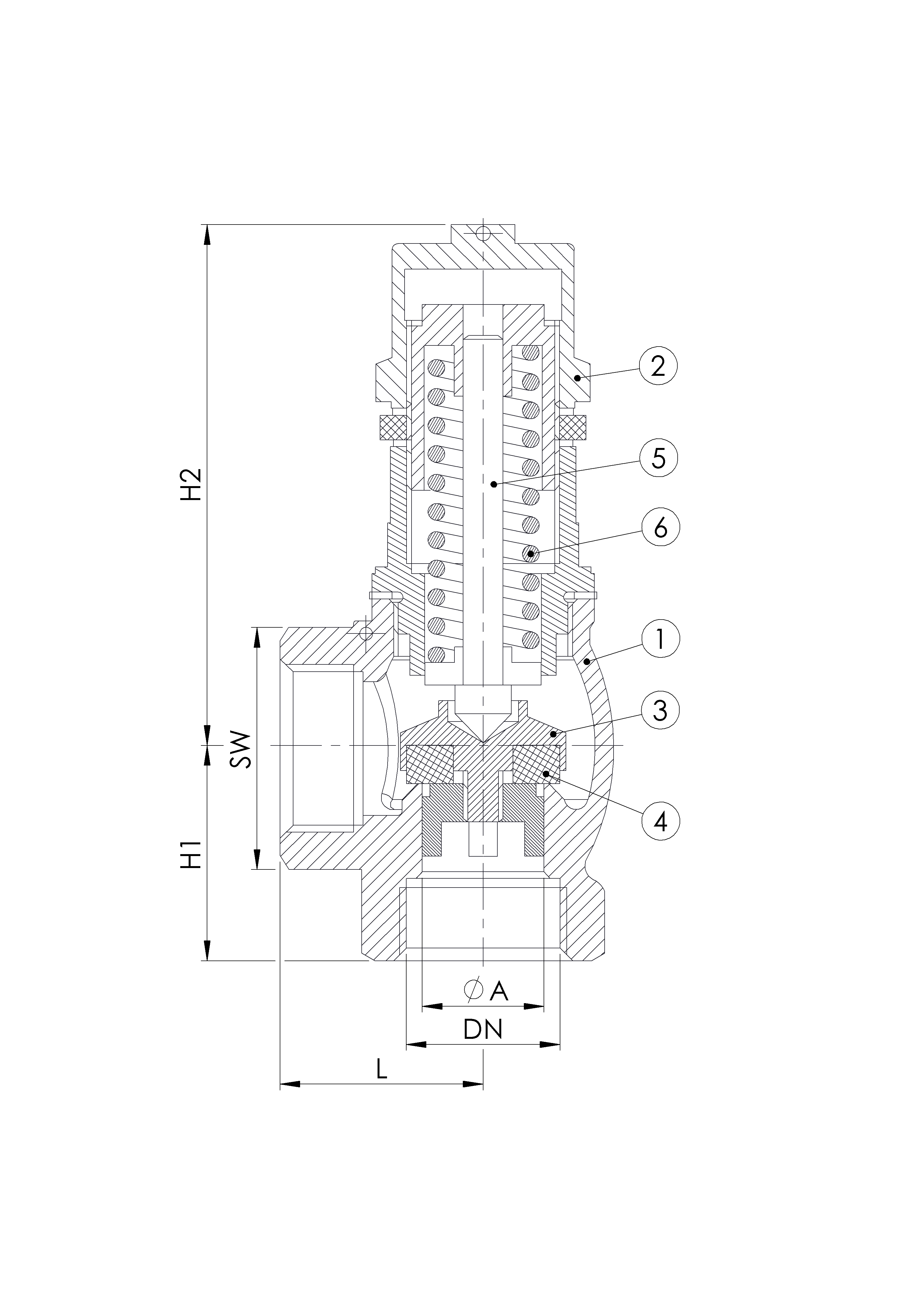

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Bronze | CC 499K |
| 2 | Bonnet | Brass | CW 614N |
| 3 | Disc | Brass | CW 614N |
| 4 | Seal | PTFE | |
| 5 | Stem | Brass | CW 614N |
| 6 | Spring | Stainless Steel | 1.4310 |
DETAILS
| DN | L | Kg | Inch | H1 | Ø A | H2 | SW |
|---|---|---|---|---|---|---|---|
| 25 | 42 | 1.2 | 1" | 43 | 25 | 100 | 41 |
