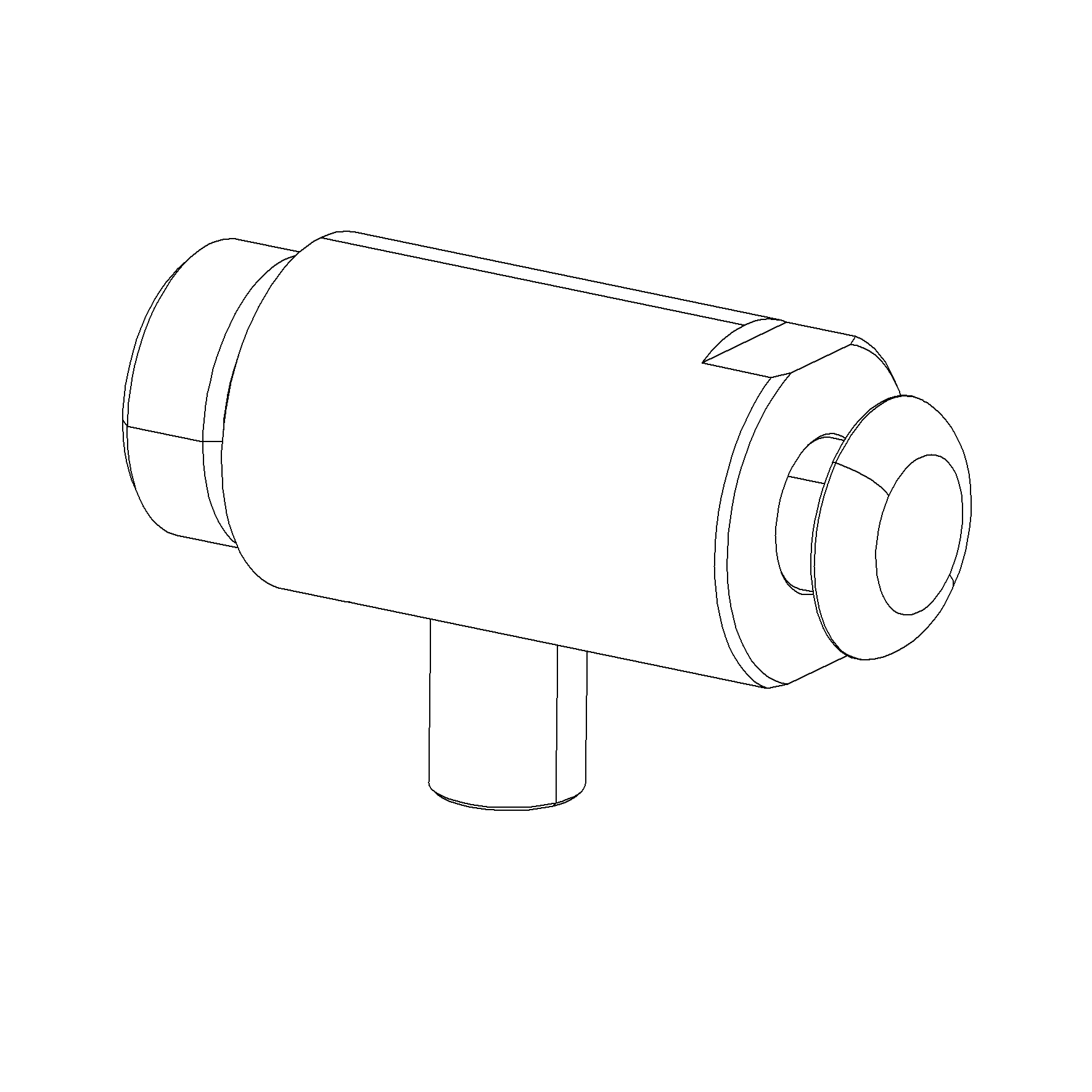

Push Button Drain Valve ¾" PN16
Details
Stainless Steel body, soft sealing self closing drain valve with push button operation. BSPP male threaded inlet, drain pipe outlet.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 357682 |
| Material Body | Stainless Steel, 304 |
| Throughput Direction | Angled |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 20 |
| Material Seat | NBR |
| Pressure Rating | PN16 |
| End Type | Threaded |
| Sub Category | SELF |
| Item Number | M33082 |
| Category | Valve |
| Max temperature | +80°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Stainless Steel | 1.4301 |
| 2 | Stem | Stainless Steel | 1.4301 |
| 3 | Knob | Stainless Steel | 1.4301 |
| 4 | Spring | Stainless Steel | 1.4310 |
| 5 | O-ring | NBR | |
| 6 | O-ring | NBR | |
| 7 | Drain pipe | Stainless Steel | 1.4436 |
DETAILS
| DN | Pressure Rating Id | L | Kg | L1 | Inch | H | L2 |
|---|---|---|---|---|---|---|---|
| 20 | 16 | 73.6 | 0.4 | 25 | 3/4" | 31 | 15 |
