Quick Closing Valve DN32 PN16
Details
Straight type, Nodular Cast Iron body, metal seated quick closing globe valve. Universal release cylinder for mechanical, hydraulic or pneumatic closing. Integrated fire release safety. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 901002 |
| Material Body | Nodular Cast Iron, GGG40 |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | ISO 7005-2 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Flammable media, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Water |
| Size | 32 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 304 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | QUICK |
| Item Number | M75254 |
| Category | Valve |
| Inspection Standard | EN 12266 |

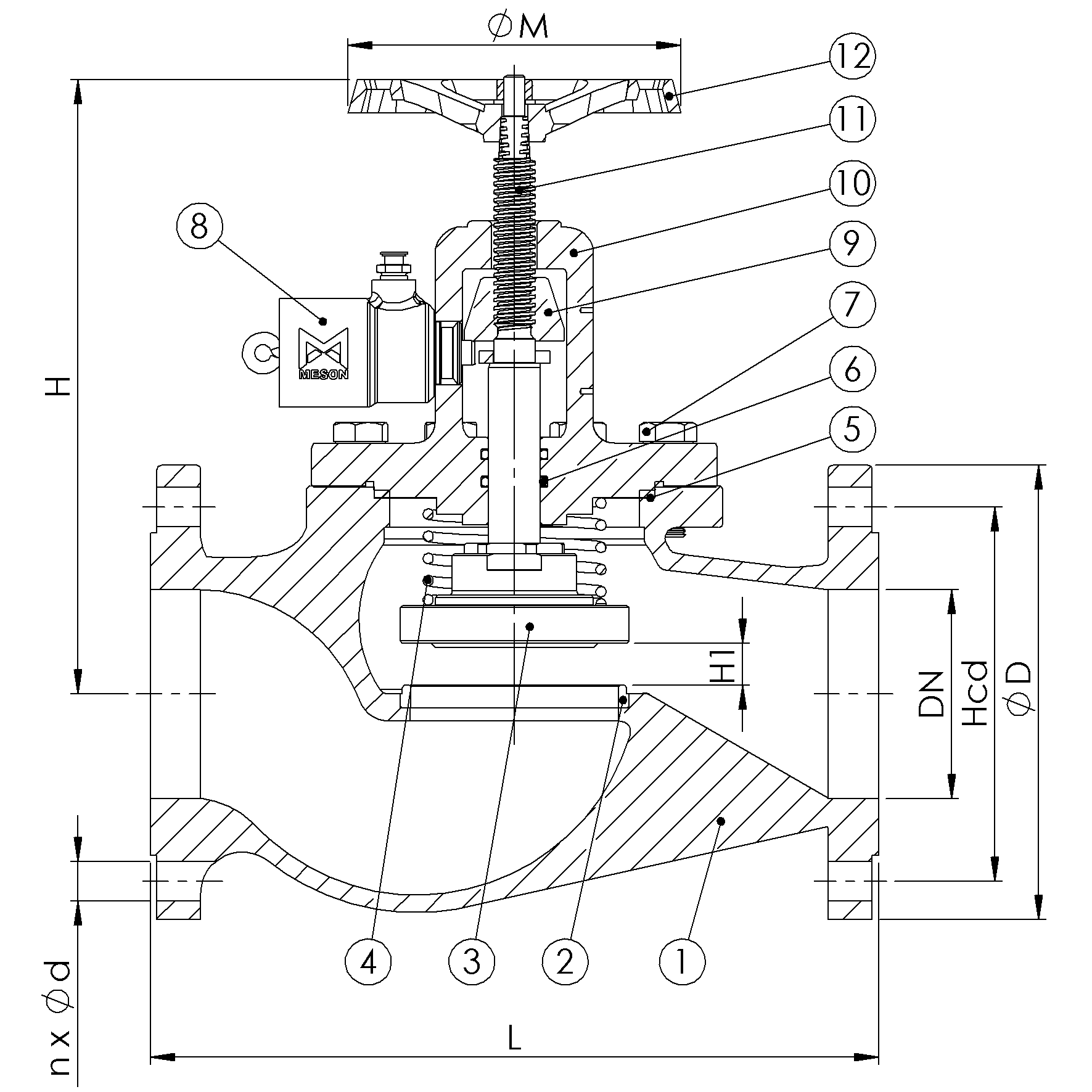

Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Seat ring | Stainless Steel | 1.4301 |
| 3 | Disc | Stainless Steel | 1.4301 |
| 4 | Spring, release unit | Spring Steel SH | 1084 ASTM A713 |
| 5 | Gasket | NBR Bonded Aramid | |
| 6 | O-ring | FPM/FKM | |
| 7 | Screw | 8.8 FZB | |
| 8 | Release cylinder | Brass | CW 614N |
| 9 | Setting nut | Brass | CW 617N |
| 10 | Bonnet | Nodular Cast Iron | GGG40 |
| 11 | Stem | Stainless Steel | 1.4301 |
| 12 | Handwheel | Cast Iron | GG25 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H1 | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 32 | 16 | 4x19 | 100 | 140 | 180 | 8.4 | 192 | 8 | 120 |
