Self Closing Valve DN40 PN16
Details

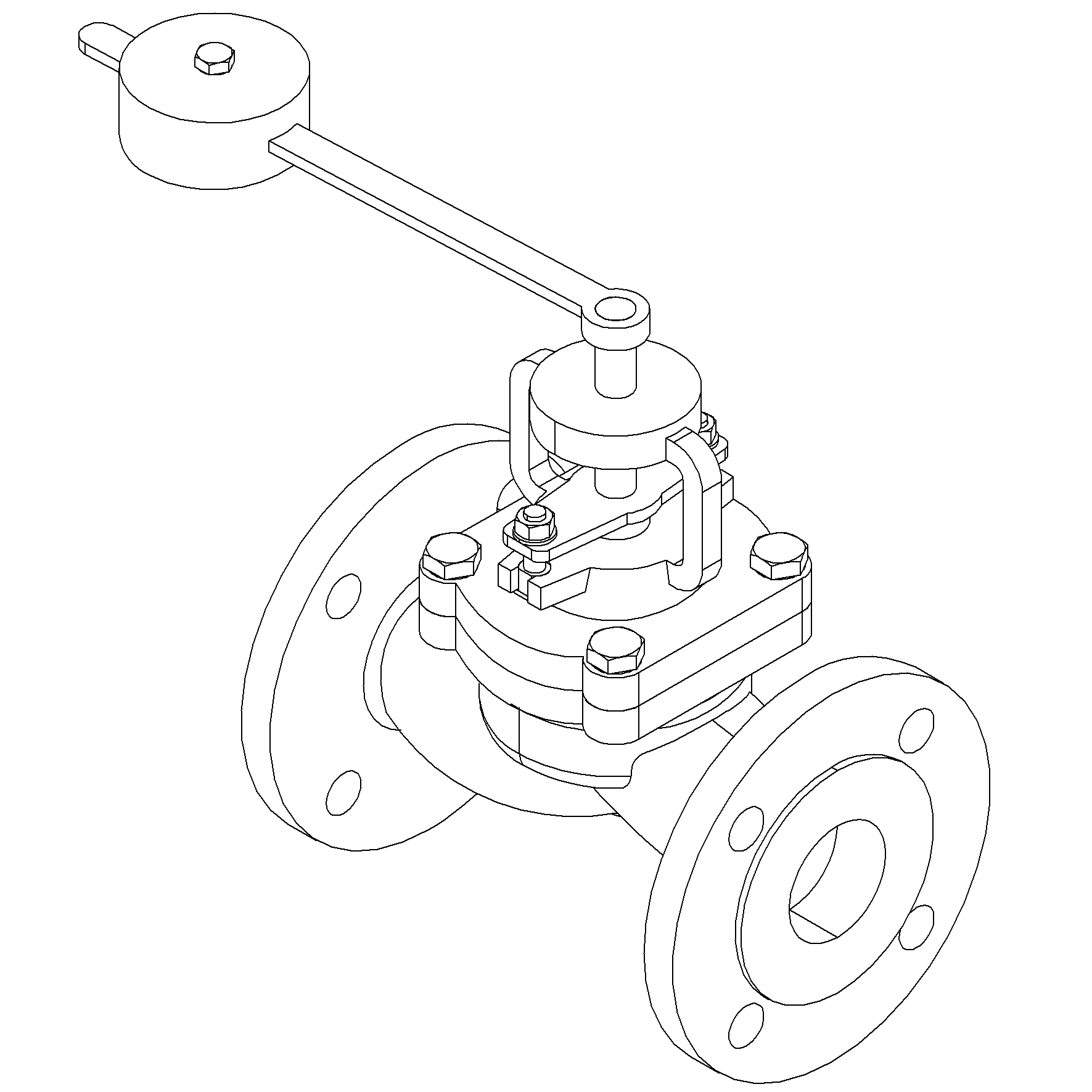

Straight type, Nodular Cast Iron, metal seated, self closing globe valve. Bolted bonnet and lever with counter weight. Raised face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 358002 |
| Material Body | Nodular Cast Iron, GGG40.3 |
| Min temperature | -10°C |
| Remark | Connection: PN16 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 1 |
| End Standard | EN 1092-2 |
| Design Code | DIN 86251 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Flammable hydraulic oil, Fuel oil, Lubricating oil, Non-flammable hydraulic fluid, Sea water, Thermal oil, Water |
| Size | 40 |
| Material Seat | Stainless Steel, 304 |
| Material Disc | Stainless Steel, 420 |
| Pressure Rating | PN16 |
| End Type | Flanged |
| Sub Category | SELF |
| Item Number | 230-00000037 |
| Category | Valve |
| Max temperature | +120°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40.3 |
| 2 | Bonnet | Nodular Cast Iron | GGG40.3 |
| 3 | Disc | Stainless Steel | 1.4021 |
| 4 | Seat | Stainless Steel | 1.4301 |
| 5 | Bonnet gasket | Graphite | |
| 6 | Gland packing | Graphite | |
| 7 | Stem | Stainless Steel | 1.4021 |
| 8 | Lever & counter weight | Steel | St37 |
DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H |
|---|---|---|---|---|---|---|---|---|
| 40 | 16 | 4x18 | 110 | 150 | 200 | 13 | 295 | 210 |
