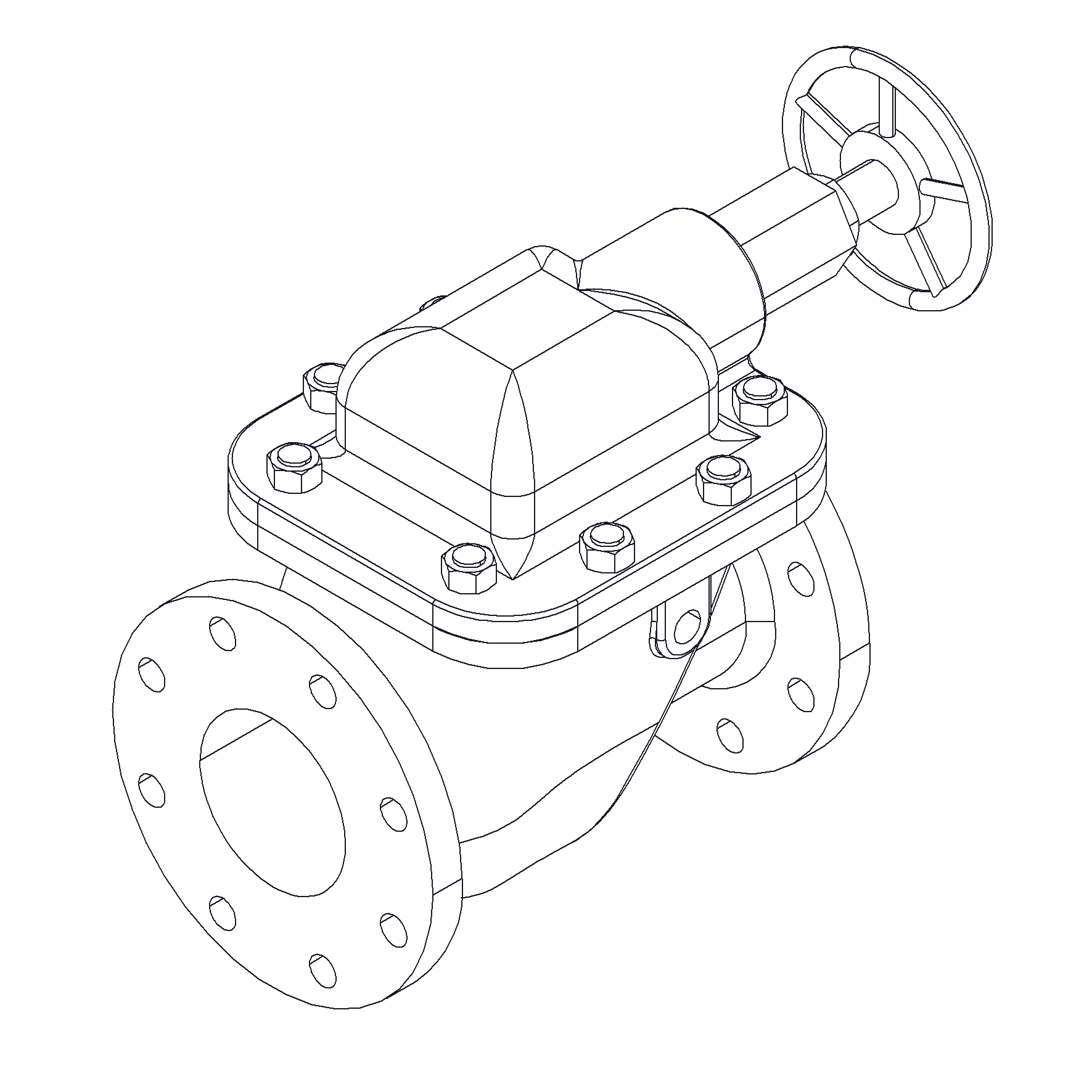

Storm Valve DN80 PN4/PN10
Details
Straight type closable check valve. Cast Steel body. Soft sealing disc. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 159761 |
| Material Body | Cast Steel |
| Min temperature | -10°C |
| Remark | Connection: PN10 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 48 |
| End Standard | EN 1092-1 |
| Design Code | DIN 87101 Form B |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 80 |
| Material Seat | NBR |
| Material Disc | Bronze |
| Pressure Rating | PN4 |
| End Type | Flanged |
| Sub Category | STORM |
| Item Number | 280-00000090 |
| Category | Valve |
| Max temperature | +60°C |
Partslist and details
PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Cast Steel | GS-C25 |
| 2 | Bonnet | Cast Steel | GS-C25 |
| 3 | Disc | Bronze | CC 491K |
| 4 | Disc sealing | NBR | |
| 5 | Bonnet gasket | NBR | |
| 6 | Stem | Brass | CW 614N |
| 7 | Stem nut | Brass | CW 614N |
| 8 | Plug | Brass | CW 614N |
| 9 | Handwheel | Cast Iron | GG25 |

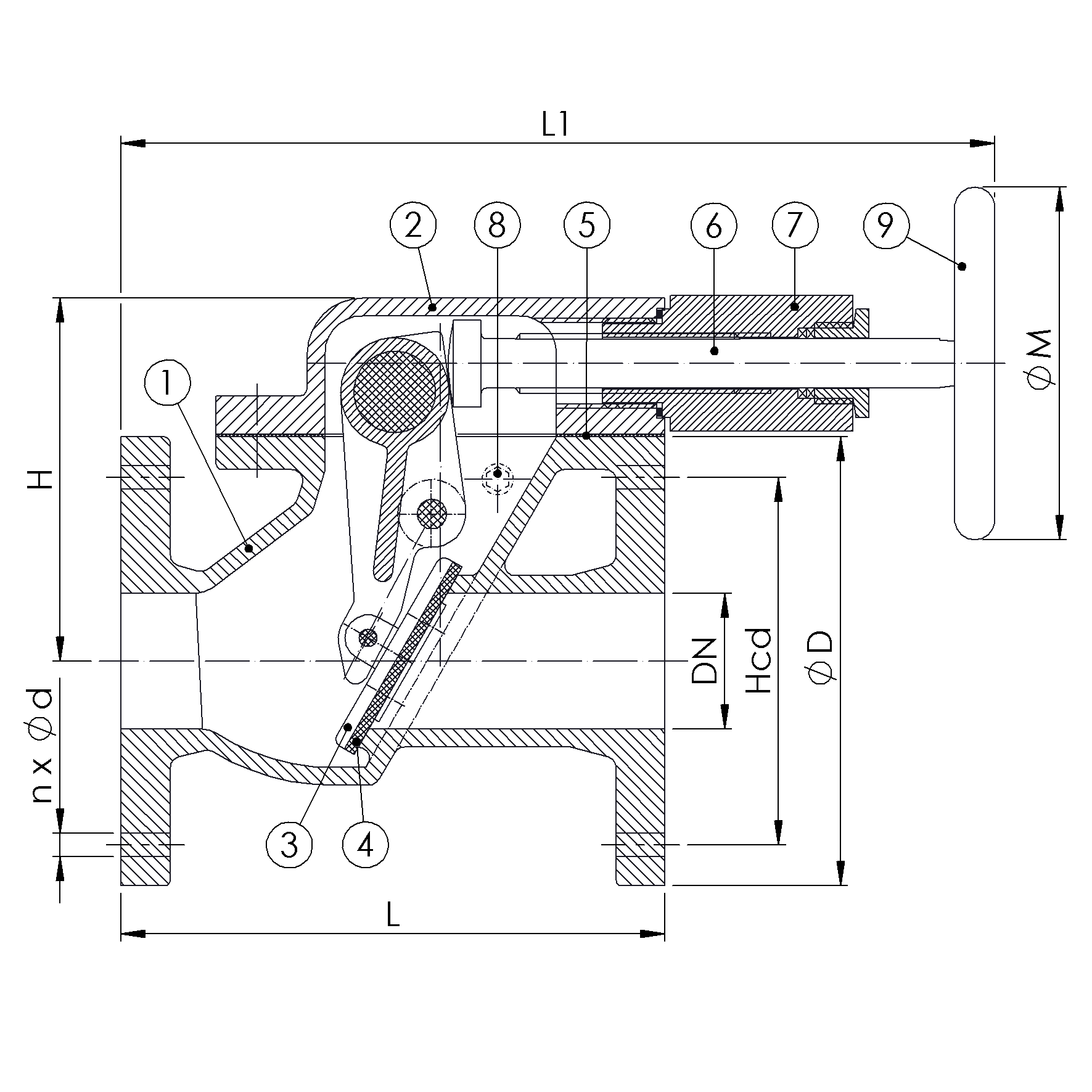

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | L1 | H | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 4 | 8x18 | 160 | 200 | 260 | 22 | 390 | 175 | 100 |
