Storm Valve DN80 PN4/PN10
Details

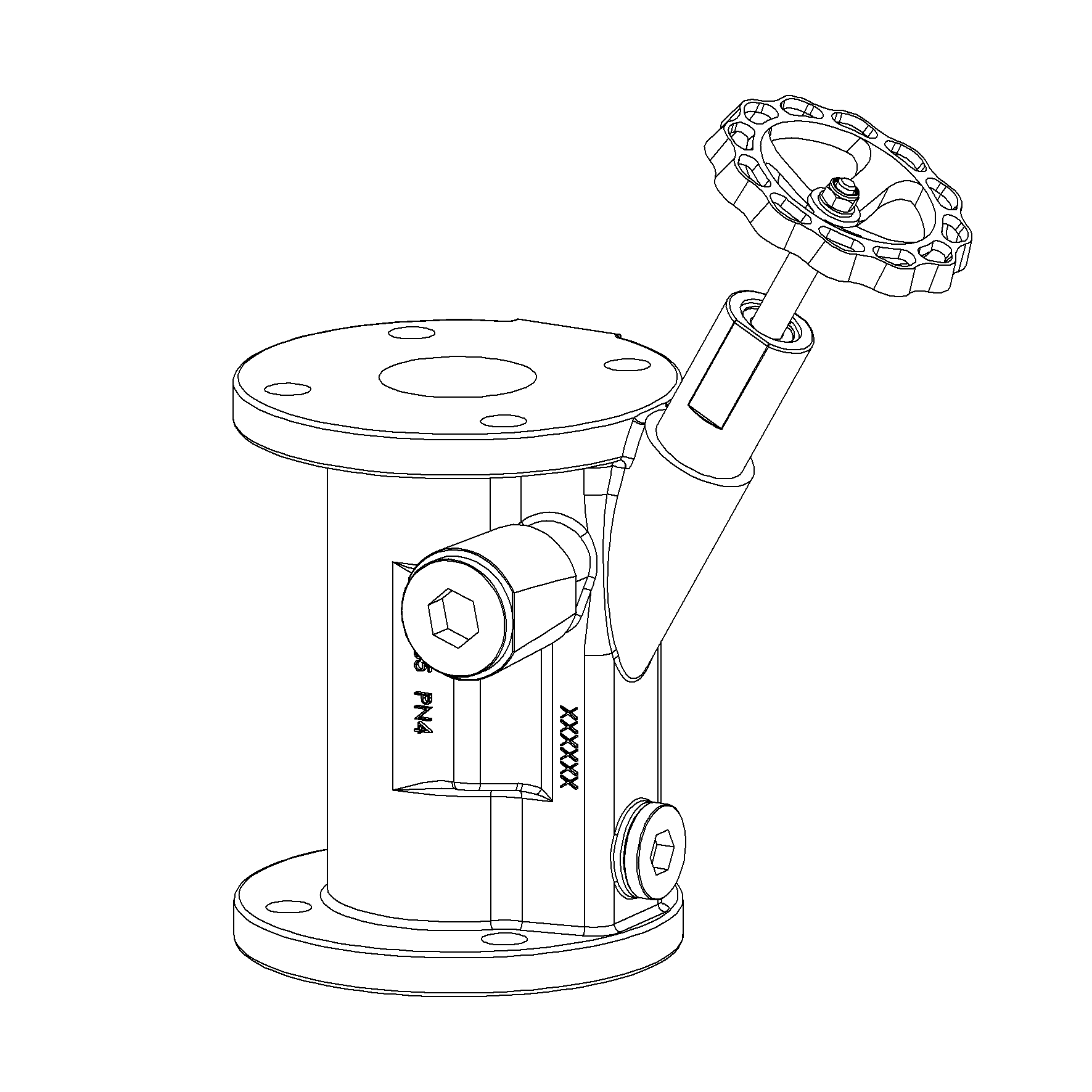

Straight type closable check valve. Nodular Cast Iron body. Soft sealing disc. Flat face flanges.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 159801 |
| Material Body | Nodular Cast Iron, GGG40 |
| Remark | Connection: PN 10 |
| Throughput Direction | Straight |
| Face To Face Standard | EN 558, series 48 |
| End Standard | EN 1092-2 |
| Standard | DIN |
| Application | Sea water, Water |
| Size | 80 |
| Material Seat | NBR |
| Material Disc | Nodular Cast Iron, GGG40 |
| Pressure Rating | PN4 |
| End Type | Flanged |
| Sub Category | STORM |
| Item Number | M36497 |
| Category | Valve |
| Inspection Standard | EN 12266 |
Partslist and details

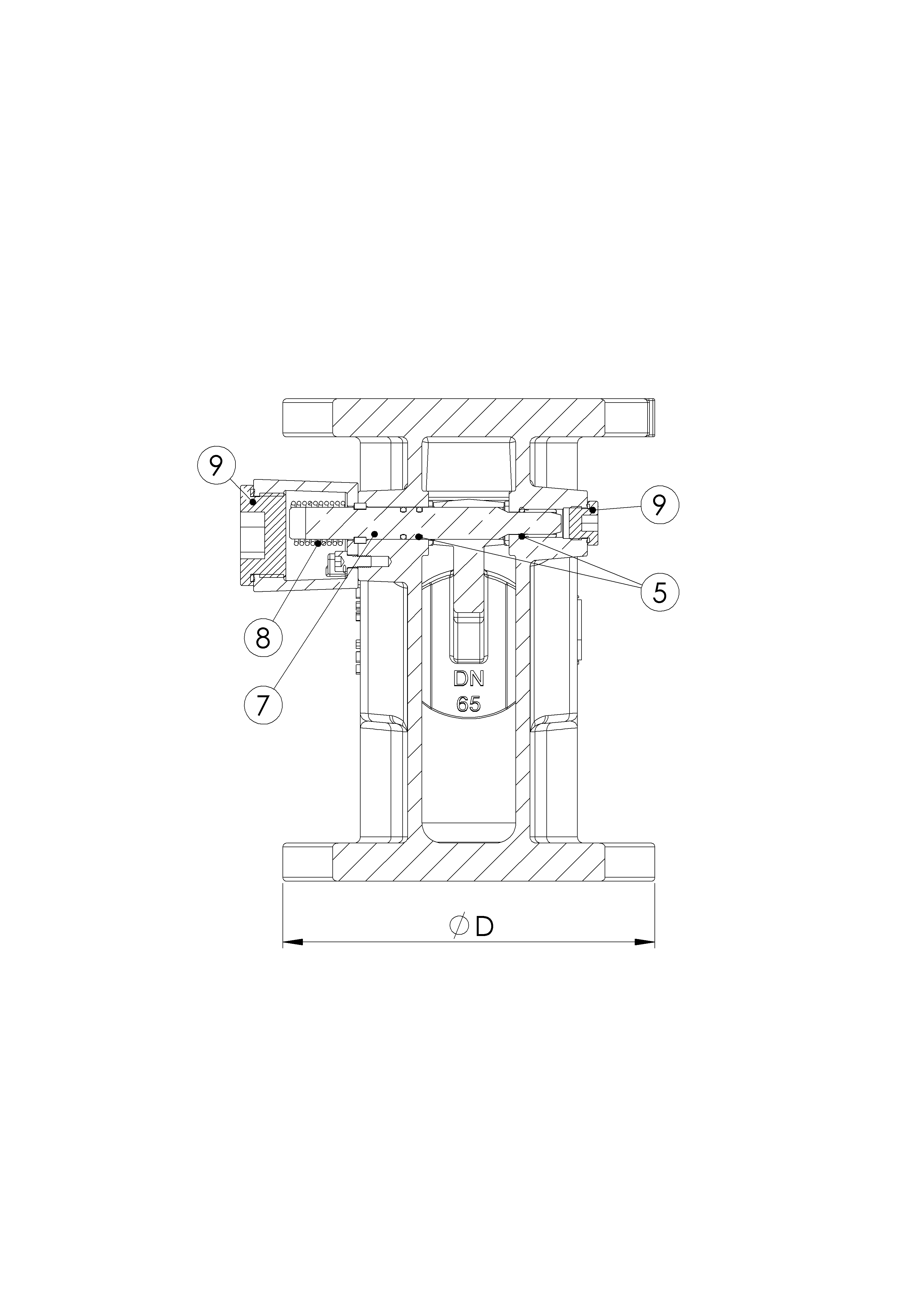

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 1 | Body | Nodular Cast Iron | GGG40 |
| 2 | Disc | Nodular Cast Iron | GGG40 |
| 3 | Disc sealing | NBR | |
| 4 | Sleeve | Brass | CW 614N |
| 5 | Sealing | NBR | |
| 6 | Stem | Brass | CW 614N |
| 7 | Shaft | Brass | CW 614N |
| 8 | Spring | Stainless Steel | 1.4310 |
| 9 | Plug | Zinc Plated Steel |

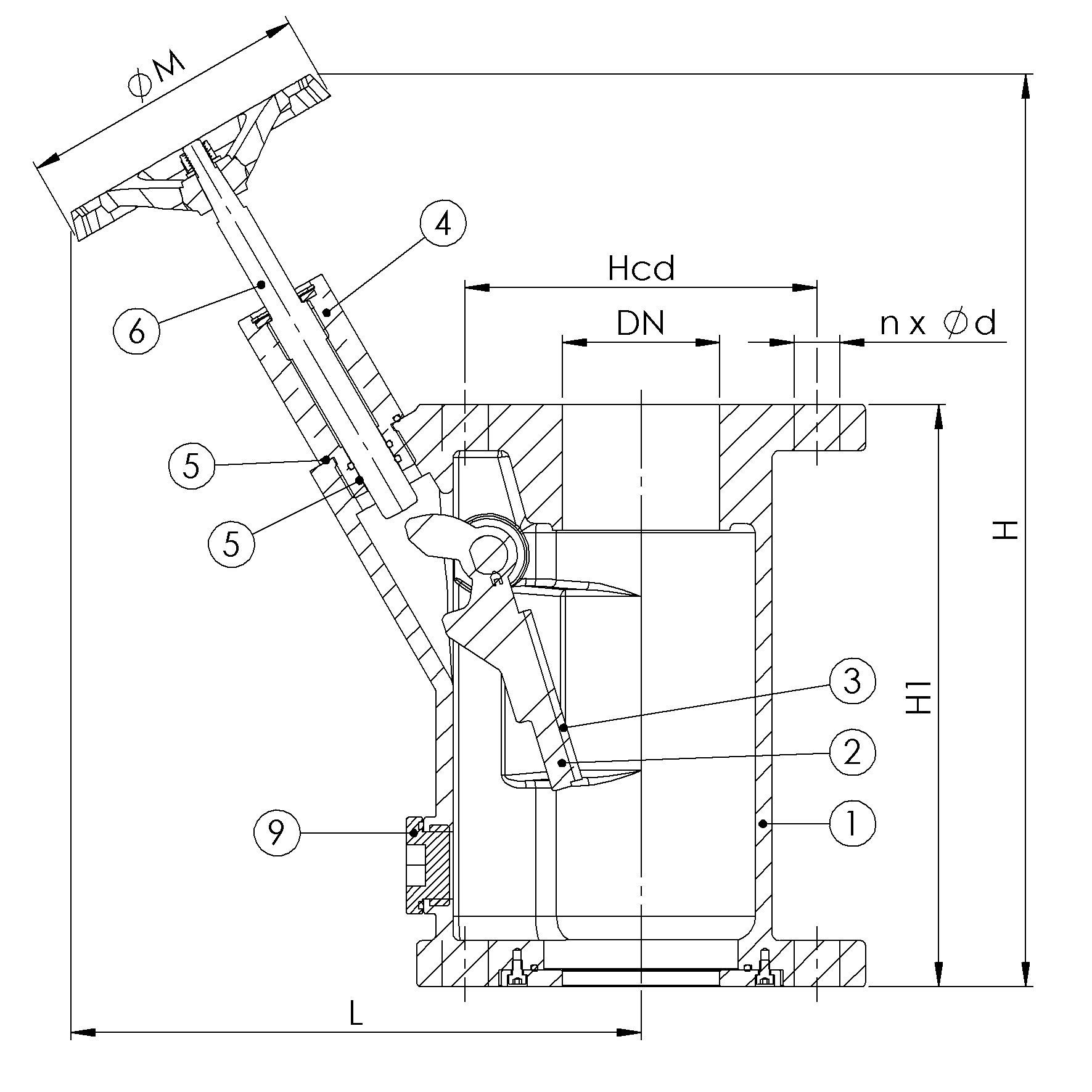

DETAILS
| DN | Pressure Rating Id | nxdd | Hcd | Ø D | L | Kg | H | H1 | Ø M |
|---|---|---|---|---|---|---|---|---|---|
| 80 | 4 | 8x19 | 160 | 200 | 263 | 16.9 | 416 | 260 | 140 |
