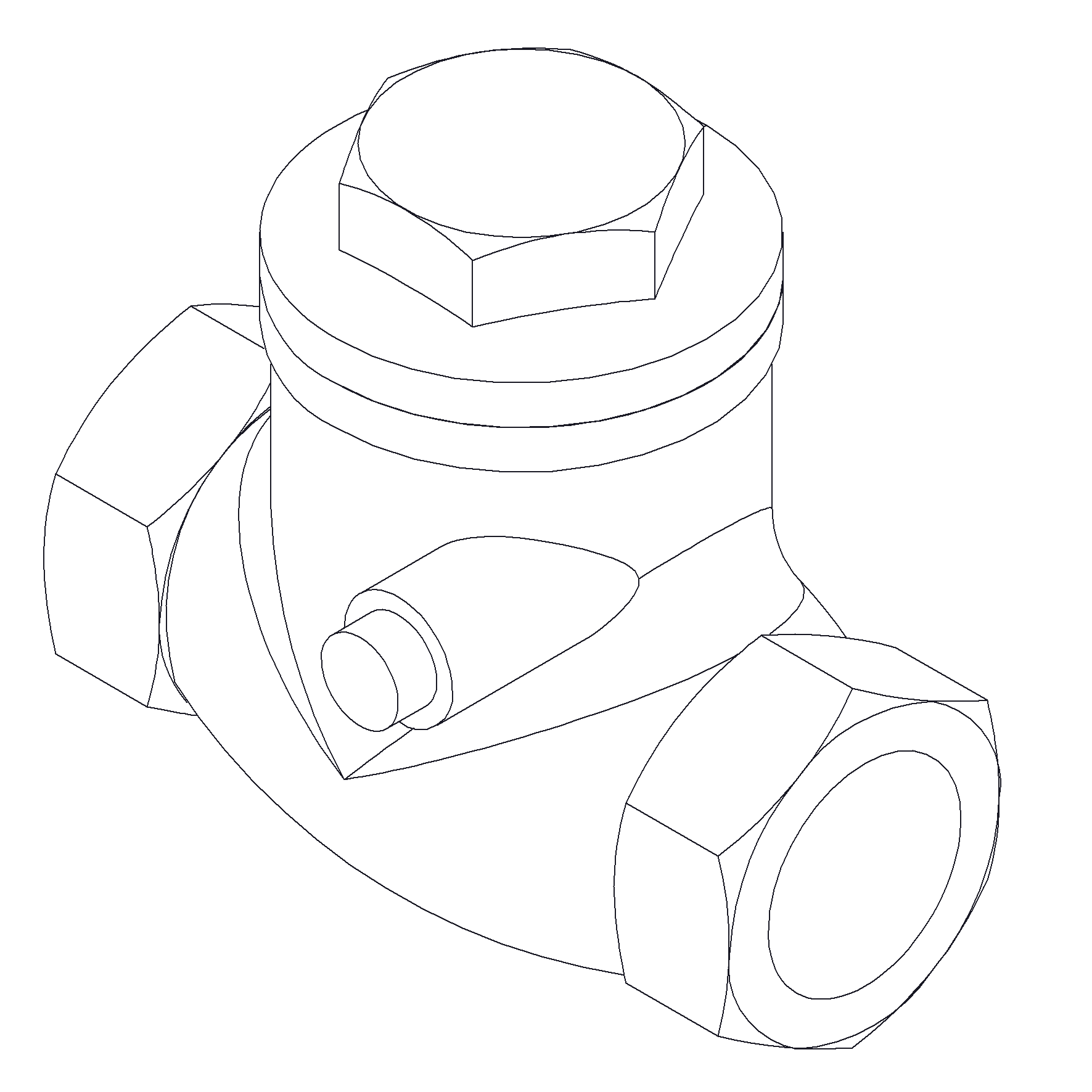

Swing Check Valve ½" 200WOG
Details
Stainless Steel body swing check valve with metal sealing. Screwed cover. BSPP female threaded ends.
More Information
| Price View | Price Range |
|---|---|
| Product Group | 304291 |
| Material Body | Stainless Steel, 316 |
| Throughput Direction | Straight |
| End Standard | ISO 228-1 |
| Standard | DIN |
| Application | Boiler feedwater, Cargo oil, Condensate, Corrosive fluids, Flammable hydraulic oil, Fuel oil, Lubricating oil, Sea water, Water |
| Size | 15 |
| Material Disc | Stainless Steel, 316 |
| Pressure Rating | 200WOG |
| End Type | Threaded |
| Sub Category | CHECK |
| Item Number | 60-00000023 |
| Category | Valve |
Partslist and details

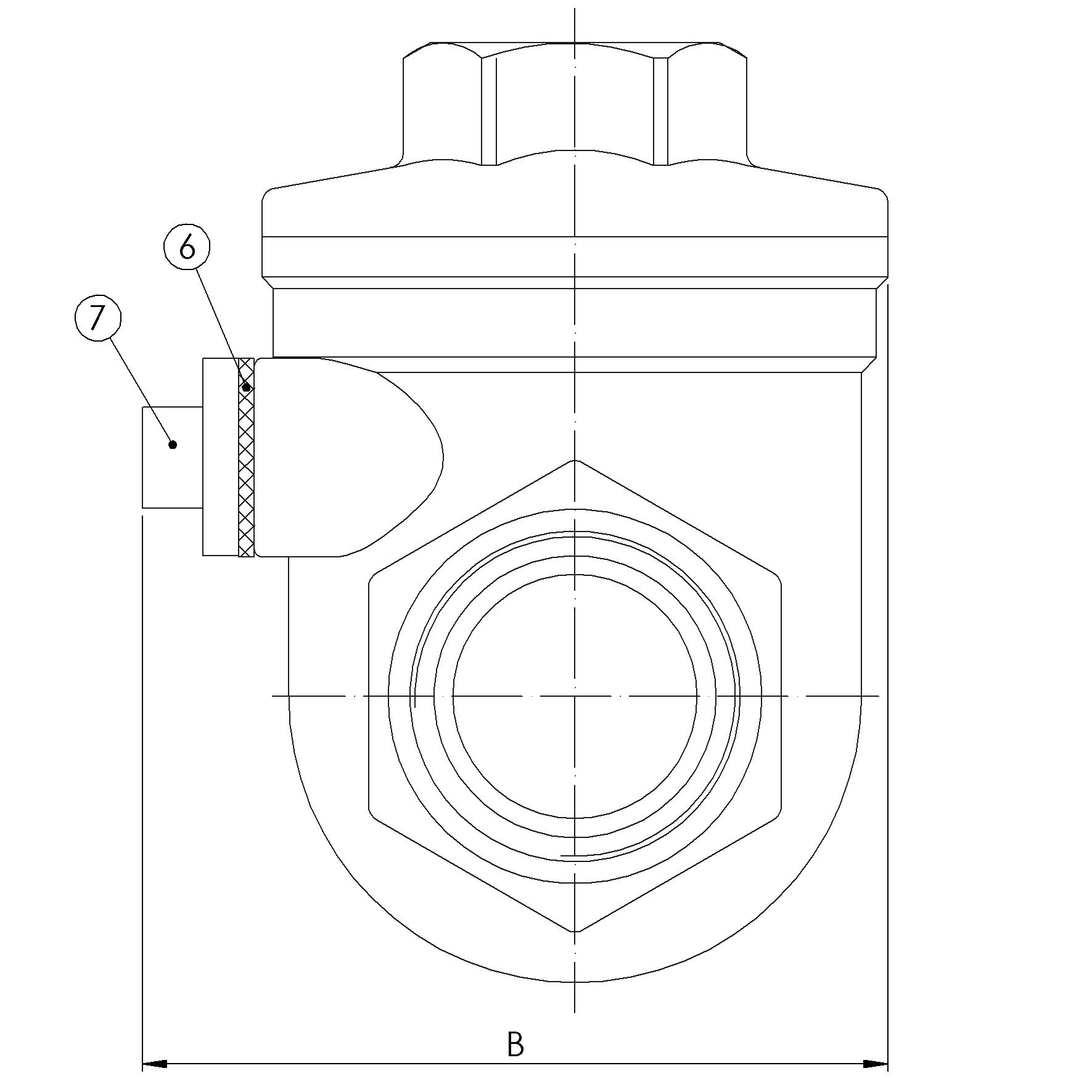

PARTSLIST
| No | Part | Material | Code |
|---|---|---|---|
| 2 | Cap | Stainless Steel | CF8M |
| 3 | Disc | Stainless Steel | CF8M |
| 4 | Gasket | PTFE | |
| 5 | Plug | Stainless Steel | SUS316 |
| 6 | Gasket | PTFE | |
| 7 | Stopper | Stainless Steel | SUS304 |
| 1 | Body | Stainless Steel | CF8M |
DETAILS
| DN | Pressure Rating Id | L | Kg | Inch | H | Ø A | B |
|---|---|---|---|---|---|---|---|
| 15 | 200 | 65 | 0.3 | 1/2" | 43 | 16 | 46.5 |
